The following example is for when Size is UINT#3.
• Use the same data type for In1[], In2[], and AryOut[].
• If the subtraction results exceed the valid range of AryOut[], the elements of AryOut[] will contain ille-
gal values. An error will not occur. Corruption will not occur in the data in the memory area adjacent
to those elements.
• The values in AryOut[] do not change if the value of Size is 0.
• Return value Out is not used when the instruction is used in ST.
• An error occurs in the following cases. ENO will be FALSE, and AryOut[] will not change.
• In1[], In2[], and AryOut[] have different data types.
• The value of Size exceeds the array range of In1[], In2[], or AryOut[].
Precautions for Correct Use

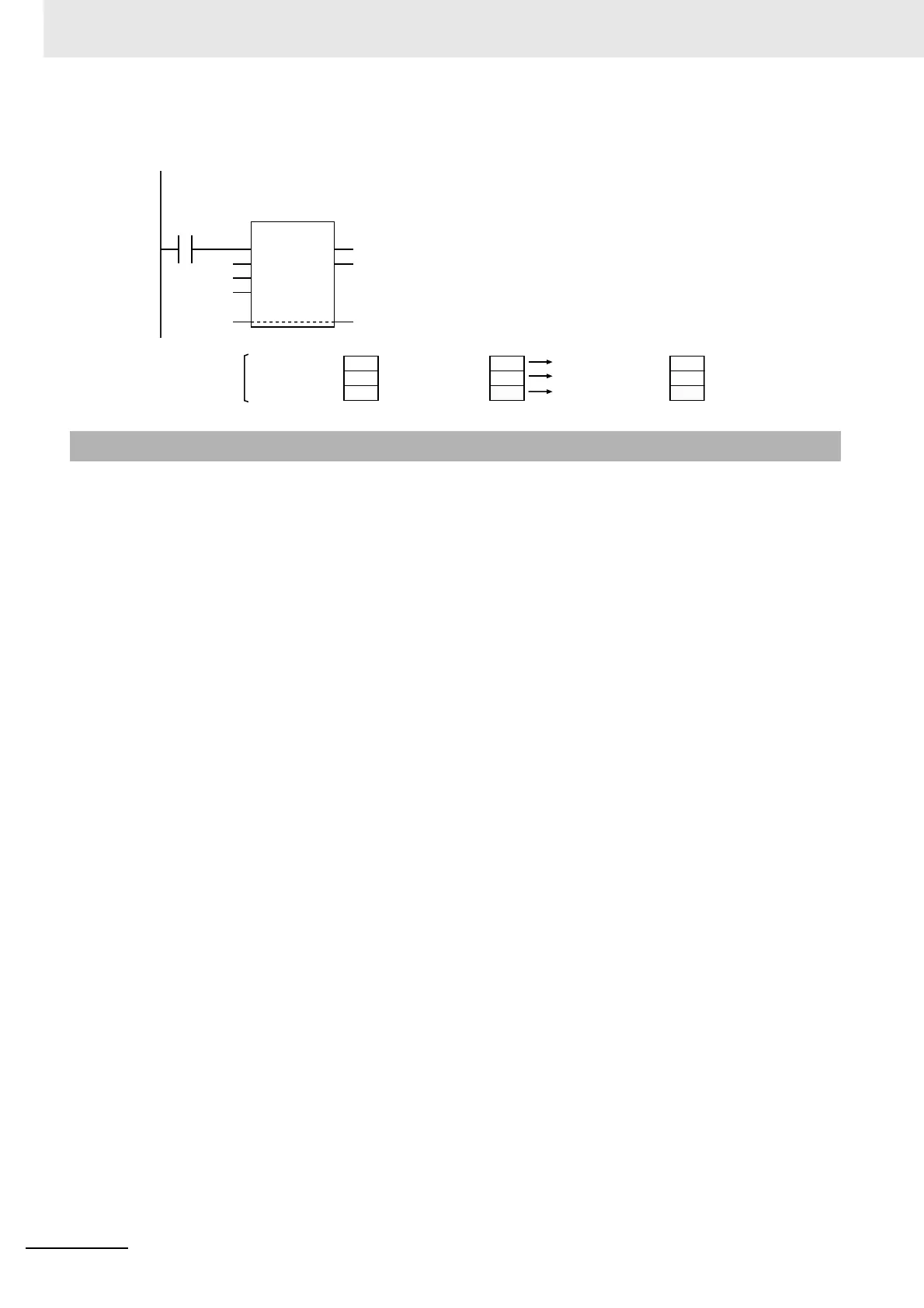

ArySub(abc[1], def[2], UINT#3, ghi[3]);
LD ST
UINT#3
abc[1]
def[2]
ghi[3] ghi[3]
ArySub
EN ENO
In1
In2
Size
AryOut
In1[0]=abc[1]
In1[1]=abc[2]
In1[2]=abc[3]
12
23
34
In2[0]=def[2]
In2[1]=def[3]
In2[2]=def[4]
-
-
-
AryOut[0]=ghi[3]
AryOut[1]=ghi[4]
AryOut[2]=ghi[5]
1
2
3
11
21
31
Size=UINT#3
