• If autotuning is performed and the value of MV is 100%, the output is immediately turned ON regard-
less of the control period.

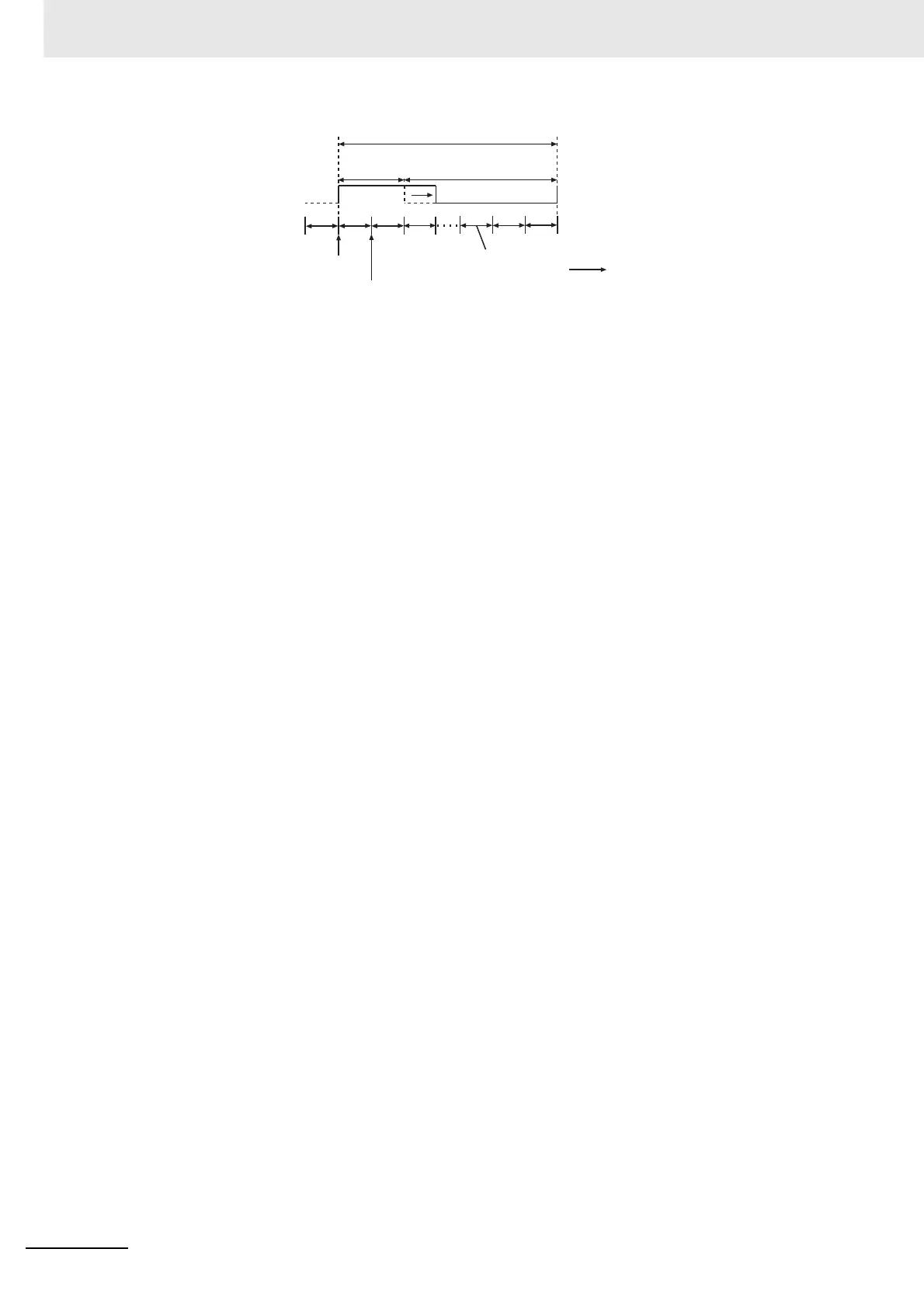

200 ms 800 ms
PID processing
100-ms period
1-s period
Output control value
Time
MV at this point: 20%
ON
OFF
MV at this point: 30%
The output control values are
immediately changed to turn the
output ON for 300 ms and OFF
for 700 ms.
