2 Instruction Descriptions
2-688
NJ-series Instructions Reference Manual (W502)

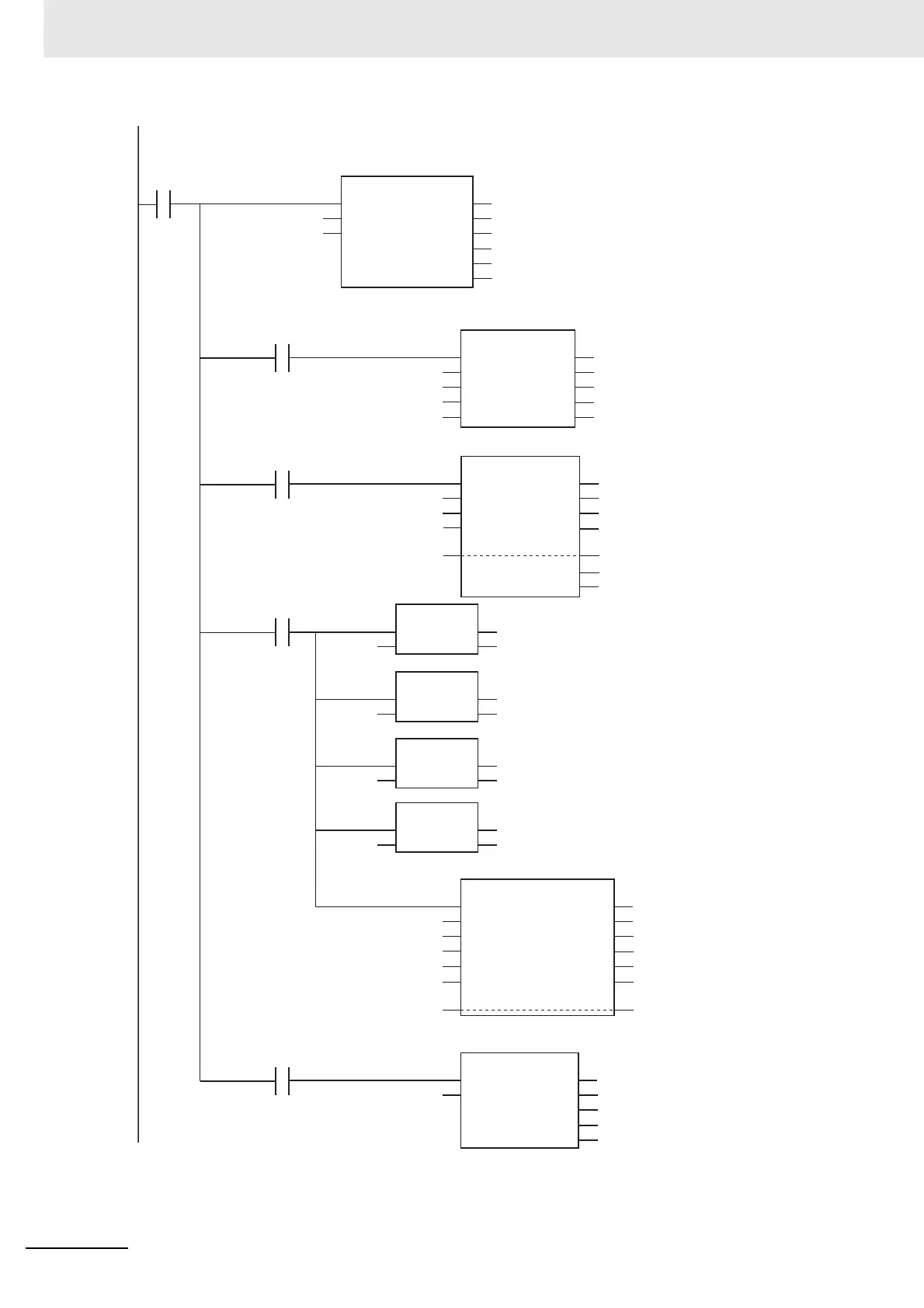

Instruction execution
Operating
‘02\192.168.250.2’
UINT#20
CIPWrite_instance.Done
CIPRead_instance.Done
CIPOpen_instance.Done
CIPSend_instance.Done
CIPOpen_instance.Handle
‘OriginalDat’
UINT#1
ReadDat
CIPOpen_instance.Handle
BYTE#16#0E
ReqPath
Dummy
UINT#0
ResDat
CIPOpen_instance.Handle
‘WritingDat’
UINT#1
WriteDat
CIPOpen_instance.Handle
ReadDat
UINT#1 ReqPath.ClassID
CIPOpen
CIPOpen_instance
Execute Done
RoutePath Busy
TimeOut Error
ErrorID
ErrorIDEx
Handle
CIPClose
CIPClose_instance
Execute Done
Handle Busy
Error
ErrorID
ErrorIDEx
CIPWrite
CIPWrite_instance
Execute Done
Handle Busy
DstDat Error
Size ErrorID
SrcDat ErrorIDEx
@MOVE
EN ENO
In Out
UINT#1 ReqPath.InstanceID
@MOVE
EN ENO
In Out
TRUE ReqPath.isAttributeID
@MOVE
EN ENO
In Out
UINT#7 ReqPath.AttributeID
@MOVE
EN ENO
In Out
CIPSend
CIPSend_instance
Execute Done
Handle Busy
ServiceCode Error
RqPath ErrorID
ServiceDat ErrorIDEx
Size RespSize
RespServiceDat
CIPRead
CIPRead_instance
Execute Done
Handle Busy
SrcDat Error
Size ErrorID
DstDat
ErrorIDEx
RcvSize
