2 Instruction Descriptions
2-68
NJ-series Instructions Reference Manual (W502)

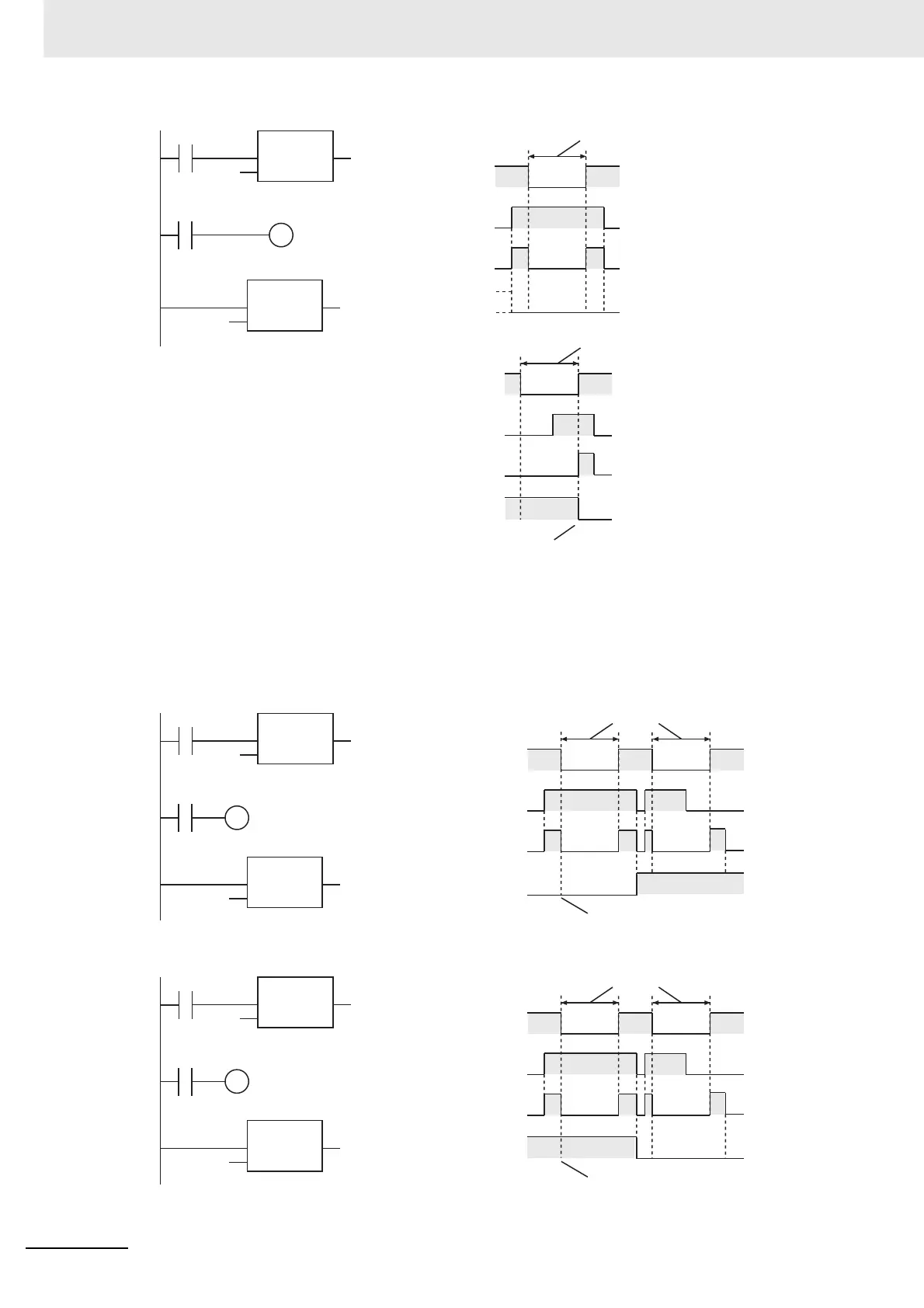

z Set and Reset with Input Downward Differentiation Specification
When the master control is reset, the execution condition changes to FALSE. If the previous execu-
tion condition was TRUE, then the input downward differentiation condition is met. However, during
the master control reset, the previous output value is retained, so as a result the value of the output
is retained.
A
UINT#1
UINT#1
B
MC
In ENO
MCNo
MCR
EN ENO
MCNo
MC_ON
A
B
MC_ON
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
Master control reset
Output from
LD instruction
MC_ON
A
B
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
Master control reset
Output from
LD instruction
PR
Here, the input upward differentiation condition is met
and the output value changes to FALSE.
A
UINT#1
UINT#1
MC
In ENO
MCNo
MCR
EN ENO
MCNo
MC_ON
A
B
MC_ON
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
Master control reset
Output from
LD instruction
B
NS
The input downward differentiation
condition is met, but master control is
reset, so the output is retained.
A
UINT#1
UINT#1
MC
In ENO
MCNo
MCR
EN ENO
MCNo
MC_ON
A
B
MC_ON
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
Master control reset
Output from
LD instruction
B
NR
The input downward differentiation
condition is met, but master control
is reset, so the output is retained.
