2 Instruction Descriptions
2-722
NJ-series Instructions Reference Manual (W502)

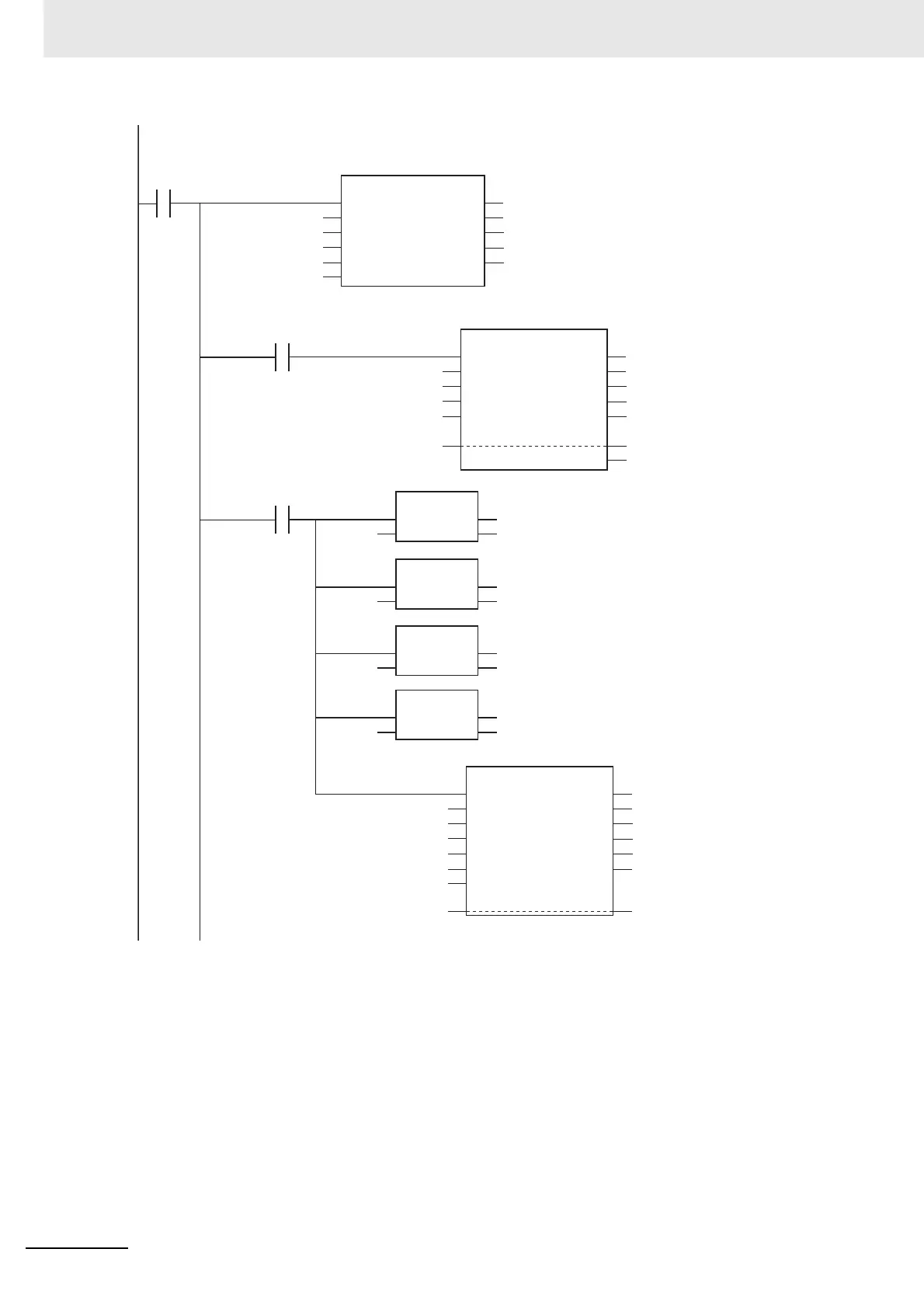

Instruction execution
Operating
CIPUCMMRead_instance.Done
CIPUCMMWrite_instance.Done
‘02\192.168.250.2’
UINT#20
‘WritingDat’
UINT#1
WriteDat
‘02\192.168.250.2’
UINT#20
‘OriginalDat’
UINT#1
ReadDat
‘02\192.168.250.2’
UINT#20
BYTE#16#0E
ReqPath
Dummy
UINT#0
ResDat
ReadDat
UINT#1 ReqPath.ClassID
@MOVE
EN ENO
In Out
UINT#1 ReqPath.InstanceID
@MOVE
EN ENO
In Out
TRUE ReqPath.isAttributeID
@MOVE
EN ENO
In Out
UINT#7 ReqPath.AttributeID
@MOVE
EN ENO
In Out
CIPUCMMWrite
CIPUCMMWrite_instance
Execute Done
RoutePath Busy
TimeOut Error
DstDat ErrorID
Size ErrorIDEx
SrcDat
CIPUCMMRead
CIPUCMMRead_instance
Execute Done
RoutePath Busy
TimeOut Error
SrcDat ErrorID
Size ErrorIDEx
DstDat
RcvSize
CIPUCMMSend
CIPUCMMSend_instance
Execute Done
RoutePath Busy
TimeOut Error
ServiceCode ErrorID
RqPath ErrorIDEx
ServiceDat RespSize
Size
RespServiceDat
