4.5 Keypad Operation
136 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
4. Push or to select [Parameter Backup/Restore], then push .
5. Push or to select the items to back up, then push .
6. Push or to select [Bck (Drive → OPE)], then push .
7. Push or to select a memory location, then push .
The keypad shows “End” when the backup procedure completes successfully.
◆ Write Backed-up Parameters to the Drive
You can back up parameters on the keypad and write them to different drives.
Note:
• Always stop the drive before you start to restore the parameter backups.
• The drive rejects Run commands while it is restoring parameters.
1. Push ( ) to show the HOME screen.
Note:
• [ Home] appears in the upper right hand corner of the screen when in HOME mode.
• If [ ] is not shown on , push ( ) to show [ ] on .
2. Push ( ).
3. Push or to select [Configuration], then push .
4. Push or to select [Parameter Backup/Restore], then push .
5. Push or to select the item to restore, then push .
6. Push or to select [Res (OPE → Drive)], then push .
7. Push or to select the backed-up parameter data, then push .
The keypad will show the "End" message when the write process is complete.
Note:
Different settings and conditions will change the keypad display.

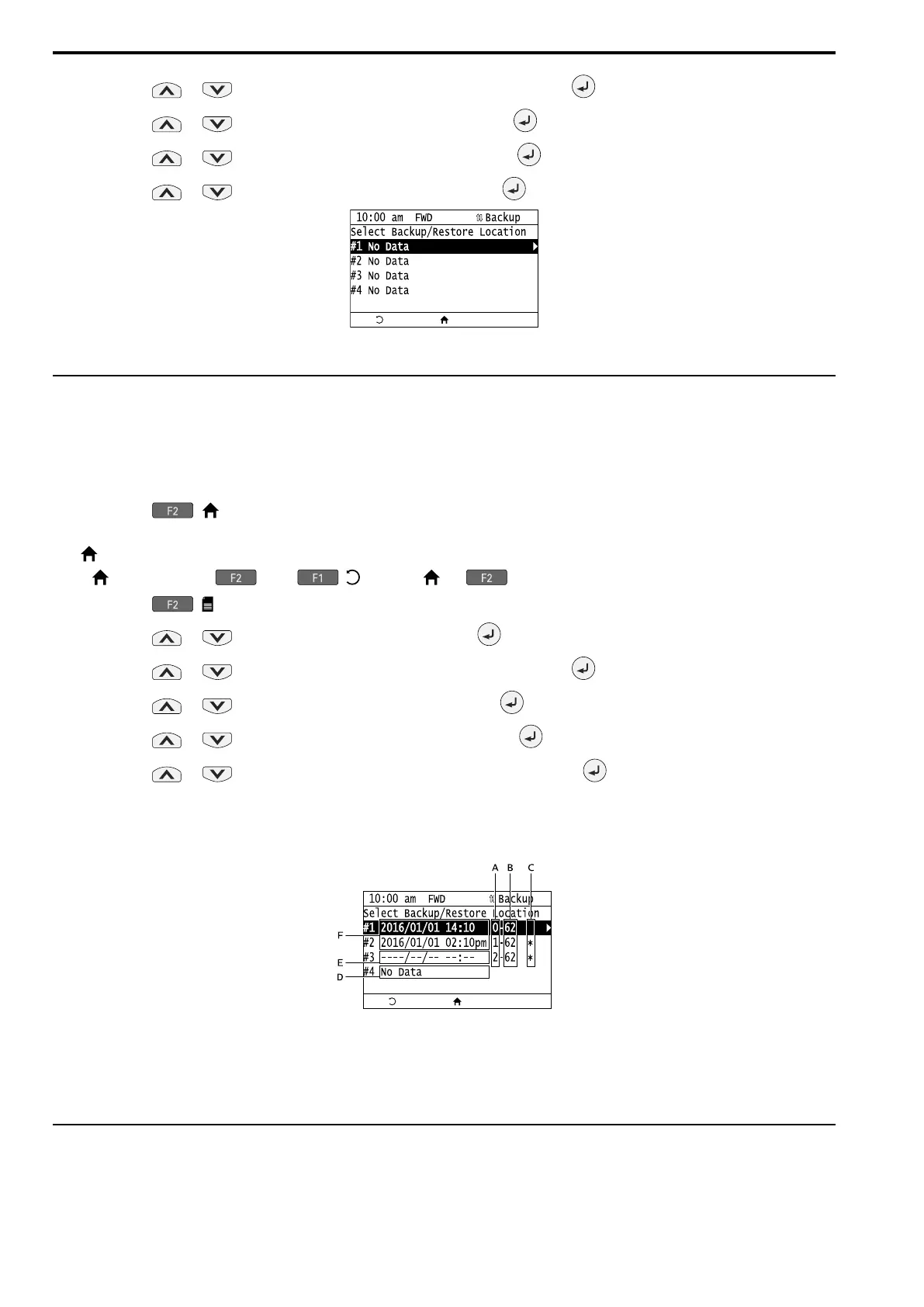

A - A1-02 [Control Method] settings
B - o2-04 [Drive KVA Selection]
settings (2 or 3 digits)
C - Presence of Q2pack parameter
backup
D - Parameter backup data is not
registered
E - Backup data does not contain the
date information
F - Backup date
◆ Verify Keypad Parameters and Drive Parameters
This procedure verifies that the parameter setting values that were backed up in the keypad agree with the
parameter setting values in the drive.
To Next Page
