Mechanical Installation
2
2.6 Install the Keypad to a Control Panel or Another Device
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 37
2.6 Install the Keypad to a Control Panel or Another Device
You can remove the keypad from the drive and connect it to a remote control extension cable 3 m (9.8 ft) long to
make operation easier when you cannot access the drive. You can operate a drive that is in a control panel without
opening or closing the control panel door. To order optional accessories, contact the manufacturer or your nearest
sales representative.
◆ Connect the Keypad from a Remote Location
Use the information in following table to install the keypad in the best location for your application.
Table 2.1 Keypad Installation Method
Installation Method Description Required Tools and Installation Support Sets
Outside the control panel
Simplified installation is possible. Separately sold installation support
sets are not necessary.
Phillips screwdriver #2 (M3)
Inside the control panel Keypad does not extend farther than the front of the control panel.
• Phillips screwdriver #2 (M3, M4)
• Installation support set A (for mounting with screws, model: 900-
192-933-001)
• Phillips screwdriver #2 (M3)
• Wrench (M4)
• Installation support set B (for mounting with nut clamp, model:
900-192-933-002)
Installation support sets are sold separately. If there are weld studs inside the control panel, use installation
support set B.
NOTICE: Do not let unwanted objects, for example metal shavings or wire clippings, fall into the drive during drive installation
and project construction. Put a temporary cover over the top of the drive during installation. Remove the temporary cover before
start-up or the drive will overheat. Failure to obey can cause damage to the drive.
◆ Install Outside of Control Panel
1.
Use the panel cut-out dimensions to cut an opening in the control panel for the keypad.

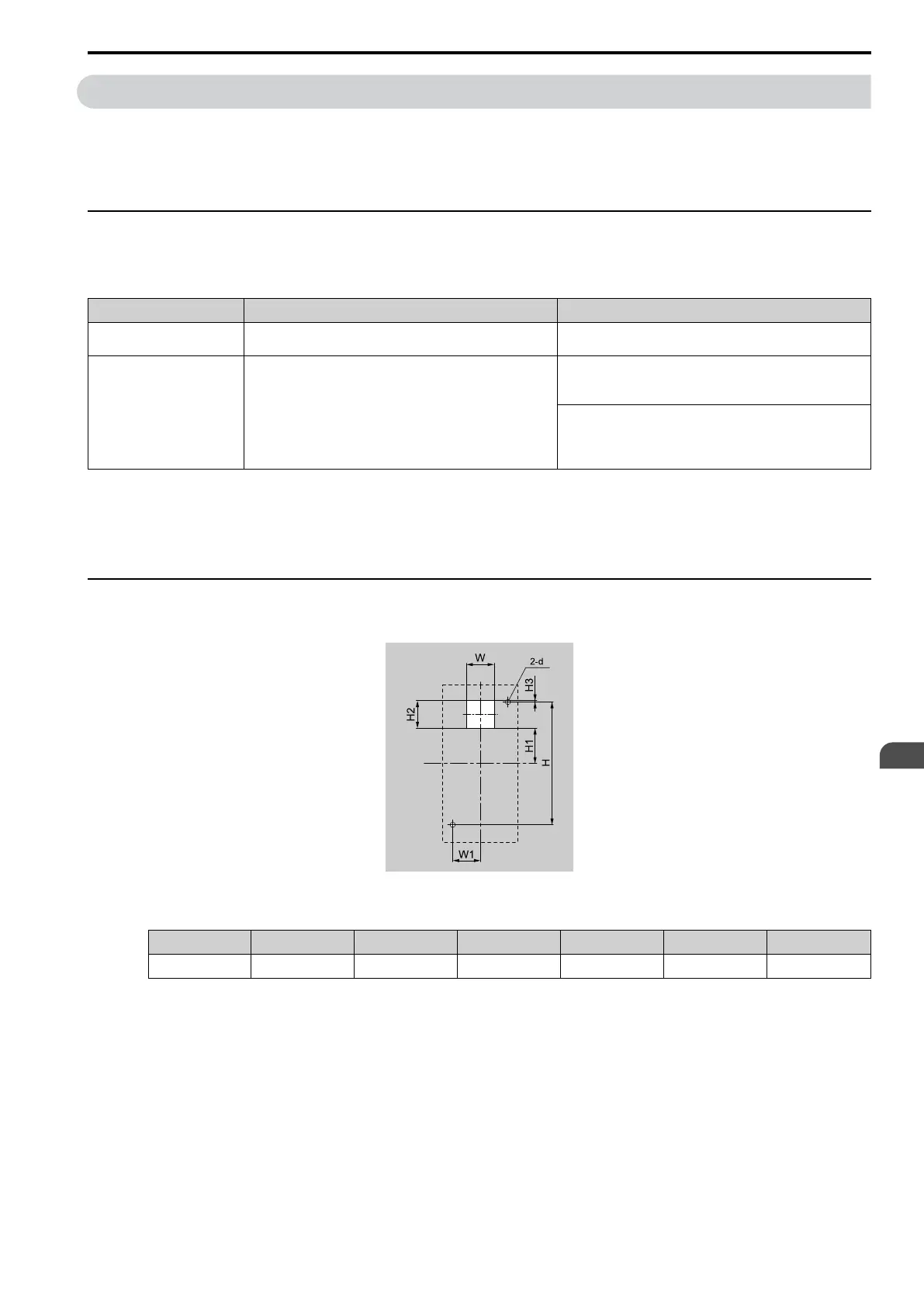

Figure 2.10 Panel Cut-Out Dimensions to Attach Outside of Control Panel
Table 2.2 Panel Cut-out Dimensions mm (in.)
W H W1 H1 H2 H3 d
22 (0.89) 78 (3.07) 22 (0.89) 29 (1.14) 22 (0.89) 1 (0.04) 3.6 (0.14)
2. Remove the keypad and put the keypad connector in the holder on the front cover.
Note:
Insert the end of the keypad connector that has the tab.
To Next Page
