Omron Q2A Series Technical Manual

Specifications
10
10.7 Knock-Out Hole Dimensions (UL Type 1)
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 387
◆ 4208 to 4296

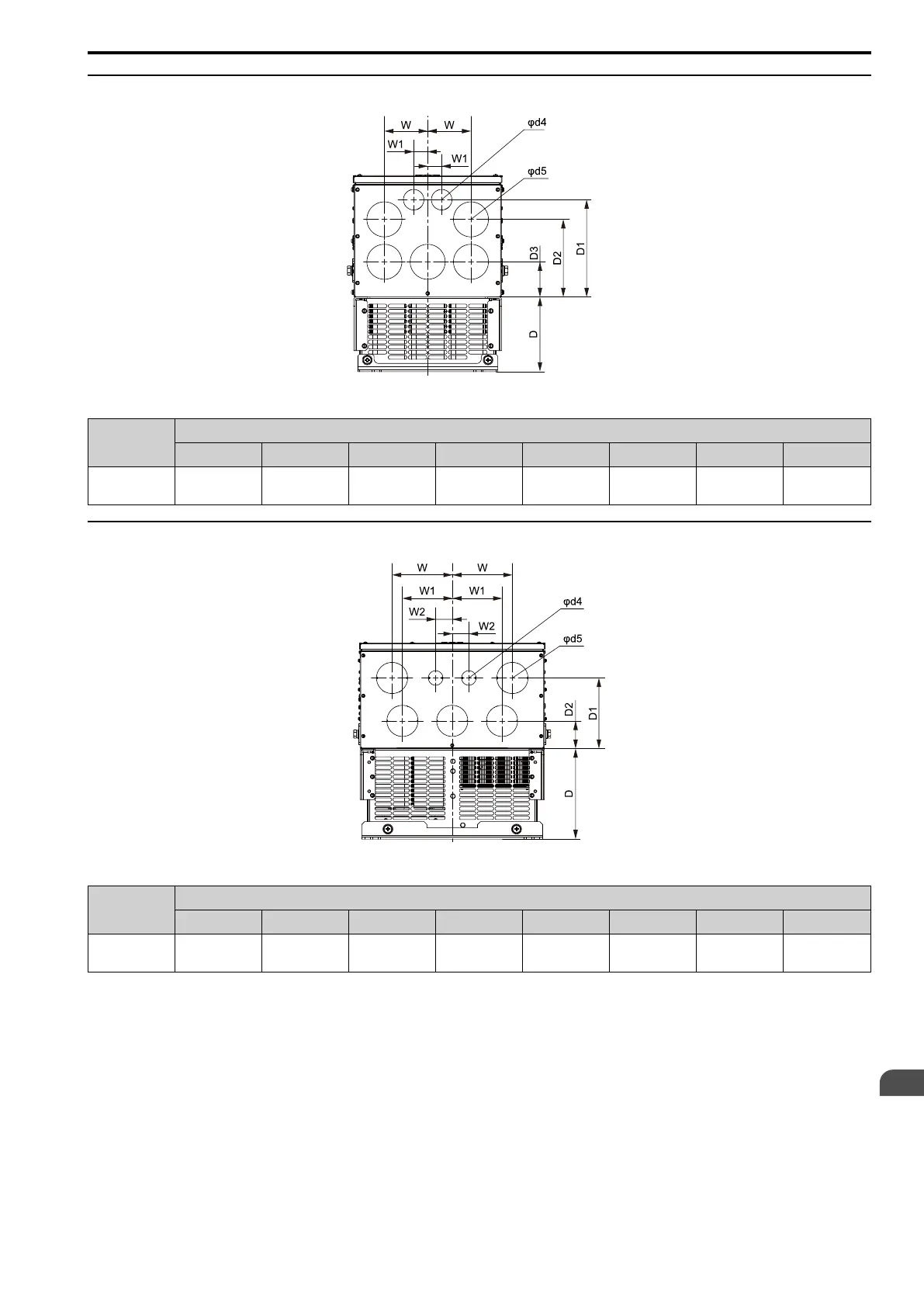

Figure 10.24 Knock-Out Dimensions Diagram 8 (Models: 4208, 4250, and 4296)
Model
Dimensions mm (in.)
D D1 D2 D3 W W1 φd4 φd5
4208, 4250, 4296
160
(6.30)
208.4
(8.20)
166.3
(6.55)
75.3
(2.96)
92.8
(3.65)
27.5
(1.08)
35
(1.38)
62
(2.44)
◆ 4371
Figure 10.25 Knock-Out Dimensions Diagram 9 (Models: 4371)
Model
Dimensions mm (in.)
D D1 D2 W W1 W2 φd4 φd5
4371
218
(8.58)
170
(6.69)
66.6
(2.62)
145
(5.71)
40
(1.57)
120
(4.72)
35
(1.38)
75
(2.95)
