Chapter 9: Installing, Removing, and Replacing Components
Installing the Library in a Desktop Kit
248 Quantum Scalar i40 and Scalar i80 User’s Guide

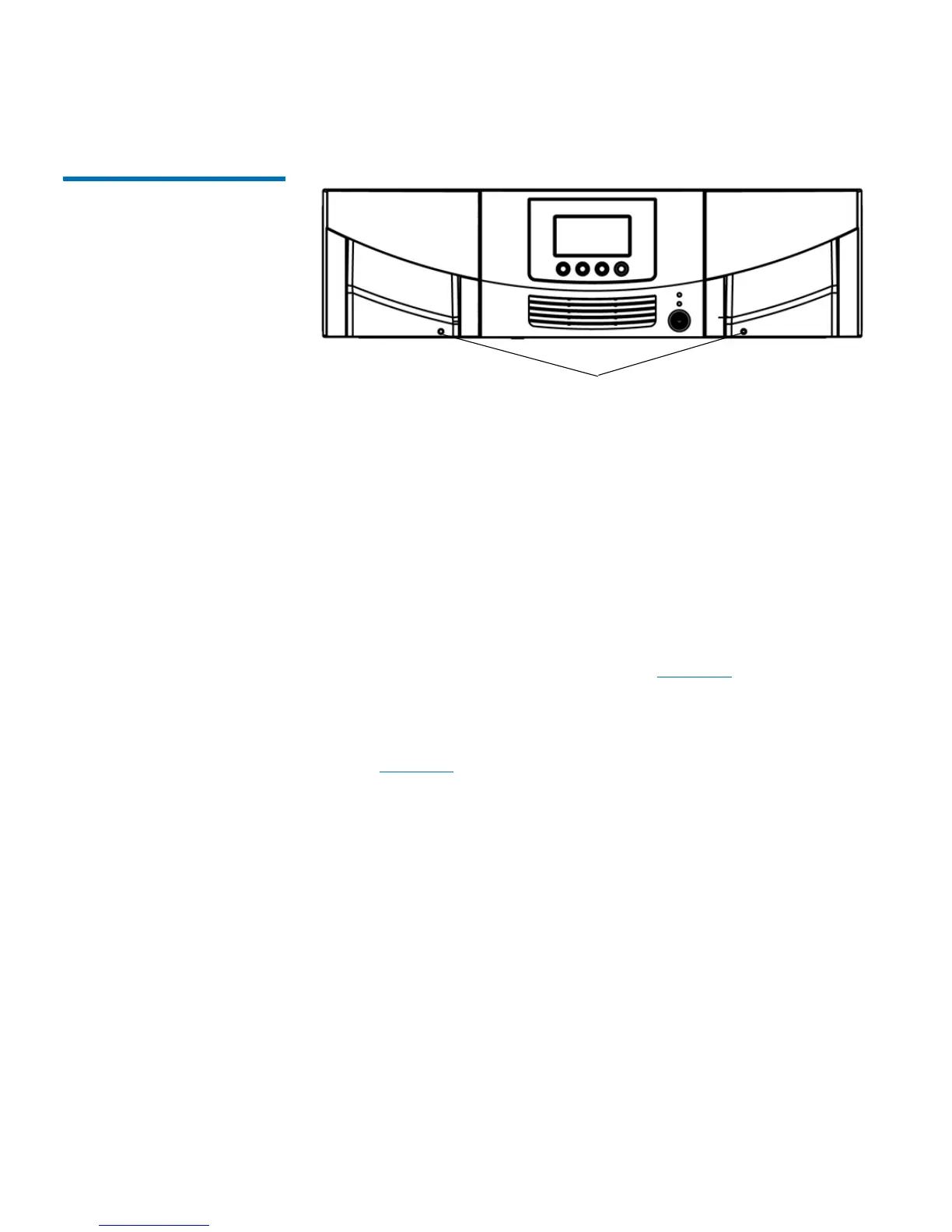

Figure 53 Magazine Release
Latch Access Holes
4 Look through the magazine slot openings to be sure the Y-tray is
resting on the floor of the library. If not, reach inside and gently
press down on one of the Y-tray’s side metal rods until the Y-tray
starts moving. It should drift down to rest on the floor of the library.
5 T
urn the library carefully on its side (either the left or right side).
Make sure the front end of the library (the “rack ear”) overhangs the
edge of the table so that the library lies flat.
6 Install the eight rubber
feet on the bottom of the library, as follows:
a There are eight holes
in the bottom of the library into which you
will press the rubber feet. Four holes are located along the right
edge and four along the left edge. Figure
54 shows the
locations of these holes.
b Use your fingers
to press the feet into the holes. Twisting the
feet as you push them may make it easier to get them in. See
Figure
54 on page 249.
c Car
efully turn the library back to an upright position so that it is
resting on its rubber feet.
