122
2 Press the [RSZR] button, turning it on.
3 Set the following parameters.
a) When rotation direction is selected using the [ROT X] button.
b) When rotation direction is selected using the [ROT Y] button.
4 Select the direction of rotation.
Press the [PAGE] button to display the page 2/3 setting
buttons, then press the [ROT X] button or [ROT Y]
button, turning it on.
5 Set the following parameters.
When the [ROT X] button is selected
When the [ROT Y] button is selected

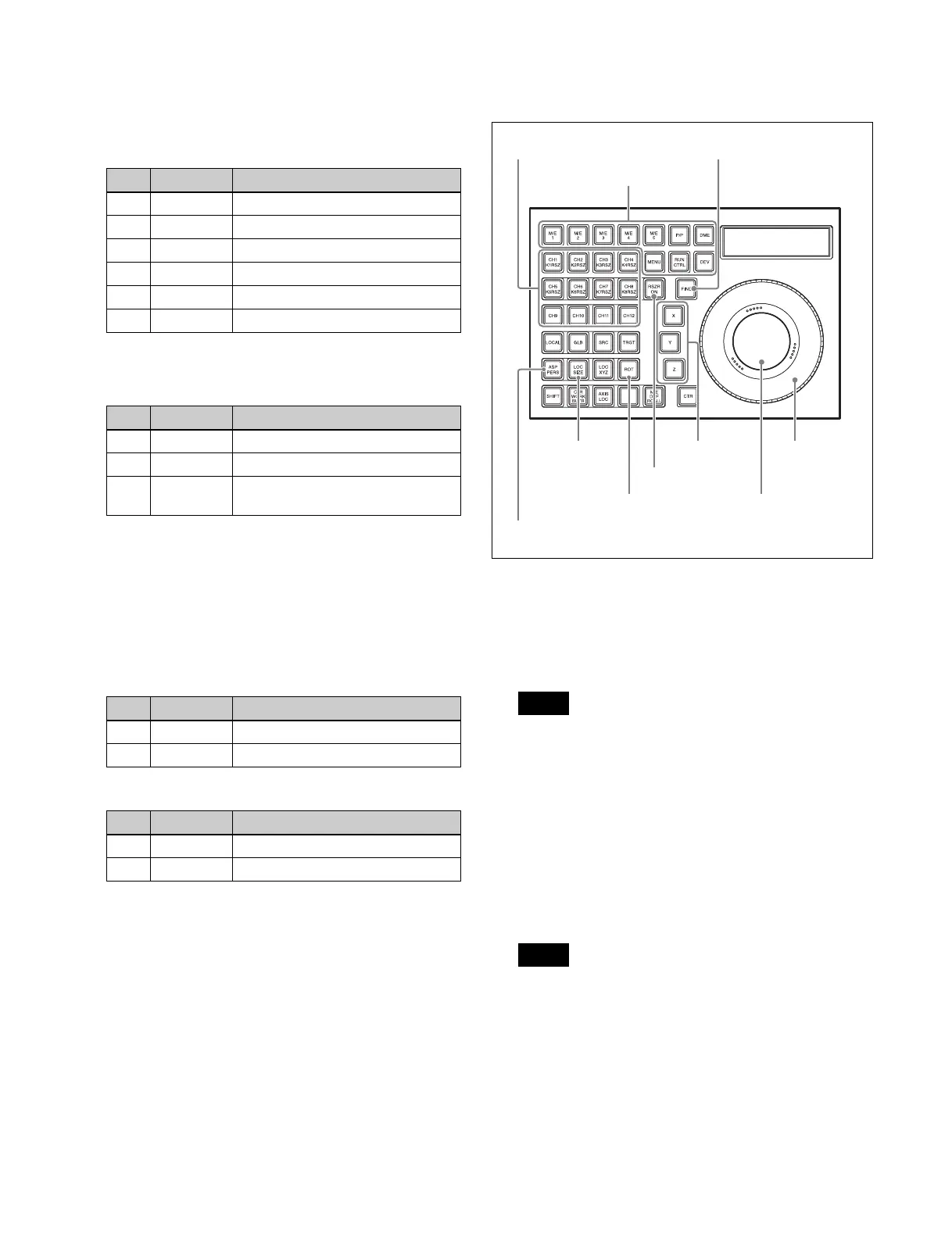

Reducing, enlarging, rotating, and moving
keys (device control block)
Device control block (trackball)
1 Press the [M/E1] button.
The [M/E1] button turns on green, and the M/E-1 bank
switches to resizer operation mode.
• Pressing the [M/E1] to [M/E5] and [P/P] mode
selection buttons switches the selected bank to
resizer operation mode.
• You can select more than one button. The first
selected button becomes the reference, and is lit
green. Subsequent selected buttons are lit amber.
2 Press the [K1RSZ] button.
The [K1RSZ] button turns on green, and key 1
becomes the target of resizer operation.
• The [K1RSZ] to [K8RSZ] channel selection buttons
correspond to key 1 to key 8.
• You can select more than one button. The first
selected button becomes the reference, and is lit
green. Subsequent selected buttons are lit amber.
3 Press the [RSZR ON] button, turning it on.
The target resizer is enabled.
Parameter group [1/2]
No. Parameter Adjustment
1 LOC X Horizontal key movement
2 LOC Y Vertical key movement
3 SIZE Key reduction/enlargement
4
a)
ROT X Horizontal key rotation
4
b)
ROT Y Vertical key rotation
5 PERS Perspective
Parameter group [2/2]
No. Parameter Adjustment
1 ASPECT X Change aspect ratio horizontally
2 ASPECT Y Change aspect ratio vertically
3 ASPECT R Change aspect ratio horizontally
and vertically simultaneously
No. Parameter Adjustment
1 ROT X Horizontal key rotation
4 PERS Perspective
No. Parameter Adjustment
2 ROT Y Vertical key rotation
4 PERS Perspective
Notes
Notes
Mode selection buttons
ASP PERS button
Z-ring
Trackball
LOC SIZE
button
RSZR ON button
ROT button
Channel selection buttons FINE button
X, Y, Z buttons
