For details, see “Setting Parameters” (page 56).
f Z-ring
This adjusts the parameters of items selected using the
operation buttons. It is also used for keyframe effect
timeline operations, playback of devices and frame
memory clips, and so on.
Resizer operation mode
Changes the size, aspect ratio, and perspective of the key
to which the resizer is applied.
Three-dimensional transform operation mode
Adjusts the Z-axis of the three-dimensional transform.
Menu parameter operation mode
Adjusts menu parameter 3.
For details, see “Setting Parameters” (page 56).
Keyframe operation mode
Turn clockwise to run the keyframe effect in the normal
direction, and counterclockwise for the reverse direction.
You can operate the effect timeline, without affecting the
settings of buttons, such as the [EFF LOOP] and [STOP
NEXT KF] buttons, on the utility/shotbox control block.
VTR/disk recorder/frame memory operation
mode
This mode controls playback of VTRs/disk recorders and
frame memory clips.
Numeric Keypad Control Block
You use the numeric keypad control block for selecting
regions, for recalling and saving shotboxes, snapshots, and
keyframe effects, for recalling and creating macros, for
entering the transition rate, and for other tasks.
a Mode selection buttons
These buttons select the operation mode of the numeric
keypad control block.
b Region selection buttons
These buttons select the target region to control.
You can select more than one region. The first selected
button becomes the reference region, and is lit green.
Subsequent selected buttons are lit amber.

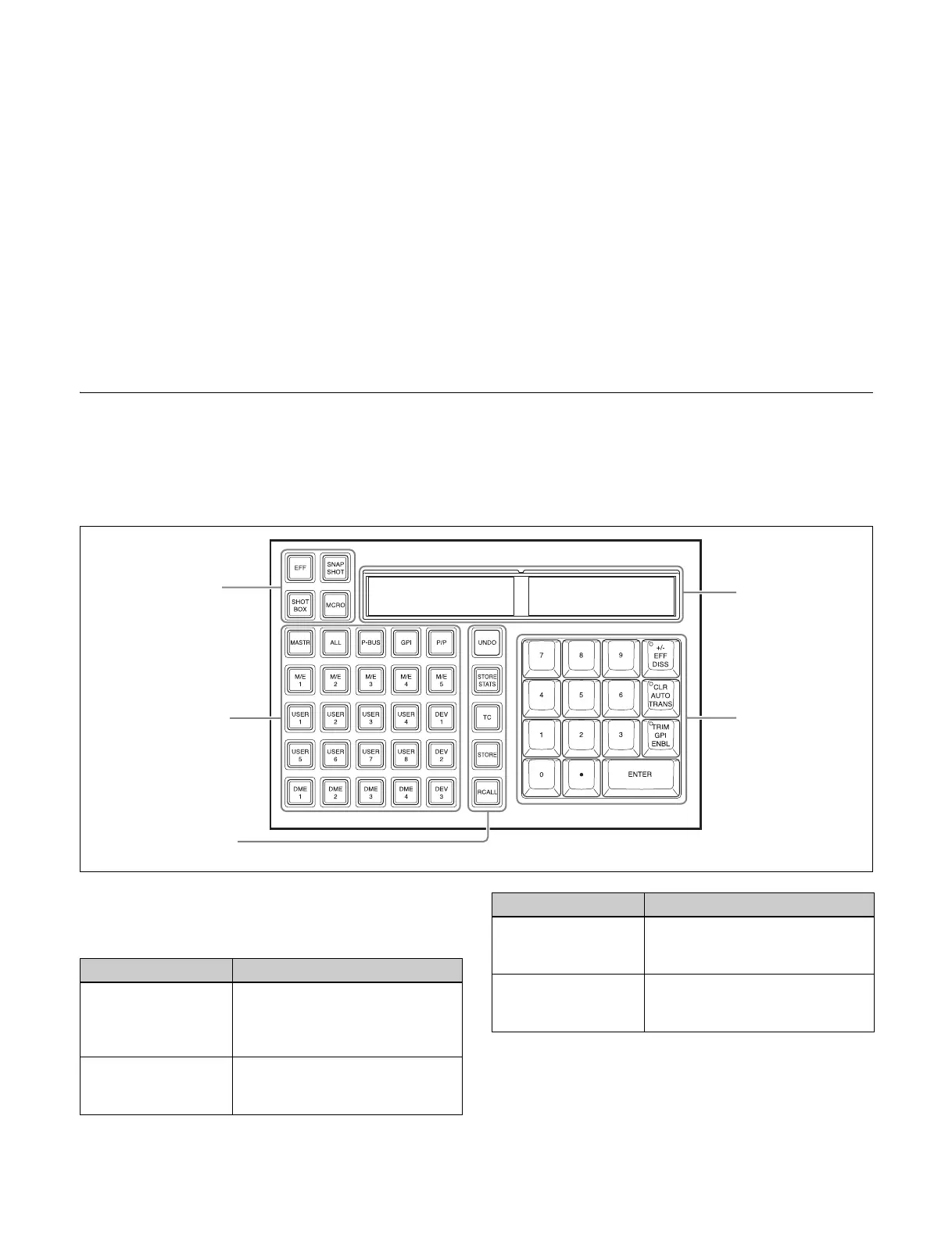

a Mode selection
buttons
e Numeric keypad
buttons
c Function selection
buttons
b Region selection
buttons
dDisplay
Button name Description
EFF (effect) • Switches to effect operation
mode.
• Recalls and saves keyframe
effects.
SNAPSHOT • Switches to snapshot operation
mode.
• Recalls and saves snapshots.
SHOTBOX • Switches to shotbox operation
mode.
• Recalls and saves shotboxes.
MCRO (macro) • Switches to macro operation
mode.
• Recalls, saves, and edits macros.
Button name Description
