139

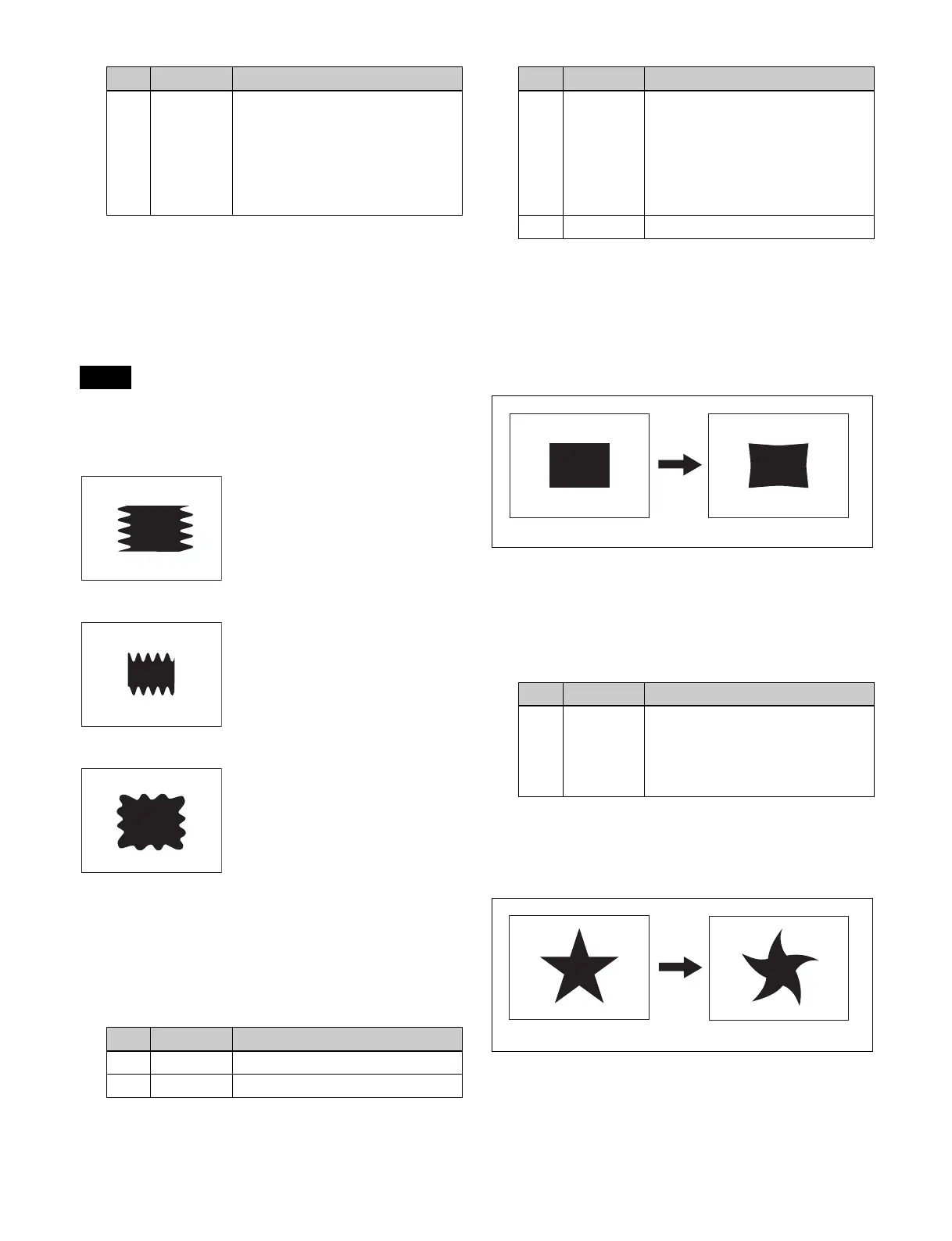

Applying modulation to a wipe pattern
(Modulation)
The pattern waveform signal can be modulated, creating
ripples in the horizontal, vertical, or radial direction along
the edges.
When the signal format is 1080PsF, modulation cannot be
used.
1
Open the M/E-1 >Wipe >Main Modify menu (1155).
2
In the <Modulation> group, select the modulation
type.
3
Set the following parameters.
a) 1: sine wave, 2: triangular wave, 3: rectangular wave
Applying barrel or pincushion distortion to
the edge of a wipe pattern (Spring)
As the transition progresses, the edge of the pattern is
subjected to barrel or pincushion distortion.
1
Open the M/E-1 >Wipe >Main Modify menu (1155).
2
Press [Spring], turning it on.
3
Set the following parameter.
Applying a spiral effect to a wipe pattern
(Spiral)
This transforms the pattern into a spiral pattern.
1
Open the M/E-1 >Wipe >Main Modify menu (1155).
2
Press [Spiral], turning it on.
3 V Offset Spacing in the vertical direction
• Negative values move the even-
numbered group up, and the odd-
numbered group down.
• Positive values move the even-
numbered group down, and the
odd-numbered group up.
Note
H (horizontal modulation)
This modulates the pattern in the
horizontal direction.
V (vertical modulation)
This modulates the pattern in the
vertical direction.
Fringe (radial modulation)
This modulates the pattern in the
radial direction.
No. Parameter Adjustment
1 Amplitude Amplitude of modulation
2 Frequency Frequency of modulation
No. Parameter Adjustment
3 Speed Speed of ripples
• Negative values create waves in
the down, left, and
counterclockwise directions.
• Positive values create waves in
the up, right, and clockwise
directions.
4 Shape Modulation waveform
a)
No. Parameter Adjustment
1 Gain Size and direction of the warp
• A value of –100 corresponds to
maximum inward warpage.
• A value of +100 corresponds to
maximum outward warpage.
No. Parameter Adjustment
Spring enabledSpring disabled
Spiral disabled Spiral enabled
