22
a Button rows
Used as cross-point buttons for selecting signals and
functions.
The 1st row buttons can also be used as 2nd row delegation
buttons (key/AUX bus delegation mode).

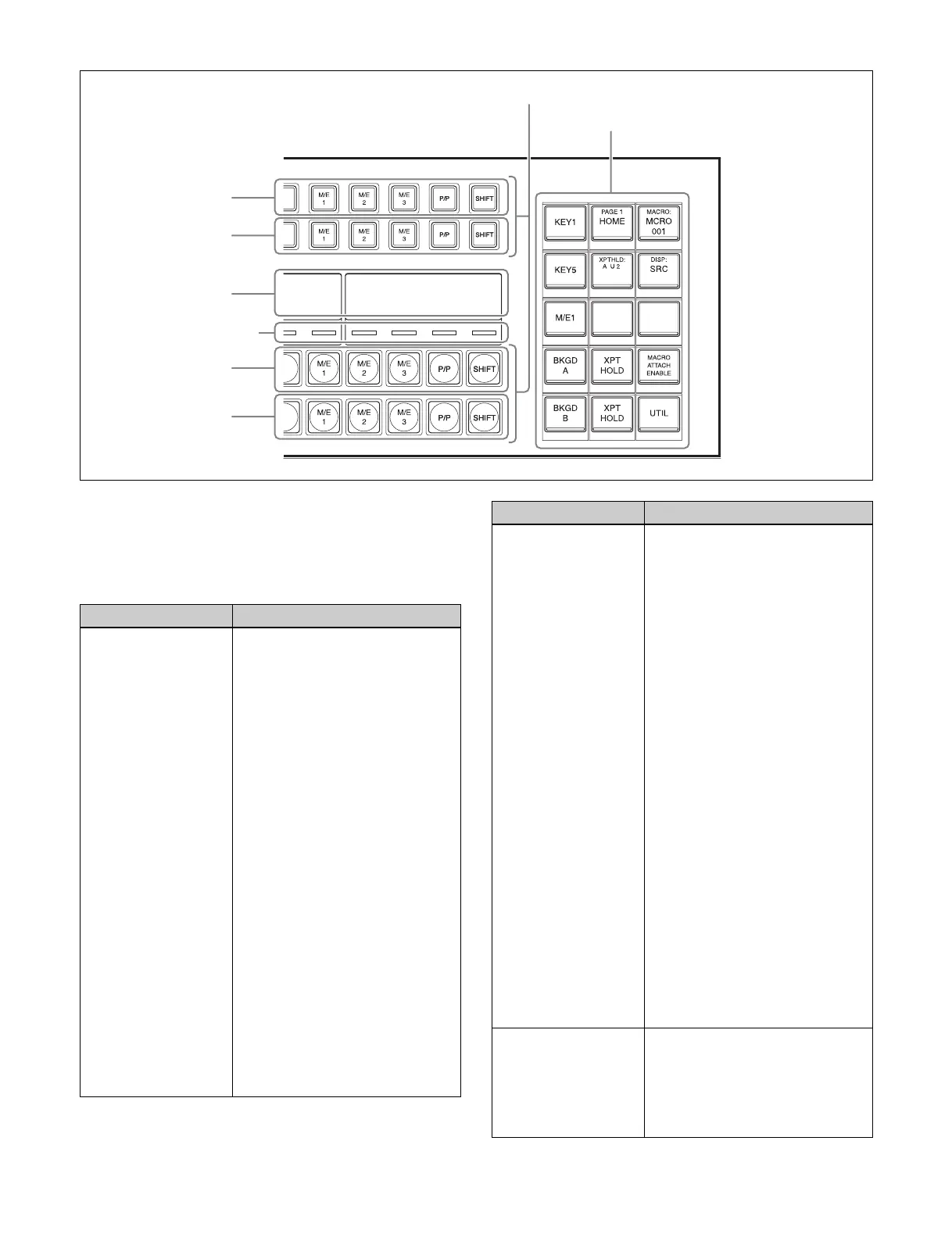

a Button rows
b Display
c Cross-point
indicators
d Cross-point pad
1st row
2nd row
3rd row
4th row
Name Description
1st row • Selects the following bus signals
selected using the cross-point
pad delegation buttons.
Key bus
a)
, utility bus, DME
external video bus, DME utility
bus
• Selects the following functions
when utility/shotbox bank is
selected using the cross-point
pad delegation buttons (utility/
shotbox mode).
b)
Utility command, menu shortcut,
macro recall, shotbox recall
• Selects the shifted signal on the
background A bus when the
[DUAL BKGD BUS] button of the
cross-point pad is lit (dual
background bus mode).
• Selects the DME external video
bus signal while the [UTIL] button
of the cross-point pad is pressed
(utility bus mode).
c)
• Selects the bus or utility/shotbox
bank when key/AUX bus
delegation mode is set.
For details, see “Key/AUX bus
delegation mode” (page 25).
2nd row • Selects the following bus signals
selected using the cross-point
pad delegation buttons.
Key bus
a)
, utility bus, DME
external video bus, DME utility
bus
• Selects the following functions
when utility/shotbox bank is
selected using the cross-point
pad delegation buttons (utility/
shotbox mode).
b)
Utility command, menu shortcut,
macro recall, shotbox recall
• Selects the shifted signal on the
background B bus when the
[DUAL BKGD BUS] button of the
cross-point pad is lit (dual
background bus mode).
• Selects the DME utility 1 bus or 2
bus signal while the [UTIL] button
of the cross-point pad is pressed
(utility bus mode).
c)
• Selects the bus signal or utility/
shotbox function selected by the
1st row delegation button when
key/AUX bus delegation mode is
set.
For details, see “Key/AUX bus
delegation mode” (page 25).
3rd row • Selects background A bus
signal.
• Selects the utility 1 bus signal
while the [UTIL] button of the
cross-point pad is pressed (utility
bus mode).
c)
Name Description
