Sony XVS Series User Manual

227
2 Set the following parameters, according to the selected
modulation mode.
When [H&V] is selected
When [Size] is selected
a) Set when [Lock] is enabled.
b) Set when [Lock] is disabled.
To stop the wave
Press [Lock], turning it on.
The wave alternately stops and starts each time the button
is pressed.
To select the waveform
1 Press [Form].
2 Set the following parameters.
When [H&V] is selected in the <Mode> group
When [Size] is selected in the <Mode> group
a) 1 (SINE): Sine wave
2 (PARABOLA): Parabolic wave
3 (TRIANGLE): Triangular wave
4 (RECTANGLE): Rectangular wave
5 (CIRCLE): Circular wave
6 (CUBIC): Cubic curve wave
To randomize the modulated waveform
1 Press [Random], turning it on.
Parameter group [1/2]
No. Parameter Adjustment
1 Amp H Amplitude of wave in horizontal
direction
2 Freq H Frequency of wave in horizontal
direction
3 Offset H
a)
Phase shift direction and offset of
wave in horizontal direction
4 Speed H
b)
Direction of travel and speed of
wave in horizontal direction
5 Slant Slant of wave
Parameter group [2/2]
No. Parameter Adjustment
1 Amp V Amplitude of wave in vertical
direction
2 Freq V Frequency of wave in vertical
direction
3 Offset V
a)
Phase shift direction and offset of
wave in vertical direction
4 Speed V
b)
Direction of travel and speed of
wave in vertical direction
5 Slant Slant of wave

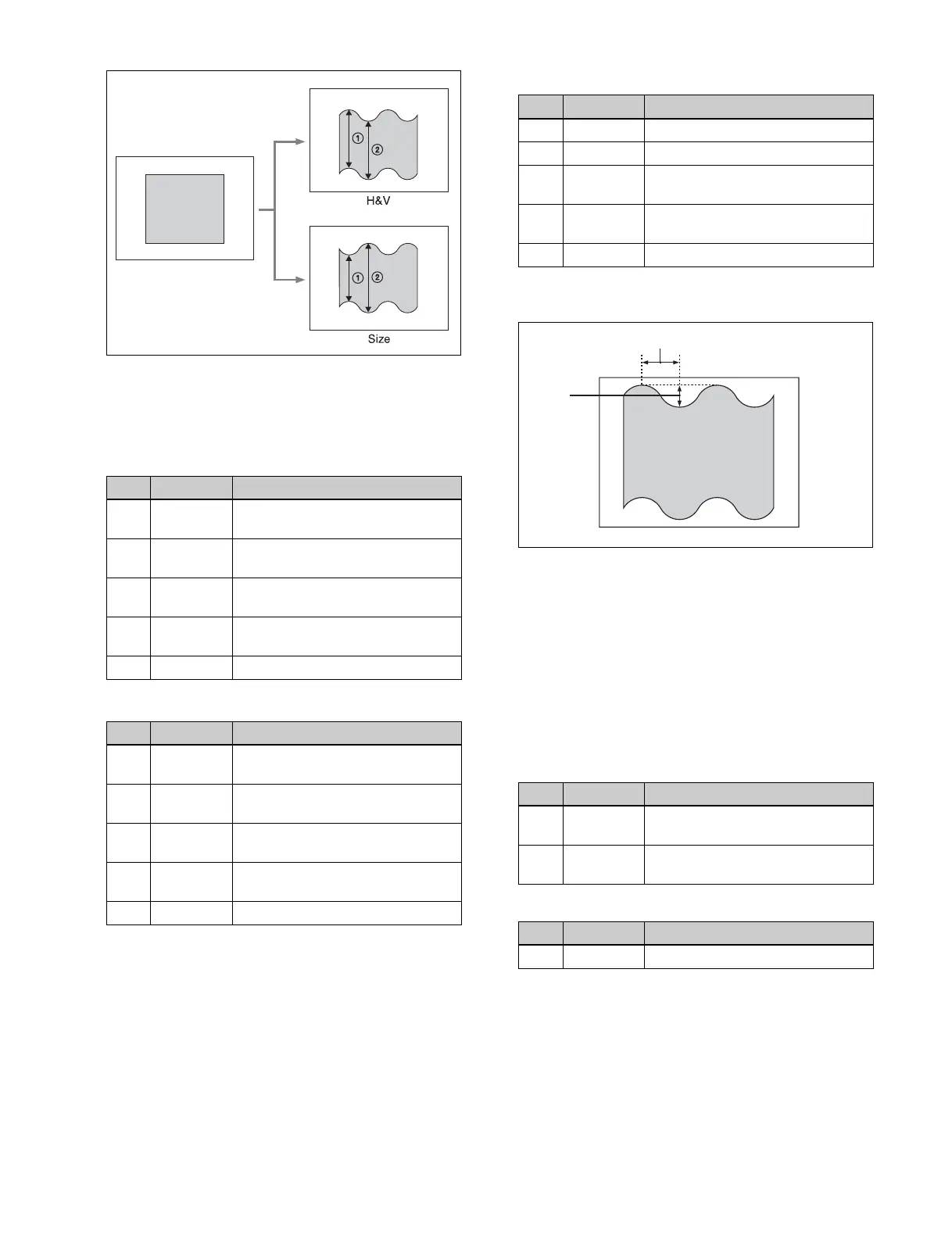

Before modulation
Create waves by reducing 1
and expanding 2 the image.
Modulation is not applied to Size.
1 and 2 are same size.
No. Parameter Adjustment
1 Amp H Amplitude of wave
2 Freq H Frequency of wave
3 Offset H
a)
Phase shift direction and offset of
wave in horizontal direction
4 Speed H
b)
Direction of travel and speed of
wave
5 Slant Slant of wave
No. Parameter Adjustment
1 Form H Type of waveform in horizontal
direction
a)
2 Form V Type of waveform in vertical
direction
a)
No. Parameter Adjustment
1 Form H Type of waveform
a)
Offset
Amp
