Sony XVS Series User Manual

245
Fix: The test sphere does not move, even if the DME
image moves.
Setting the light source

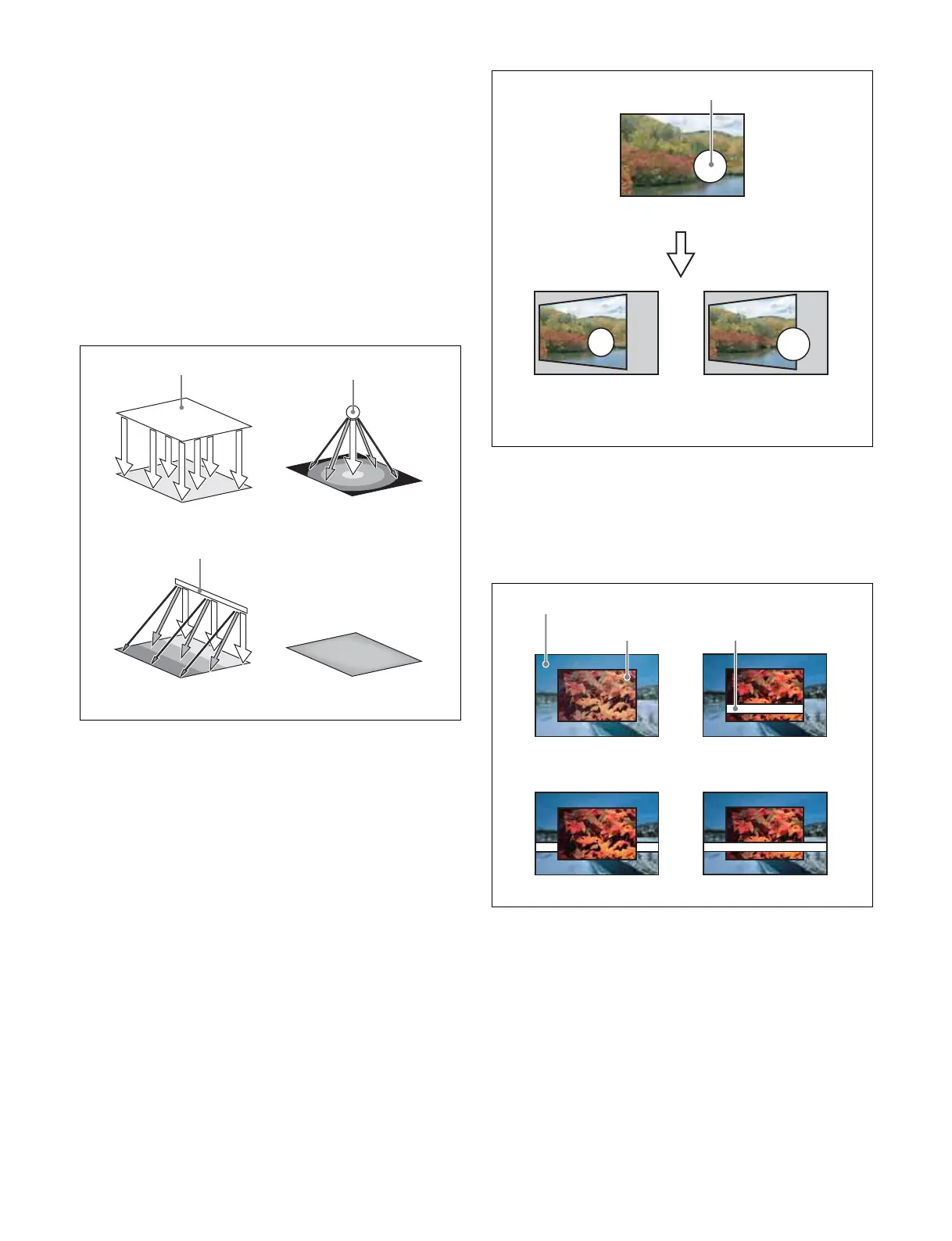

Light source types
The following type of spotlight light sources are available.
Parallel: Parallel light source
Point: Point light source. As the light source is placed
further away, the illuminated range becomes wider
and the light becomes weaker.
Line: Line light source
Whole: Non-directional light source which illuminates the
whole image
Linking and unlinking image and spotlight
The spotlight can move together with a DME image, or be
fixed in place.
Source: Place the light source in source space. The
spotlight is linked and moves when the image moves.
Target: Place the light source in target space. The
spotlight does not move, even when the image moves.
Selecting the illuminated area
You can select the area lit by the spotlight.
FRGD: The light strikes the image foreground.
BKGD: The light strikes the image background.
Both: The light strikes both the image foreground and
background.
Surface Flat settings
For the currently selected light source only, you can
forcibly make the image surface effect flat.
Lighting shape
Creates the spotlight shape.
Light source
Parallel
Point
Line Whole
Light source
Light source
Image before movement
Spotlight
Coordinate axis = Source
Spotlight moves together
with DME image.
Coordinate axis = Target
Spotlight does not move,
even if DME image moves.
No effect
Spotlight
FRGD selected
BKGD selected Both selected
Front view
Background
