Sony XVS Series User Manual

28
For details, see “Setting the Button and Fader Lever
Operation Mode” (page 393) and “Setting the transition
preview mode” (page 412).
KF (keyframe) button
(Assignment in the Setup menu is required.)
You can use the fader lever as a keyframe fader.
For details about the keyframe fader, see “Effect
Execution” (page 299).
Pattern limit setting buttons
(Assignment in the Setup menu is required.)
These buttons are used to set pattern limits.
• PTN (pattern) LIMIT button
• LIMIT SET button
For details about pattern limits, see “Pattern Limit”
(page 86).
External device operation buttons
(Assignment in the Setup menu is required.)
These buttons are used to control playback, stop, and cue-
up operations on connected devices.
• PLAY button
• STOP button
•CUE button
For details about operation of external devices, see
“Control of VTRs, Disk Recorders, and Extended VTRs”
(page 266).

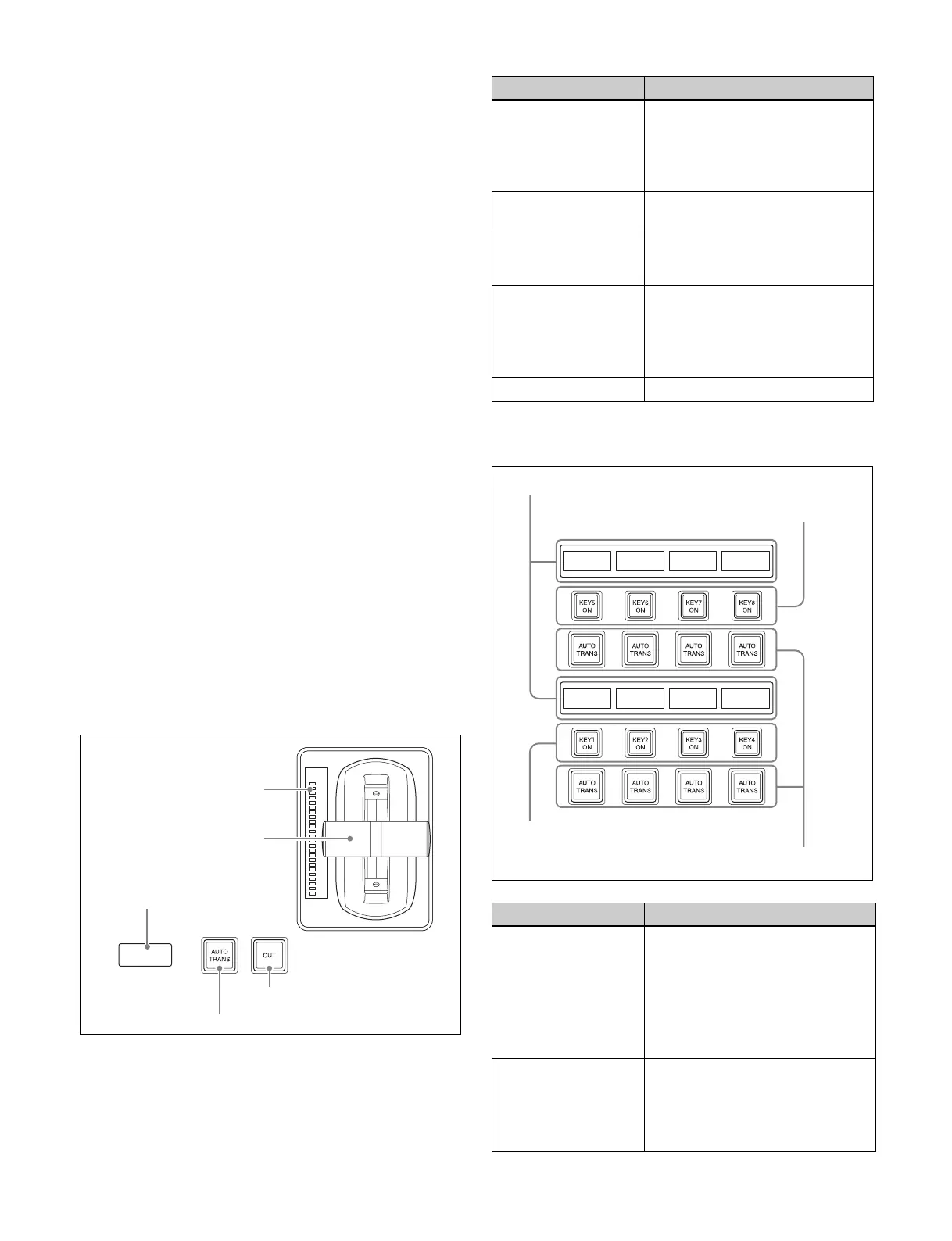

c Transition execution section
This section is used to execute transitions and check the
progress of the transition.
d Independent key transition execution section
This section executes independent key transitions.
Transition
indicator
Fader lever
Transition rate display
AUTO TRANS button
CUT button
Name Description
Fader lever • Move this up or down to carry out
the transition.
• Press the [KF] button, turning it
on, to enable the fader lever to be
used as a keyframe fader.
Transition indicator Displays the transition progress
using LEDs.
Transition rate display Displays the configured transition
rate (the time from the beginning of
a transition to its completion).
AUTO TRANS (auto
transition) button
• Executes an auto transition with
the set transition rate and
transition type.
• During the transition, the button
is lit amber.
CUT button Executes an immediate transition.
Name Description
Independent key
transition display
section
Displays the following information
for key 1 to key 8.
Key material name (key source
name when a key source is
selected on the key bus of the
cross-point control block), DME
channel or resizer being used, and
transition rate
KEY1 ON to KEY8 ON
buttons
• Inserts or removes the key
instantaneously.
• If a key is currently inserted, the
corresponding key button is lit
amber.
Independent key transition display section
KEY1 ON to KEY4 ON buttons
KEY5 ON to KEY8 ON buttons
AUTO TRANS buttons
