11-8 LUBRICATION SYSTEM

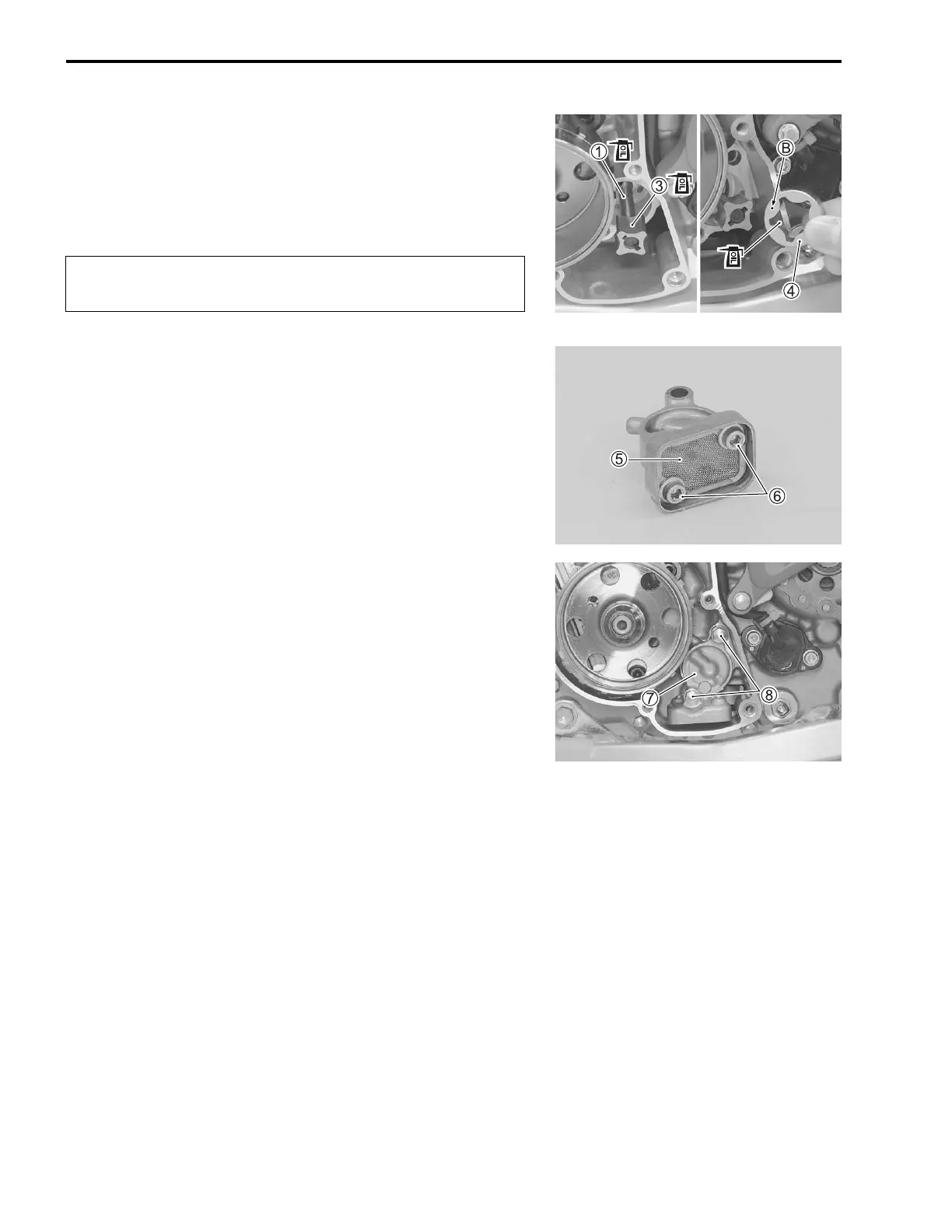

• Apply engine oil to the oil pump No.2 shaft 1, outer rotor 4
and inner rotor 3.
• Install the oil pump No.2 shaft 1 and inner rotor 3 onto the
crankcase.
• Install the outer rotor 4 onto the crankcase.
• Install the oil strainer No.2 5 and tighten the oil strainer No.2
bolts 6 to the specified torque.
Oil strainer No.2 bolt: 5.5 N·m (0.55 kgf-m, 4.0 lbf-ft)
• Install the oil pump No.2 cover 7 and tighten the oil pump
No.2 bolts 8 to the specified torque.
Oil pump No.2 bolt: 11 N·m (1.1 kgf-m, 8.0 lbf-ft)
• Install the magneto cover. (15-19)
• Install the gearshift lever. (9-7)
INSPECTION AFTER INSTALLATION
• Engine oil level and oil leakage (2-12)
• Engine coolant level and coolant leakage (2-18, -19)
• Oil pressure (2-42)
Face the punch mark B on outer rotor 4 to the crank-
case.
