ENGINE REMOVAL AND INSTALLATION 5-3

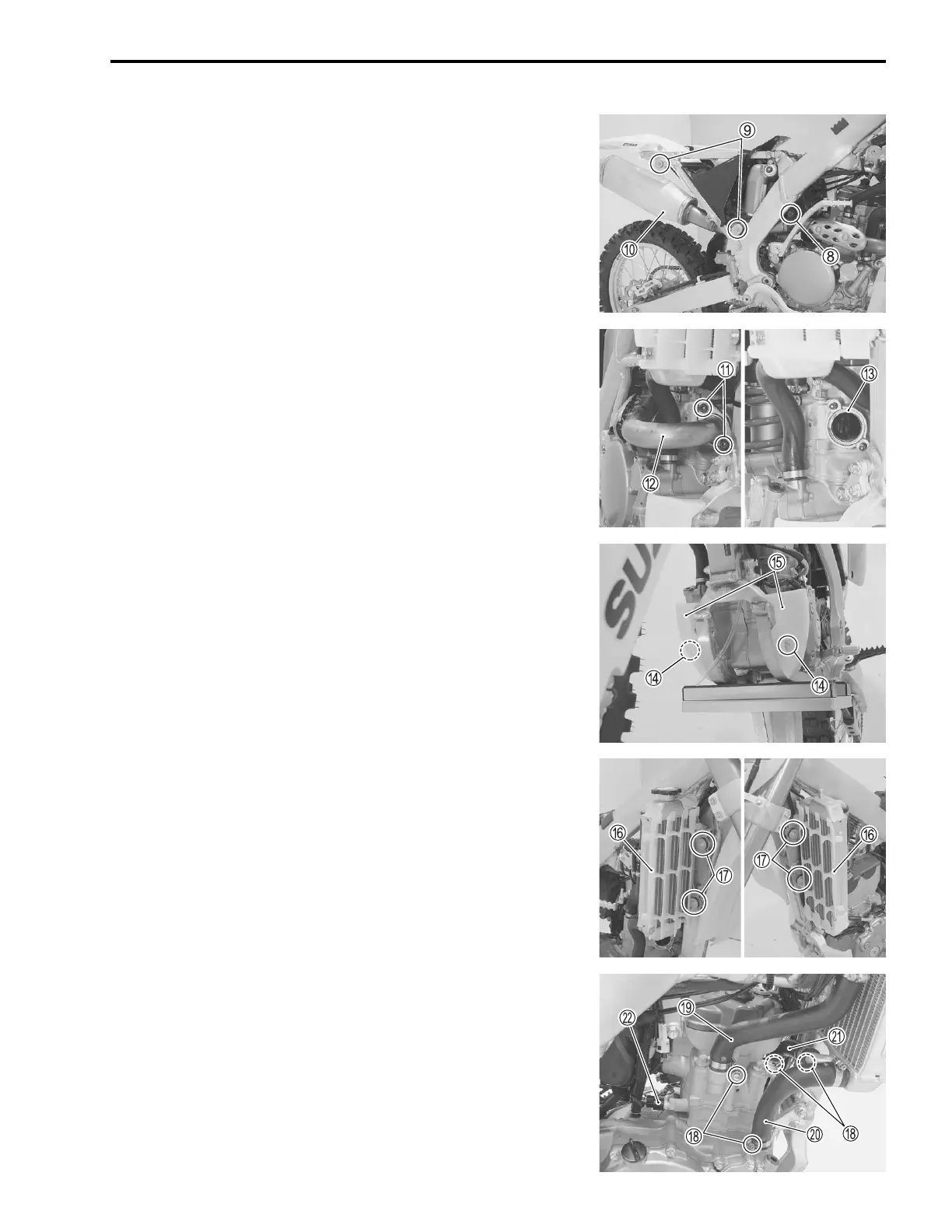

• Loosen the muffler connector clamp bolt 8.
• Remove the muffler 0 by removing its bolts 9.
• Remove the exhaust pipe B by removing their nuts A.
• Remove the exhaust pipe gasket C.
• Remove the front protectors E by removing their bolts D.
• Remove the radiator louvers F, left and right.
• Remove the radiator mounting bolts G, left and right.
• Loosen the radiator hose clamps H.
• Disconnect the radiator hoses I and J.
• Remove the radiator hose K.
• Disconnect the ECT sensor coupler L.
