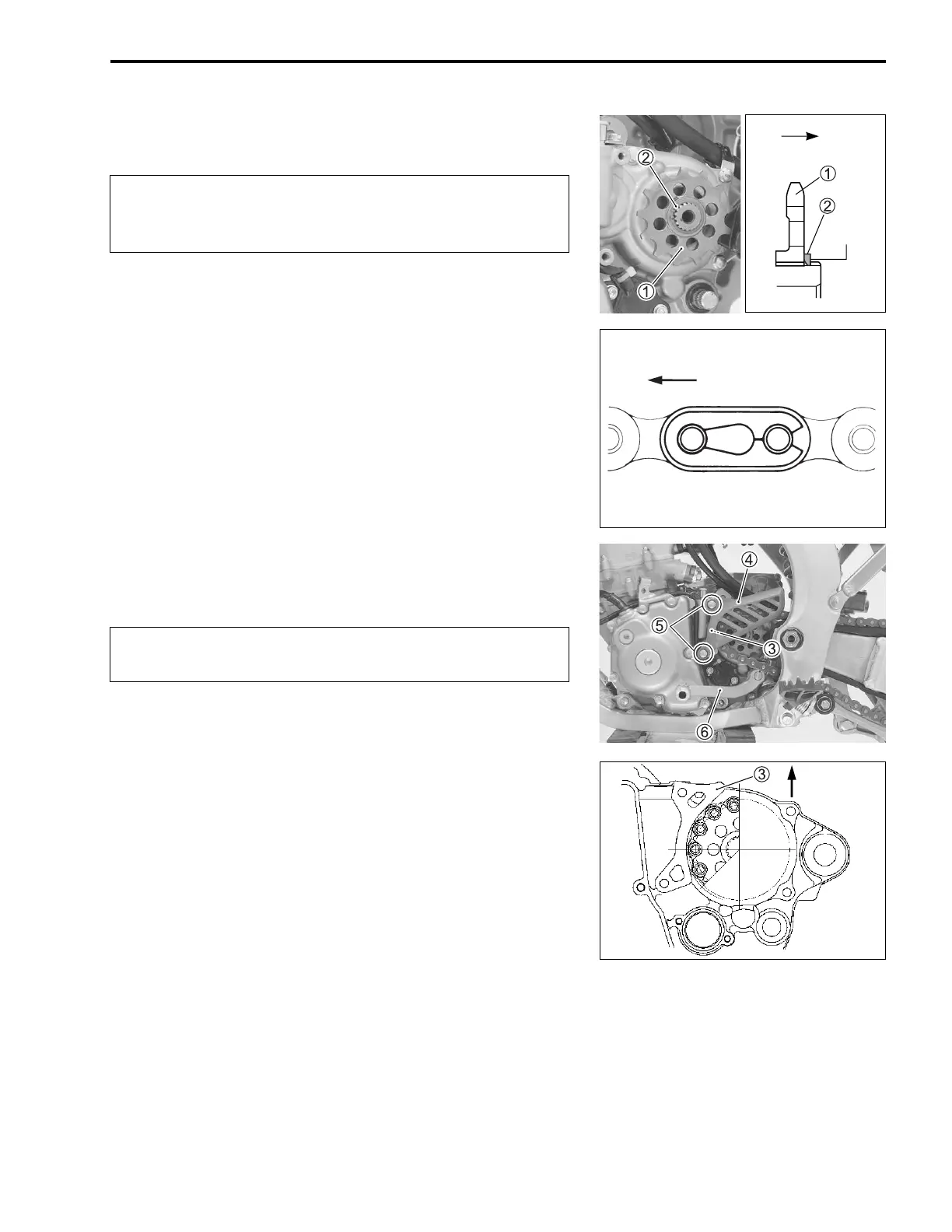

ENGINE REMOVAL AND INSTALLATION 5-7
• Install the engine sprocket 1 and snap ring 2.
09900-06107: Snap ring remover (Open type)
• Reassemble the drive chain clip so the slit end faces opposite
the direction of rotation.
• Install the front chain guide plate 3 and engine sprocket
cover 4.
• Tighten the engine sprocket cover bolts 5 to the specified
torque.
Engine sprocket cover bolt: 11 N·m (1.1 kgf-m, 8.0 lbf-ft)
• Install the gearshift lever 6 in the correct position.
* Replace the snap ring 2 with a new one.
* Seat the snap ring 2 in the groove and locate its end
as shown in the illustration.
Sharp
edge
Thrust
Direction of travel
When installing the front chain guide plate 3, pay
attention to its direction.
Upper side
To Next Page
