Tait TM9100 Service Manual

106 General Information TM9100 Service Manual
© Tait Electronics Limited August 2005
Service CD
Install the programming and calibration applications on the test PC.
These applications are included on the service CD supplied with the
service kit.

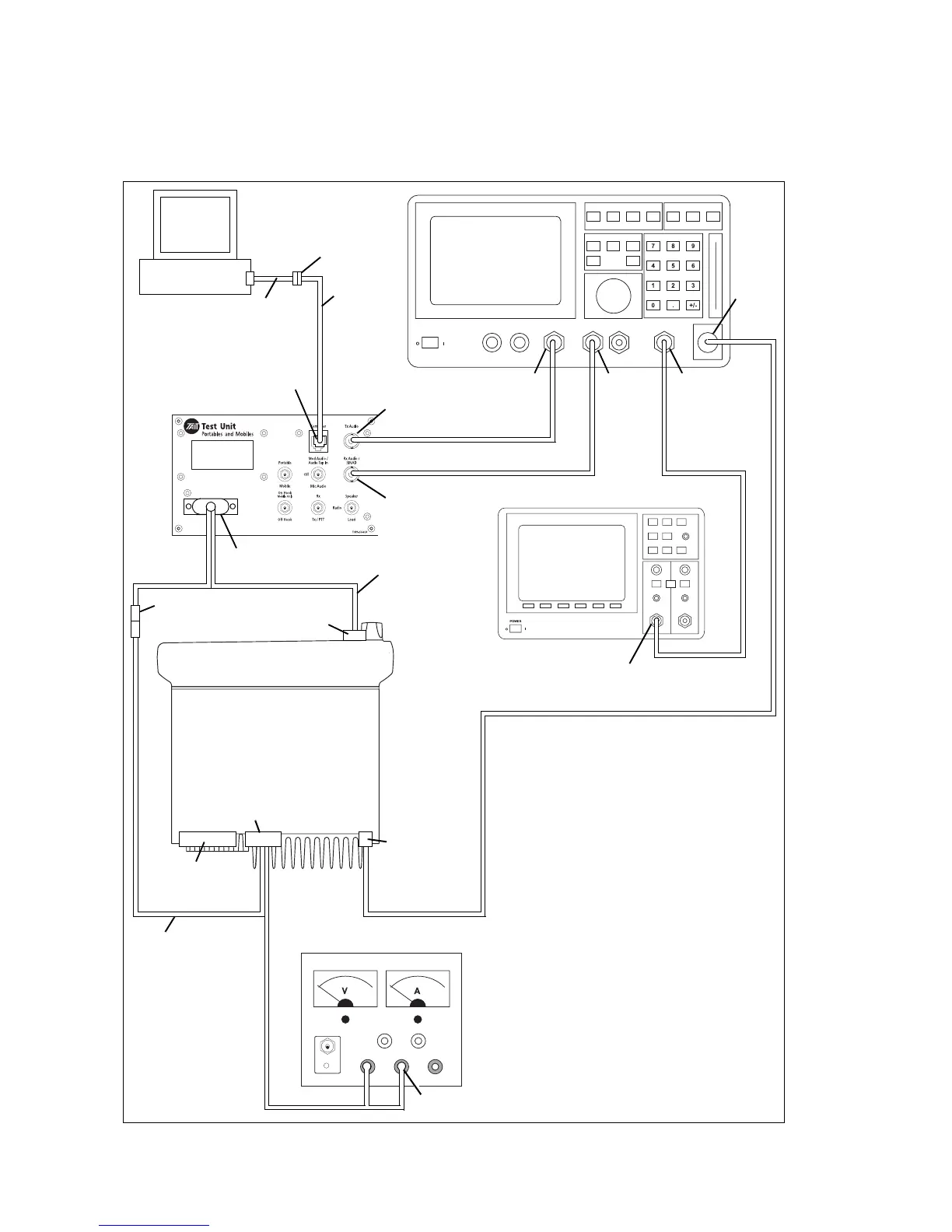

Figure 4.2 Test setup
radio connector
(DB15)
RF connector
(mini UHF or
BNC)
auxiliary
connector
(DB15)
microphone
connector (RJ45)
receive audio /
SINAD connector
(BNC)
transmit audio
connector (BNC)
computer
connector
(RJ12)
serial port
(DB9)
speaker
connector
banana plugs
AC input
(BNC)
audio
monitor
out (BNC)
AUDIO
IN HI
(BNC)
AUDIO
OUT
(BNC)
RF in/out
(N-type)
power
connector
TMAA23-02 cable
(50W/40W radios)
TMAA20-03 cable
(25W radios)
TMAA21-01 cable
TOPA-SV-024
TPA-SV-006
cable
TM9100 radio
T950-001
USB1.1 to serial
DB9 adapter
(optional)
RF comms set
Test PC
Oscilloscope
DC power supply
