164 Interface Fault Finding TM9100 Service Manual
© Tait Electronics Limited August 2005

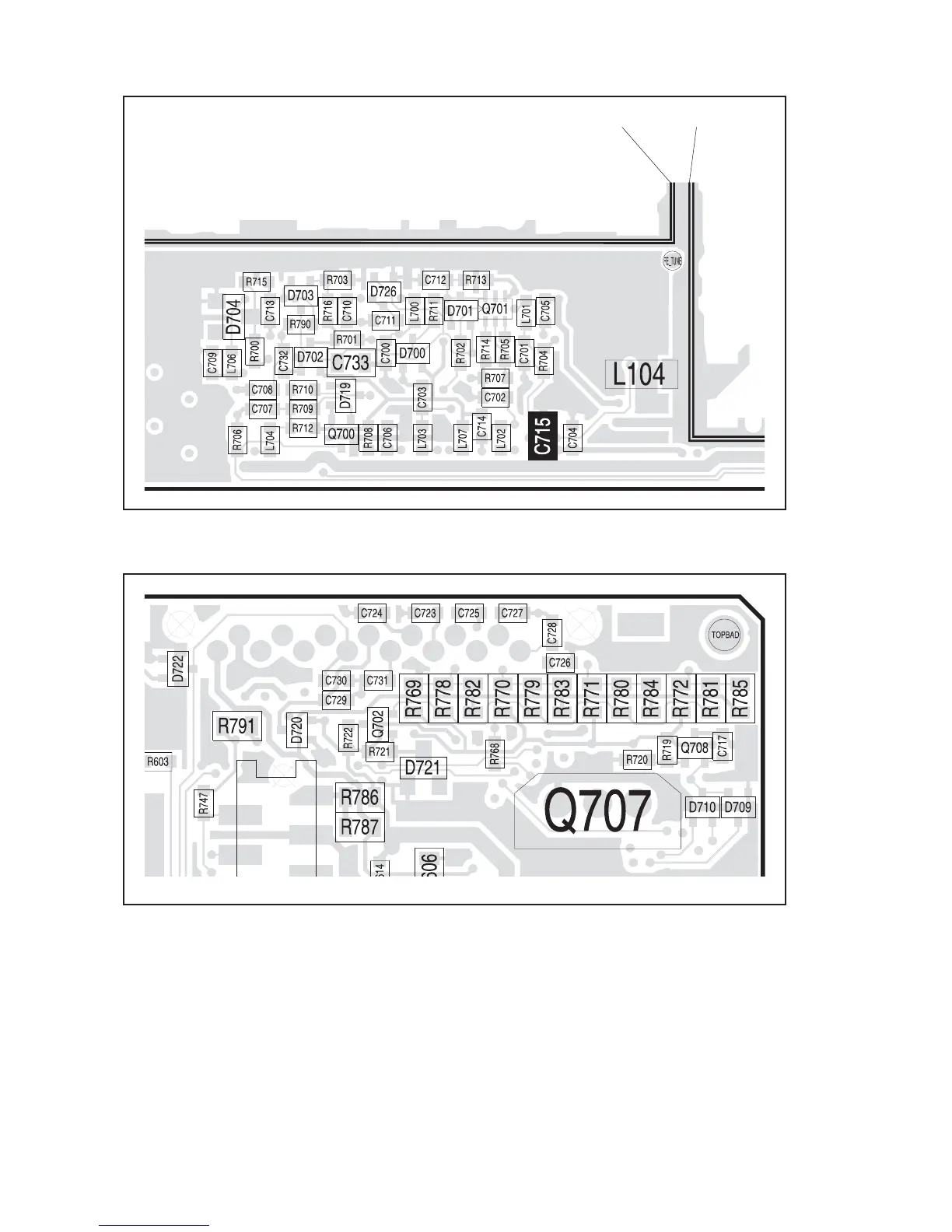

Figure 8.2 Components of the interface circuitry (top side near the
CDC TOP and IF TOP cans)
Figure 8.3 Components of the interface circuitry (top side at the corner)
CDC TOP CANIF TOP CAN
