Tait TM9100 Service Manual

454 TMAA10-03 and TMAA10-06 High-Power Remote Speakers TM9100 Service Manual
© Tait Electronics Limited August 2005
21.1.2 Power Connector Wiring
Insert the remote speaker receptacles into the power connector socket, as
shown in the diagrams below.
Note The positive remote speaker wire has a white stripe.
With the TMAA10-03 remote speaker (25W radio), insert the
the positive remote speaker wire into the position nearest to the
red wire.
With the TMAA10-06 remote speaker (50W/40W radio),
insert the positive remote speaker wire into the upper position
(marked “3”).
.
.

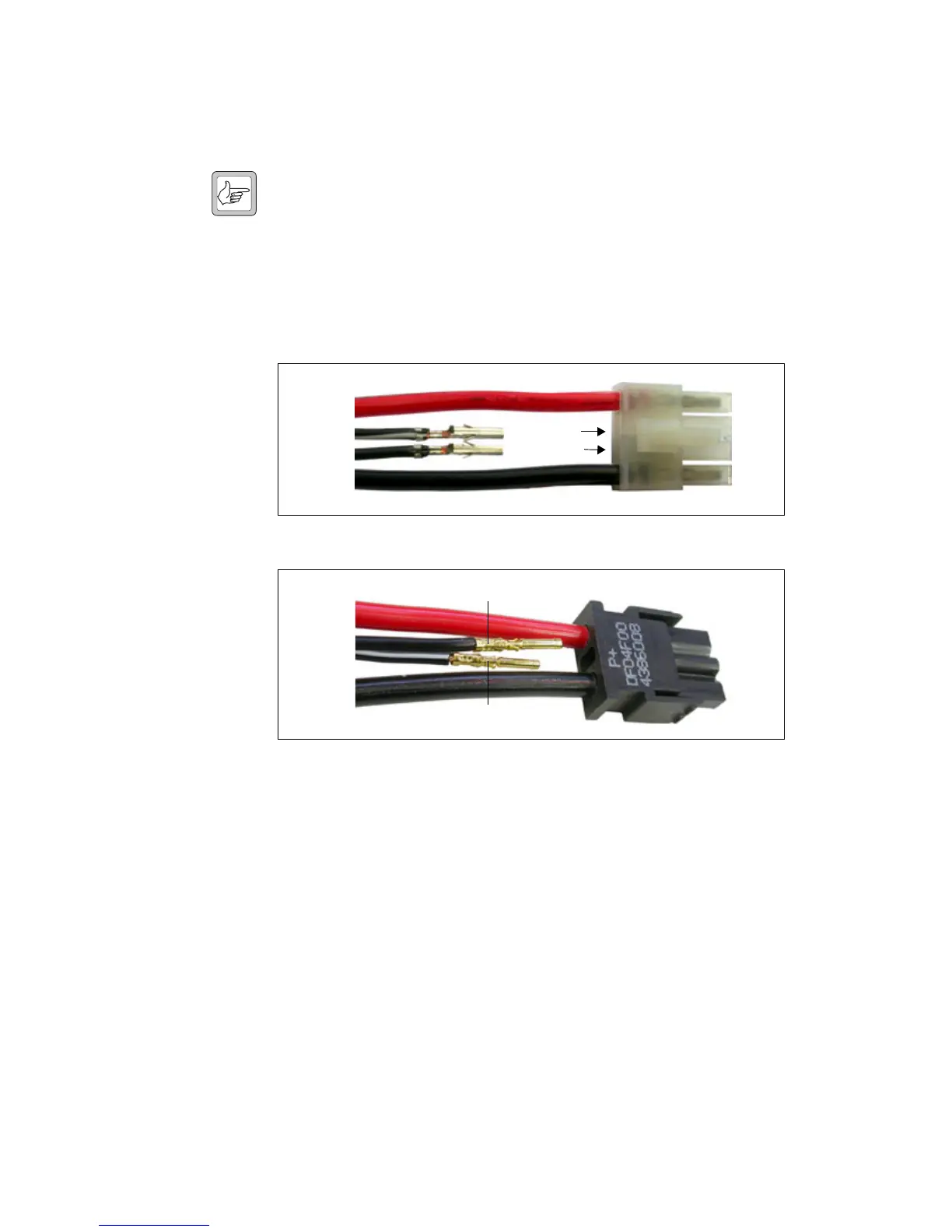

Figure 21.1 Power connector wiring of the TMAA10-03 remote speaker
Figure 21.2 Power connector wiring of the TMAA10-06 remote speaker
power
connector
remote
speaker cable
speaker +
speaker –
+13.8V
(red)
ground
(black)
power
connector
remote
speaker cable
speaker – (to pin 2)
speaker + (to pin 3)
+13.8V
(red)
ground
(black)
