Tait TM9100 Service Manual

256 Transmitter Fault Finding (50W/40W Radios) TM9100 Service Manual
© Tait Electronics Limited August 2005

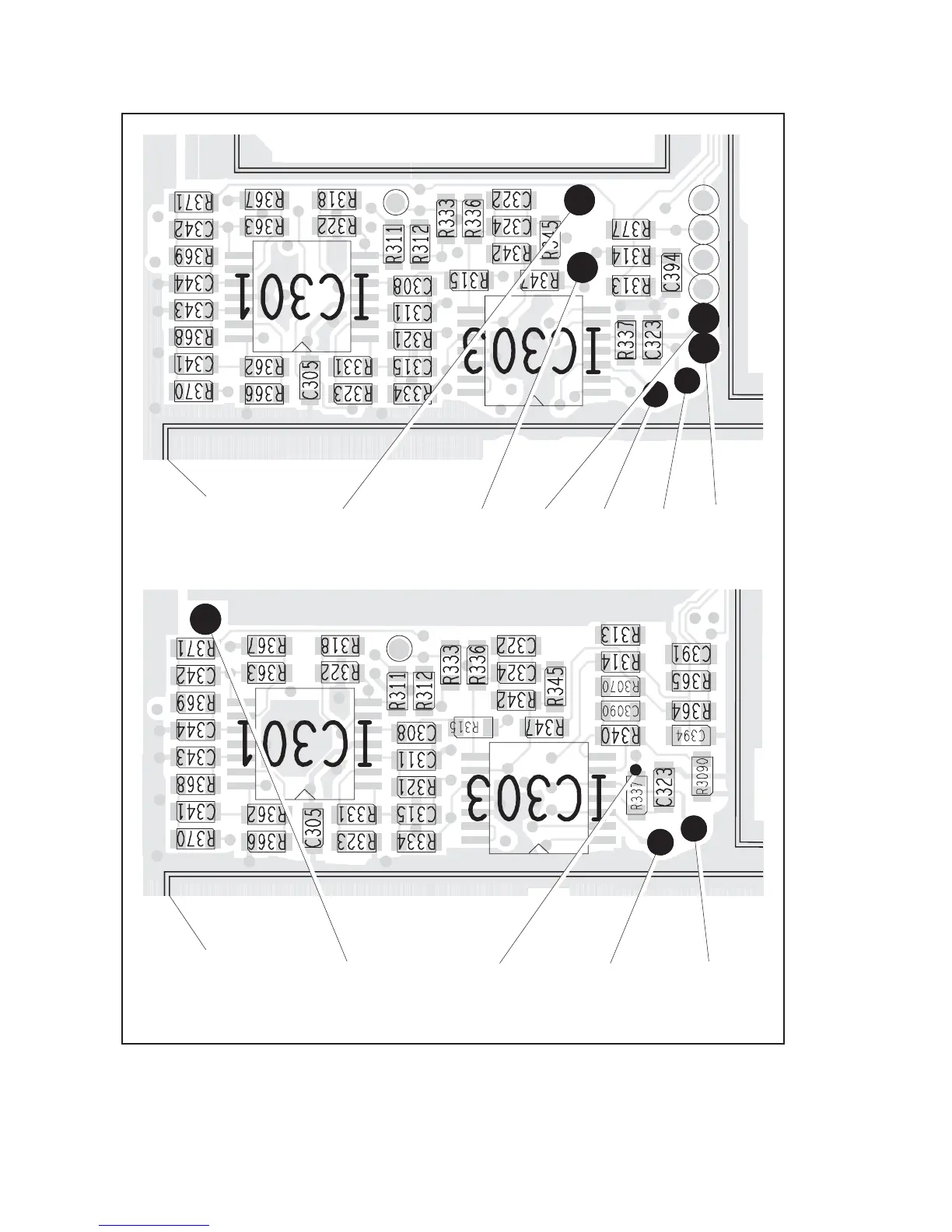

Figure 11.6 Test points for checking the 9V supply, the forward and reverse RF power, and the
inhibiting of the transmitter
B1 BAND H5, H7 BANDS IF TOP CAN
VCO TOP CAN
IF TOP CAN
DIRC TOP CAN DIRC TOP CAN
D TX INH TEST POINT TX INH TEST POINT
TX INH TEST POINT
9V0 TX TEST POINT
9V0 TX TEST POINT
REV PWR TEST POINT
REV PWR TEST POINT
FWD PWR TEST POINT
FWD PWR TEST POINT
GND TEST POINT
