TM9100 Service Manual Installing an Enhanced Remote Kit 461
© Tait Electronics Limited August 2005
23 Installing an Enhanced Remote Kit

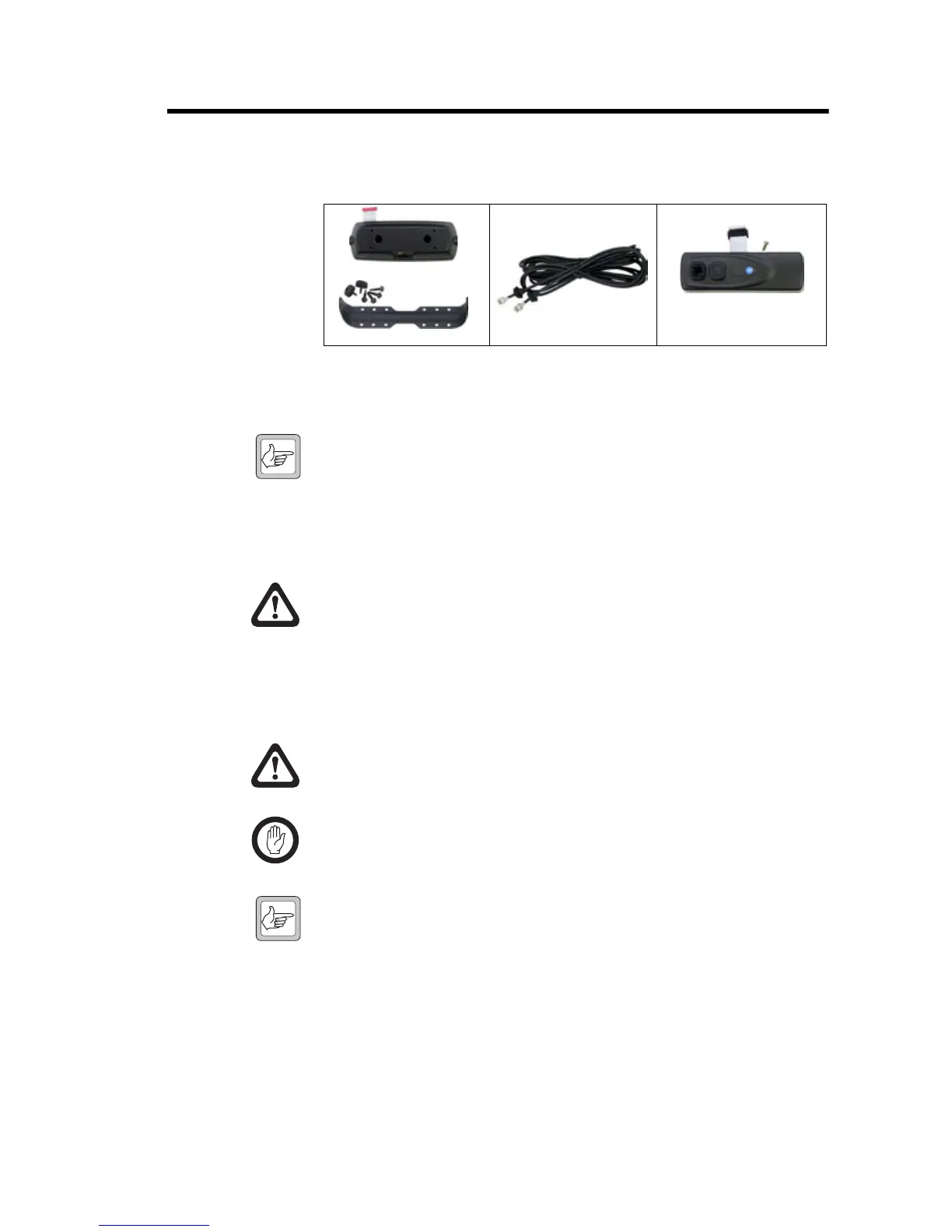

The control head of a graphical-display radio can be installed remotely from
the radio body. The diagram below shows the parts used for this installation.
Note Although the torso interface is similar in appearance to the dual-
RJ45 on the telemetry radio, the control head on the telemetry
radio cannot be used for remote installation.
23.1 Installation
Warning!! Mount the remote U-bracket with the remote
control-head assembly and the U-bracket with
the radio body securely. These units must not
break loose in the event of a collision. Unse-
cured radio units are dangerous to the
vehicle occupants.
Caution Observe the installation warnings and safety regula-
tions in the installation procedures of the radio.
Important This equipment contains devices which are susceptible to
damage from static discharges. Refer to “ESD Precautions”
on page 103 for more information.
Note Torx T10 and T20 screwdrivers are required for most of the screws
in this installation.
The circled numbers in the following sections refer to the items in Figure 23.1
on page 462.
TMAA03-03 remote
control-head back
(includes remote U-bracket)
TMAA04-01 remote cable
TMAC34-0T (TM8200) or
TMAC34-1T(TM9100)
torso interface
remote U-bracket
control-head interface
