TM9100 Service Manual Receiver Fault Finding 229
© Tait Electronics Limited August 2005

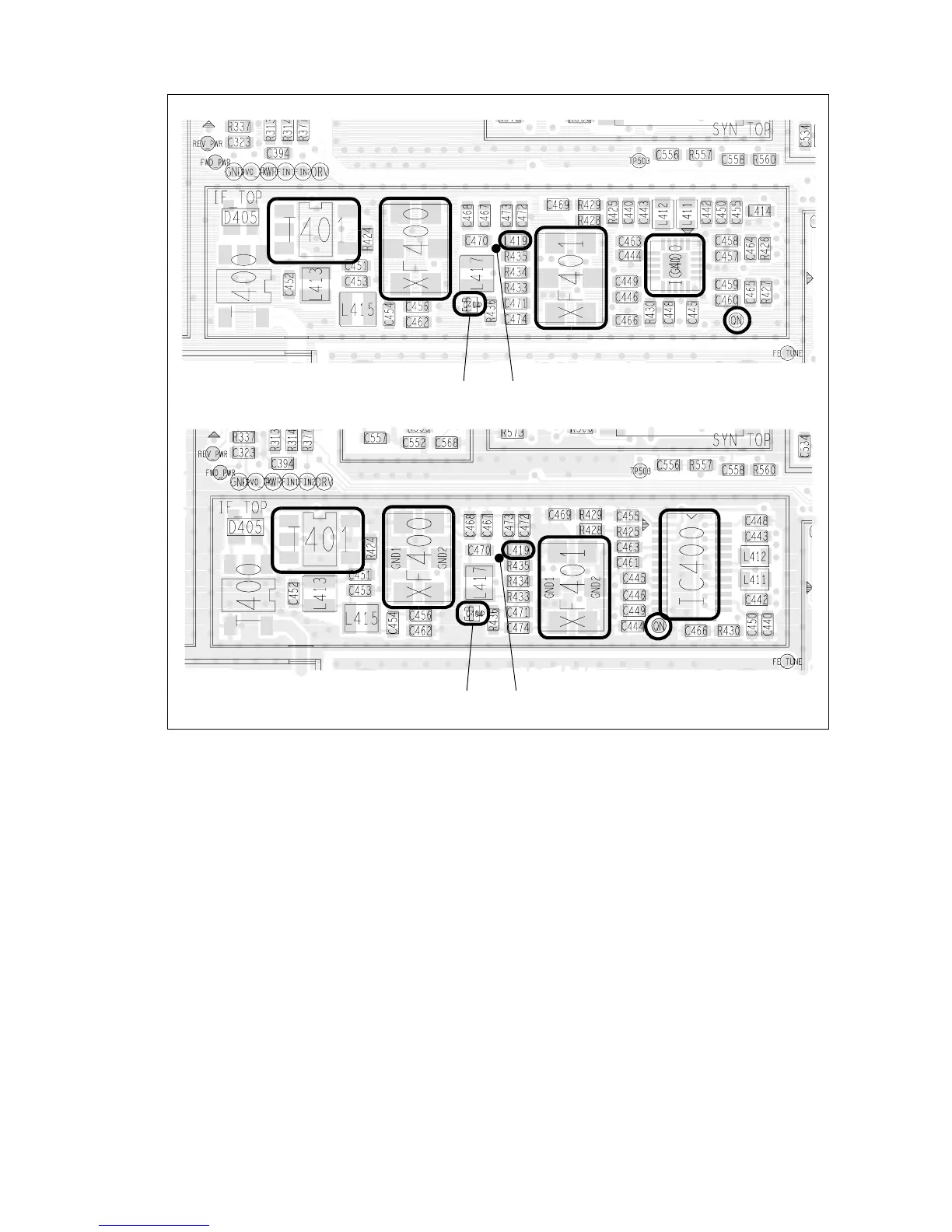

Figure 10.1 Receiver circuitry under the
IF TOP can (top side)
Q404
H5/H6 bands
Measurement point
B1 band
Q404 Measurement point
