TM9100 Service Manual TMAA10-03 and TMAA10-06 High-Power Remote Speakers 453
© Tait Electronics Limited August 2005
21 TMAA10-03 and TMAA10-06
High-Power Remote Speakers
The TMAA10-03 remote speaker (for the 25W radio) and
the TMAA10-06 remote speaker (for the 50W/40W radio)
are installed in parallel with the radio’s existing internal
speaker. The remote speaker can then be installed at some
distance from the radio, or it can be used to increase the
volume of the audio from the radio’s existing internal speaker.
The remote speaker cable is terminated with two receptacles.
These receptacles are different between the TMAA10-03 and
the TMAA10-06 remote speakers.
Two spare receptacles are included with the remote speaker,
along with four mounting screws and washers.
21.1 Installation
21.1.1 Remote Speaker Mounting
1. Choose a mounting position for the remote speaker where it will not
interfere with the operation of any of the vehicle controls.
2. Remove the remote speaker from the mounting bracket and use the
screws and washers provided to fix the mounting bracket securely in
the chosen location.
Important Check before drilling that the drill will not damage any
components or wiring behind the mounting location.
■ If mounting the bracket onto a metal surface, drill two 3.5mm
(0.14 inch) holes in the appropriate locations and secure the
bracket with the supplied self tapping screws.
■ If mounting the bracket to any other material, such as plastic, drill
two 4.5mm (0.18 inch) holes and attach the bracket with screws
and captive nuts, or similar.
3. Attach the speaker to the mounting bracket using the thumbscrews.
4. Run the free end of the speaker cable to the radio power cable and
install the two receptacles in the power connector, as described in the
“Power Connector Wiring” procedure.
Important Check that the speaker cable is protected from engine heat,
sharp edges and from being pinched or crushed.

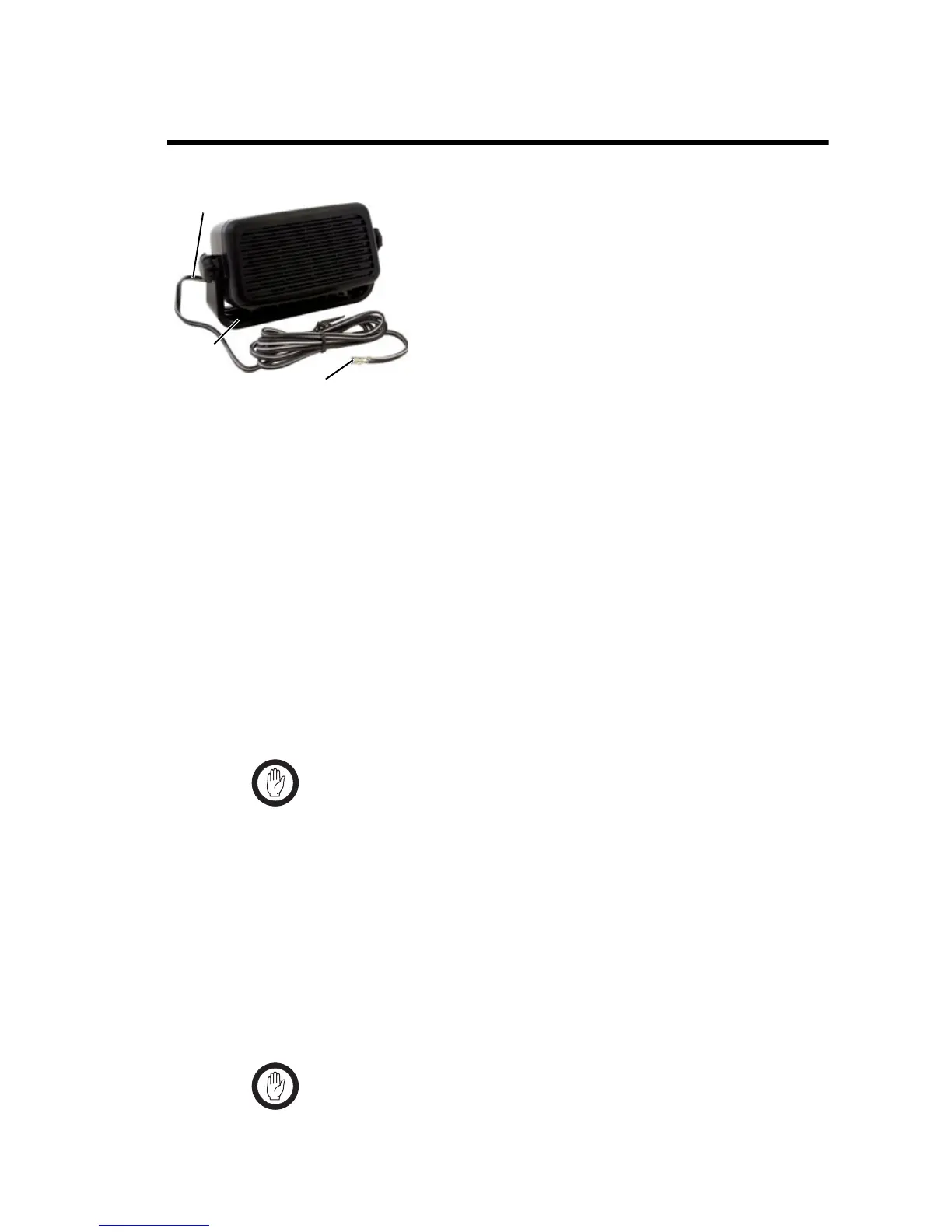

remote speaker cable
mounting
bracket
receptacles
