TM9100 Service Manual Fault Finding of Control Head 411
© Tait Electronics Limited August 2005

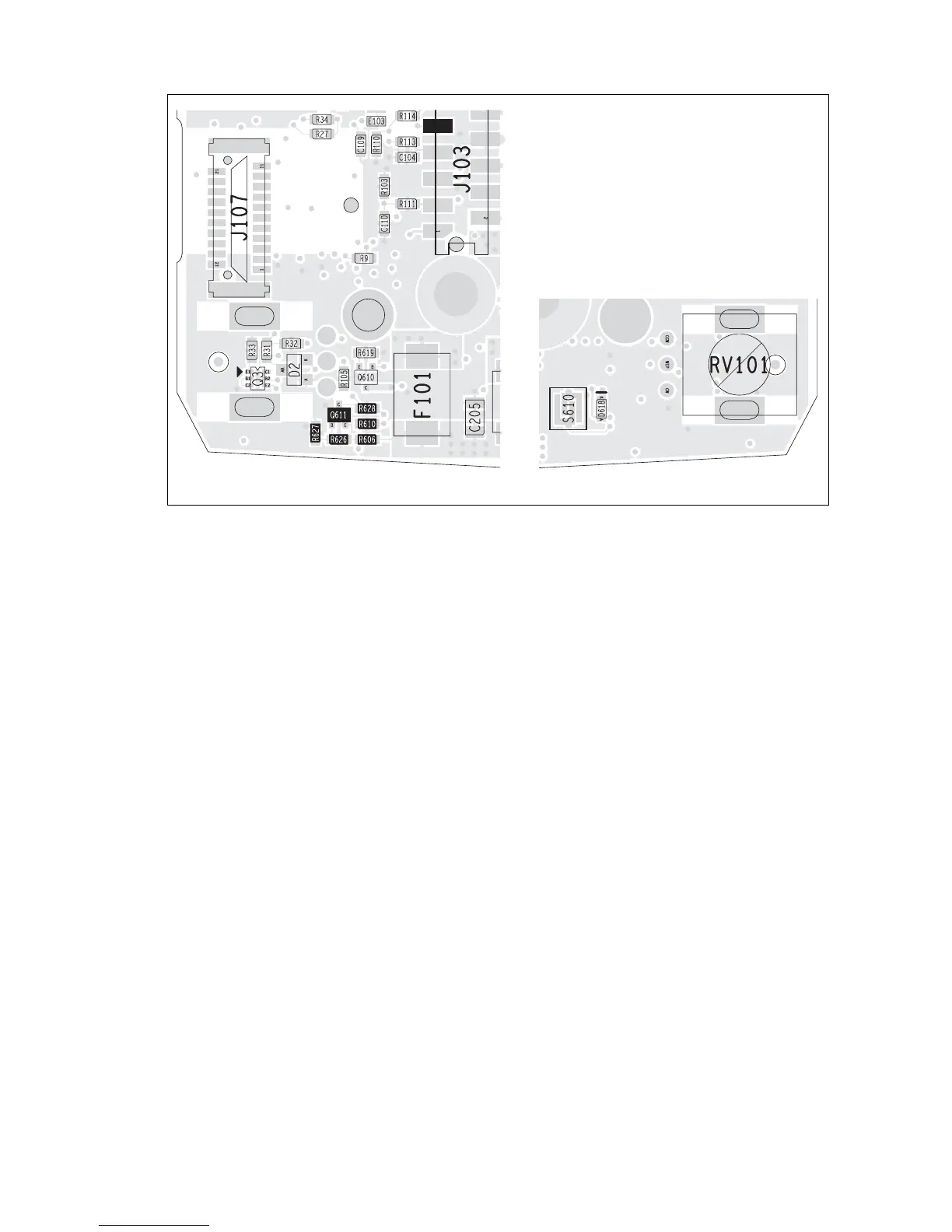

Figure 14.10 PCB layout of the power on/off key circuitry
top side bottom side
