TM9100 Service Manual Transmitter Fault Finding (25W Radios) 321
© Tait Electronics Limited August 2005

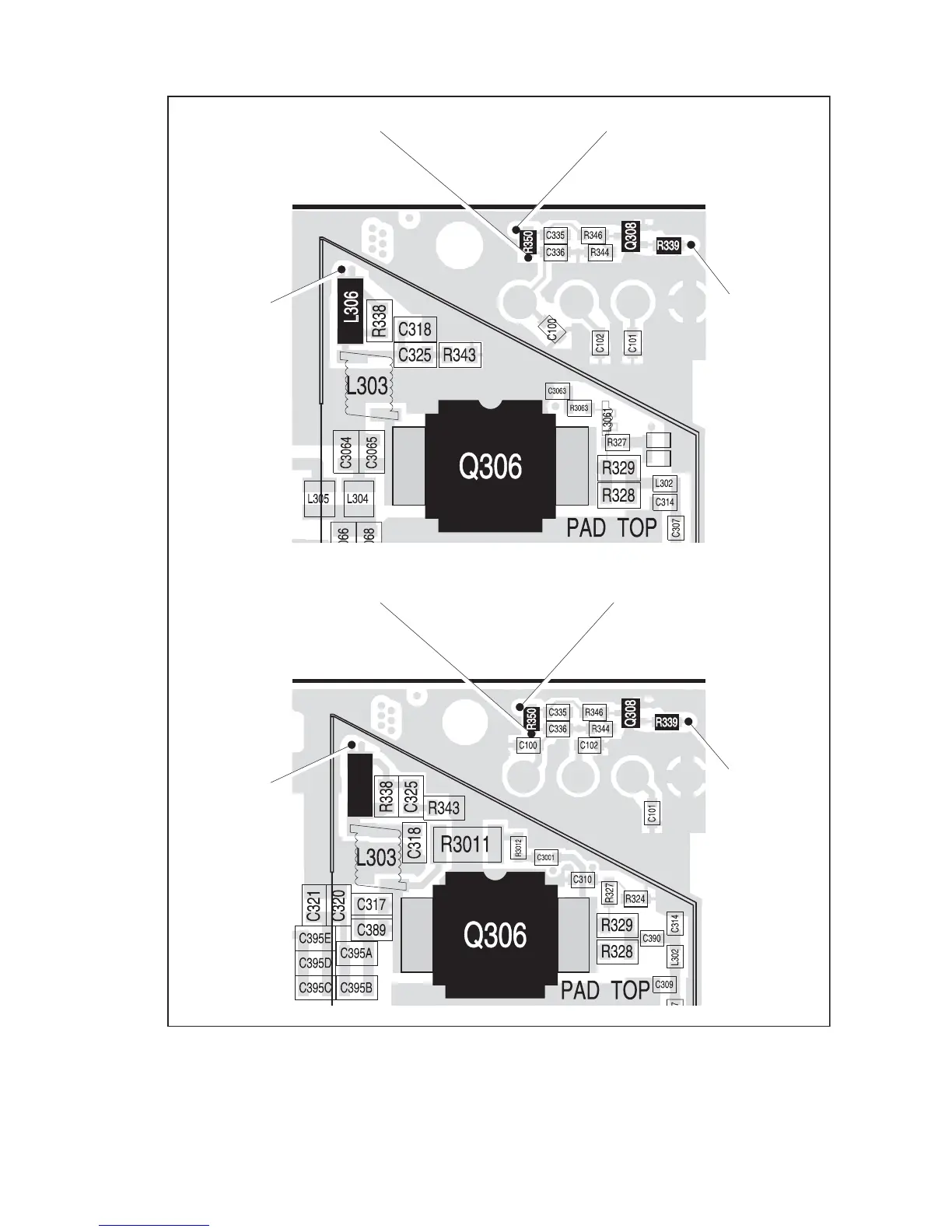

Figure 12.3 Point for measuring the power supply to the PA driver
R324
C310
H5, H6 BANDS
B1 BAND
MEASUREMENT
POINT ON L306
MEASUREMENT
POINT ON L306
L306
POINT 2 ON R350
POINT 2 ON R350
POINT 1 ON R350
POINT 1 ON R350
MEASUREMENT
POINT ON R339
MEASUREMENT
POINT ON R339
