Tait TM9100 Service Manual

412 Fault Finding of Control Head TM9100 Service Manual
© Tait Electronics Limited August 2005
14.9 Function, Scroll, or Selection Keys Faulty
The eight keys of the main keypad (function, scroll, and selection keys) are
connected to the FPGA by an array of three columns and three rows.
During idle operation, the
KEY ROW signals are driven low by the FPGA and
the
KEY COL signals (pulled high by an external resistor) are monitored for
activity by the FPGA. A key-press will generate a high-to-low transition on
the associated column
KEY COL signal. This, in turn, will initiate a sequence
of high output levels on the
KEY ROW signals to identify which key was
pressed.
The signal at the column side of the switch should be 3.3V. The row side of
the switch should be GND. A successful press will cause transition on
associated KEY_COL signal to low.
Note CCTM command 1009 can be used to monitor keypad press and
release events.
One Key Faulty If an individual key is faulty:
1. Use isopropyl alcohol and a soft lens-cleaning cloth to clean the pad
of the tact switch.
2. Visually inspect both tact switches (A and B) of a key for short-
circuits. Repair if necessary.

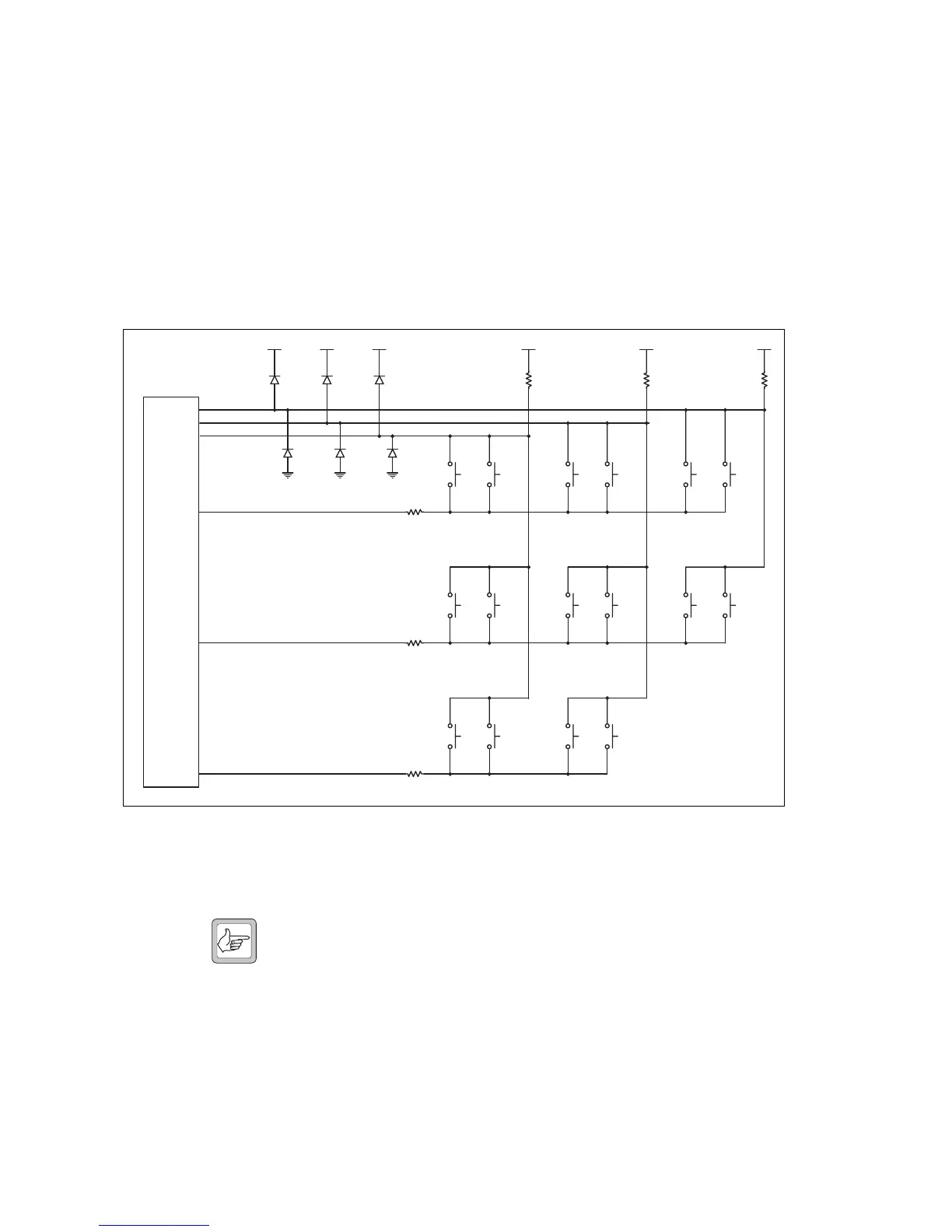

Figure 14.11 Circuit diagram of the function, scroll, and selection keys
KEY COL1
KEY COL2
KEY COL3
3V3
D604
D604
3V3
D620
D620
3V3
D602
D602
S601A
1
2
S601B
1
2
S602A
1
2
S602B
1
2
3V3 3V3
R620 R621
S603A
1
2
S603B
1
2
3V3
R622
Right Selection Key
F3 KeyF4 Key
R623
KEY ROW1
R624
R625
KEY ROW2
KEY ROW3
S604A
1
2
S604B
1
2
S605A
1
2
S605B
1
2
S606A
1
2
S606B
1
2
Scroll-Down Key Left Selection KeyScroll-Up Key
S607A
1
2
S607B
1
2
S608A
1
2
S608B
1
2
F1 KeyF2 Key
FPGA
