2.3 Connectors
Overview This section describes the specifications and pinouts of the connectors of the
radio body and the control head.
Figure 2.7 provides an overview of the connectors:
Figure 2.8 shows the connectors of the radio body.
Figure 2.9 shows the connectors of the control head.
For information on the factory connector of the main board and the internal
connectors of the control head, refer to the PCB information of the main
boards and the control-head board.

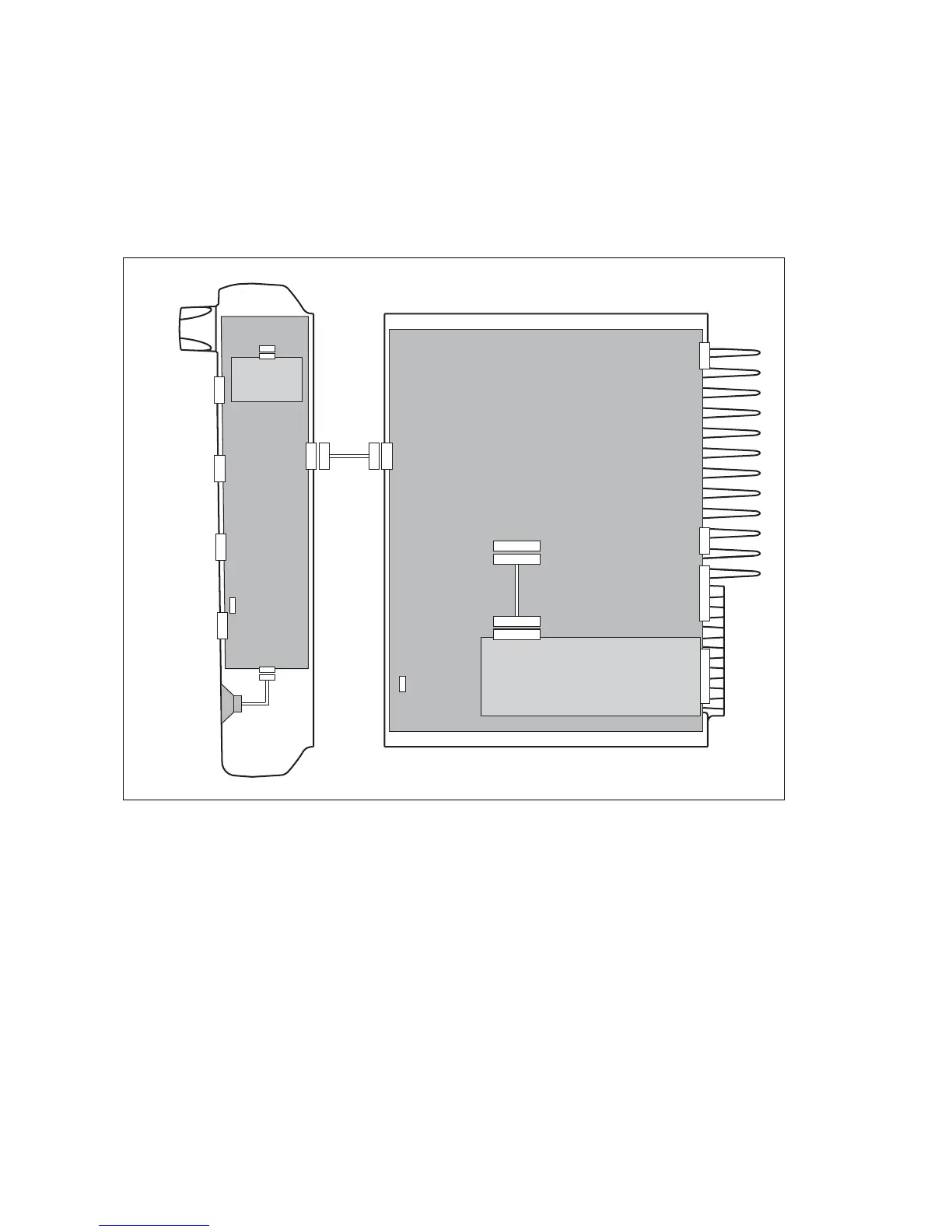

Figure 2.7 Connectors
Speaker
Control-Head
Board
Speaker
Leads
Speaker
Connector
Microphone
Connector
Control-Head
Options Connector
Control-Head
Options Board
Main Board
Internal
Options
Loom
Control-Head
Connector
Power
Connector
RF Connector
Auxiliary
Connector
Factory
Connector
(Factory Only)
Pads for
Concealed
Microphone
External
Options
Connector
Internal
Options
Board
Internal
Options
Connector
Control-Head
Loom
Volume
Control
Keys
LEDs
LCD
