2.3.1 RF Connector
The RF connector is the primary RF interface to the antenna. The RF
connector is a standard mini-UHF connector or a BNC connector with an
impedance of 50Ω.
Important The maximum RF input level is +27dBm. Higher levels
may damage the radio.

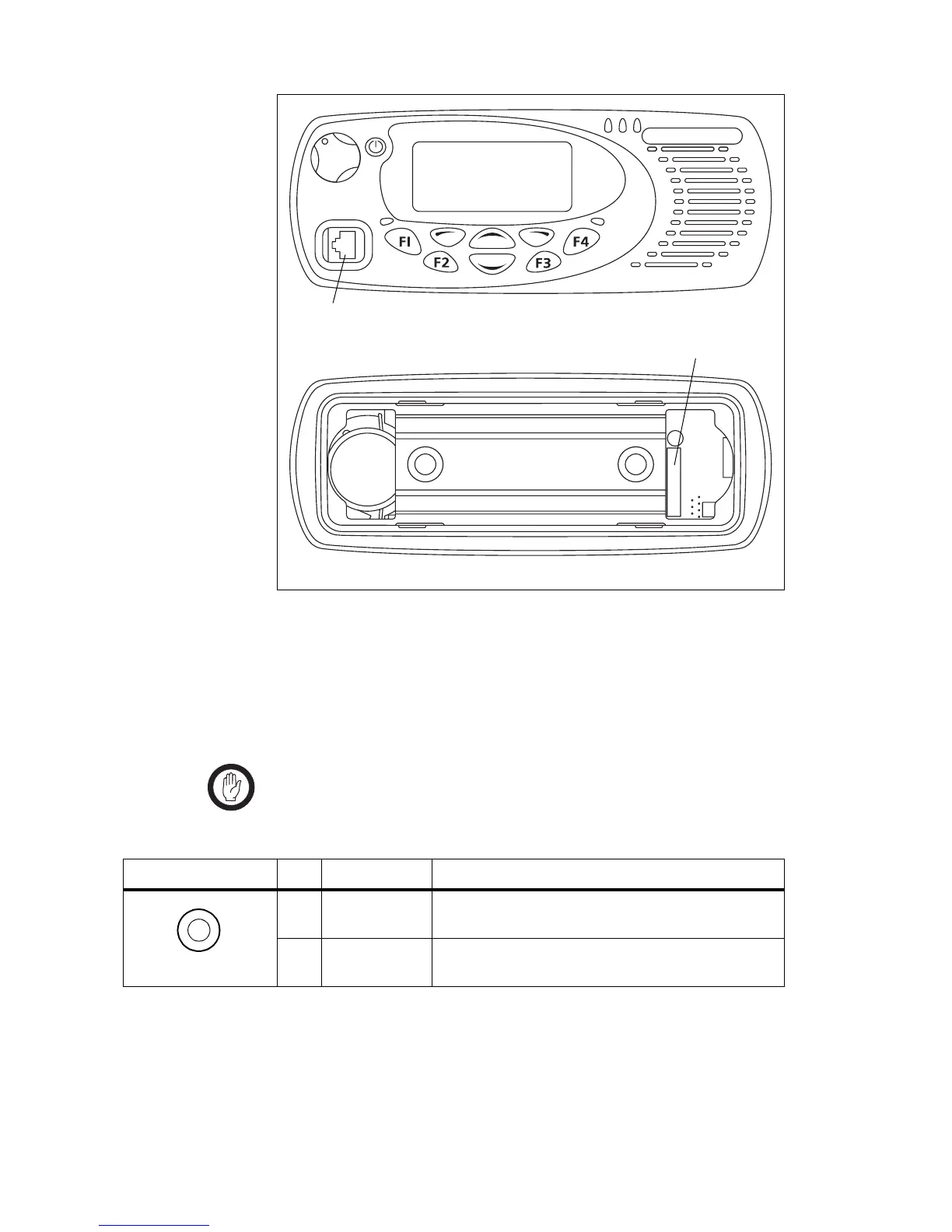

Figure 2.9 Connectors of the control head
front view
rear view without adapter flange
microphone
connector
control-head
connector
Table 2.1 RF connector - pins and signals
Pinout Pin Signal Name Signal Type
1 RF RF analog
2 GND RF ground
B
C
rear view
