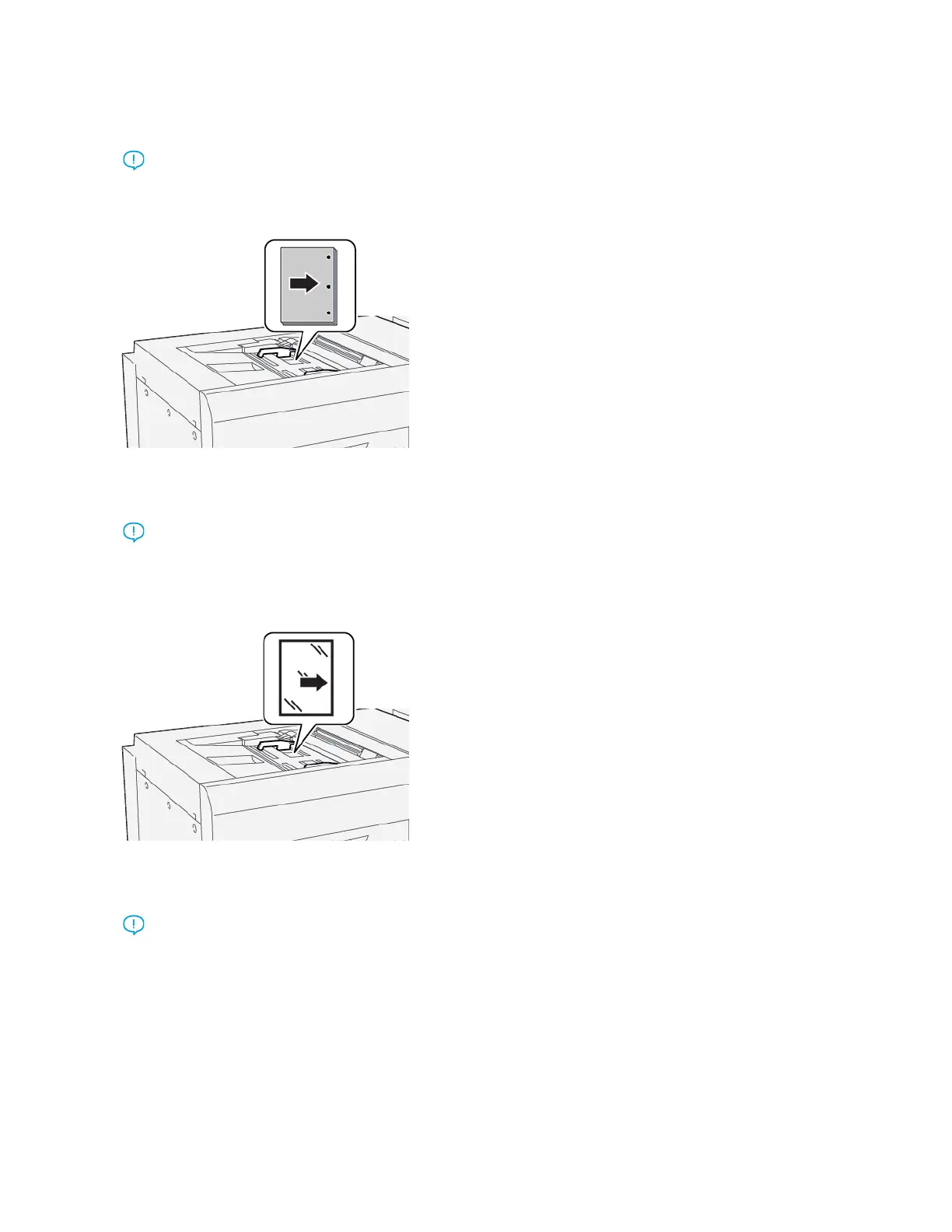

LOADING HOLE-PUNCHED PAPER IN TRAY 5 (BYPASS)
Important: If you are using the XLS Bypass tray, before proceeding, loosen the four locking screws on the
paper guides. For details, refer to Loading Media in the Optional Extra Long Sheets (XLS) Bypass Tray.
Load and align the edge of the hole-punched paper with the holes against the right edge of the tray.
LOADING TRANSPARENCIES IN TRAY 5 (BYPASS)
Important: If you are using the XLS Bypass tray, before proceeding, loosen the four locking screws on the
paper guides. For details, refer to Loading Media in the Optional Extra Long Sheets (XLS) Bypass Tray.
Load the transparencies in the Long-Edge Feed (LEF) direction and align the edge of the transparencies against the
right edge of the tray, with the side to be printed facing up.
LOADING TAB STOCK IN TRAY 5 (BYPASS)
Important: If you are using the XLS Bypass tray, before proceeding, loosen the four locking screws on the
paper guides. For details, refer to Loading Media in the Optional Extra Long Sheets (XLS) Bypass Tray.
Load the tab stock long-edge feed (LEF), with the side to be printed facing up. Align the straight edge of the tab
stock against the right edge of the tray, with the tabs to the left.
288
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide
Tray 5 (Bypass)
