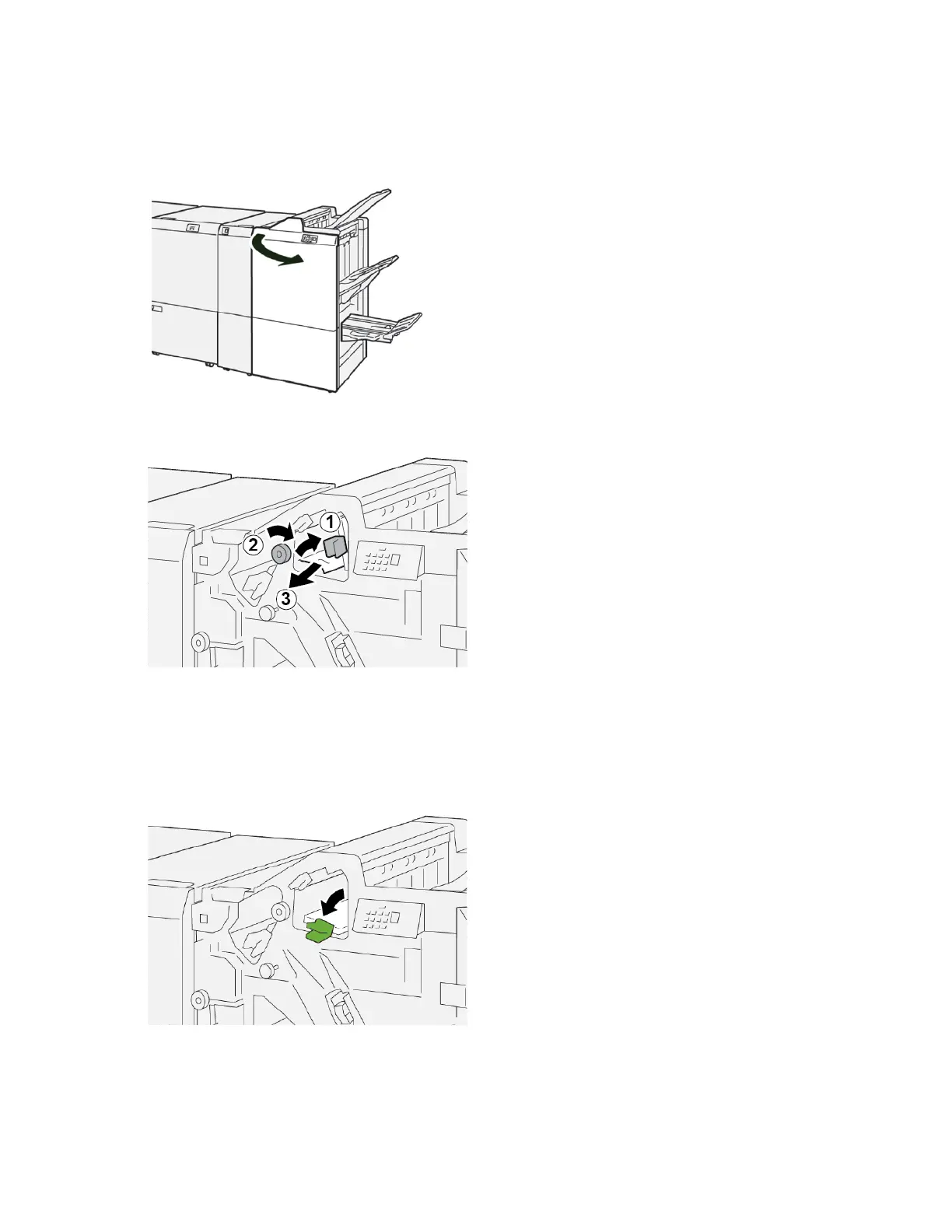

Clearing Paper Jams from Finisher Area E4
1. Open the finisher front cover.
2. To remove the jammed paper, do the following steps:
a. Pull lever 11dd to the right.
b. Rotate knob 11ee clockwise.
c. Remove the jammed paper.
3. Return lever 11dd to the original position.
4. Close the finisher front cover.
Xerox
®
PrimeLink
®
B9100/B9110/B9125/B9136 Copier/Printer User Guide 439
Production Ready Finishers
