Rockwell Automation Publication 1444-UM001D-EN-P - June 2018 103
Configure the 1444 Dynamic Measurement Module Chapter 3
Input Data Page
Use the Input Data Page to specify the measurements to be included in the
module input assembly. The input assembly is constructed to include a fixed
Status Assembly followed by a table that consists of the selected measurements.
See
Assembly Object on page 517.
Measurements must be selected and configured appropriately for the module
to produce them. See Measurement Definition
on page 123.

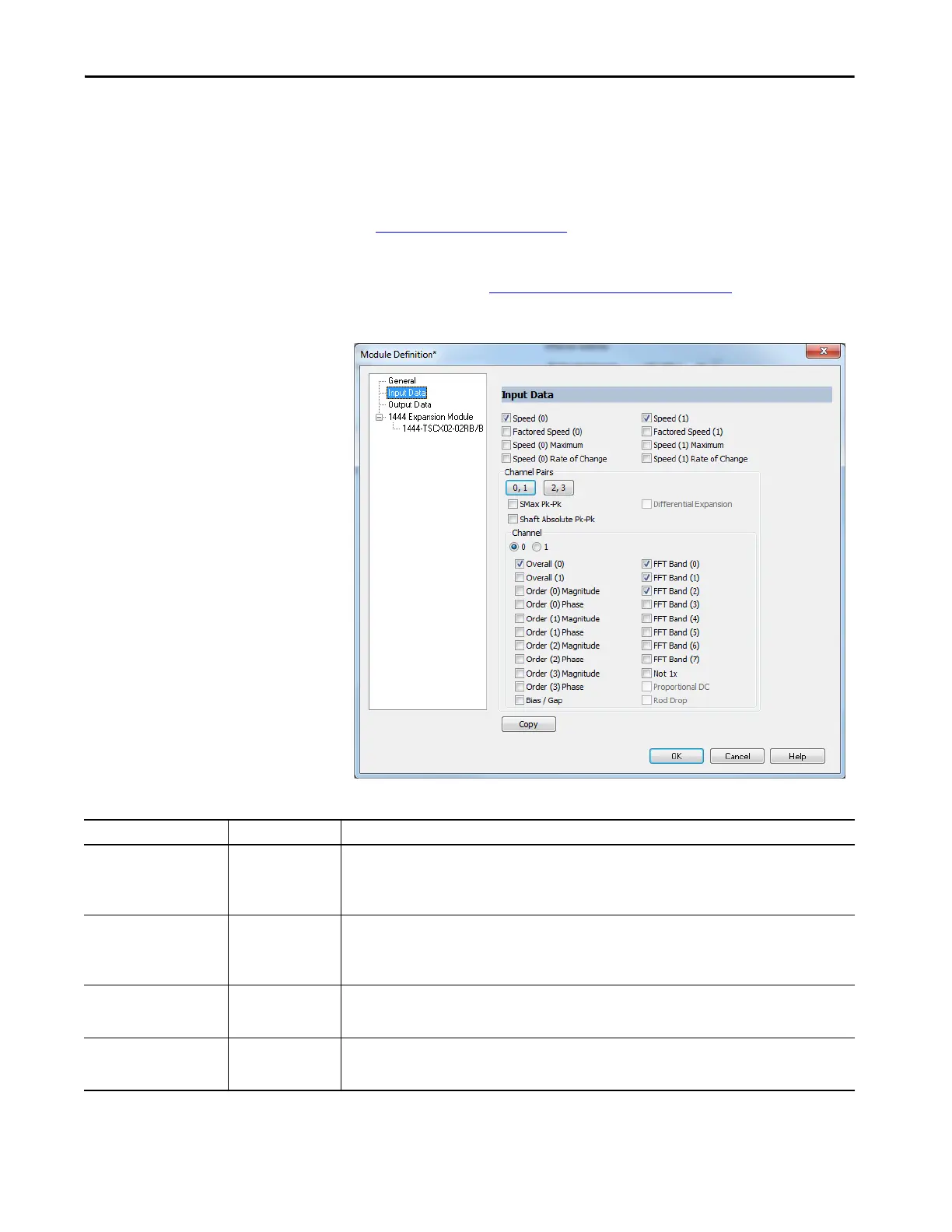

Figure 45 - The Input Data Page
Table 16 - Input Data
Parameter Values Comments
Speed (0) Checked (1)
Unchecked (0)
Check this parameter to include the Speed0 member to the input tag.
The speed is the value that is measured from the TTL input (0 or 1) or from the controller output (I/O), and without
applying any Speed Multiplier that can be configured.
Tag Member: Speed0
Speed (1) Checked (1)
Unchecked (0)
Check this parameter to include the Speed1 member in the input tag.
The speed is the value that is measured from the TTL input (0 or 1) or from the controller output (I/O), and without
applying any Speed Multiplier that can be configured.
Tag Member: Speed1
FactoredSpeed (0) Checked (1)
Unchecked (0)
Check this parameter to include the Factored Speed0 member to the input tag. The Factored Speed is the measured
speed that is multiplied by the Multiplier (specified on the Speed page).
Tag Member: FactoredSpeed0
FactoredSpeed (1) Checked (1)
Unchecked (0)
Check this parameter to include the Factored Speed1 member to the input tag. The Factored Speed is the measured
speed that is multiplied by the Multiplier (specified on the Speed page).
Tag Member: FactoredSpeed1
