72 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018
Chapter 2 Install the Dynamix 1444 Series Monitoring System
A list of appropriate terminals for each channel follows.

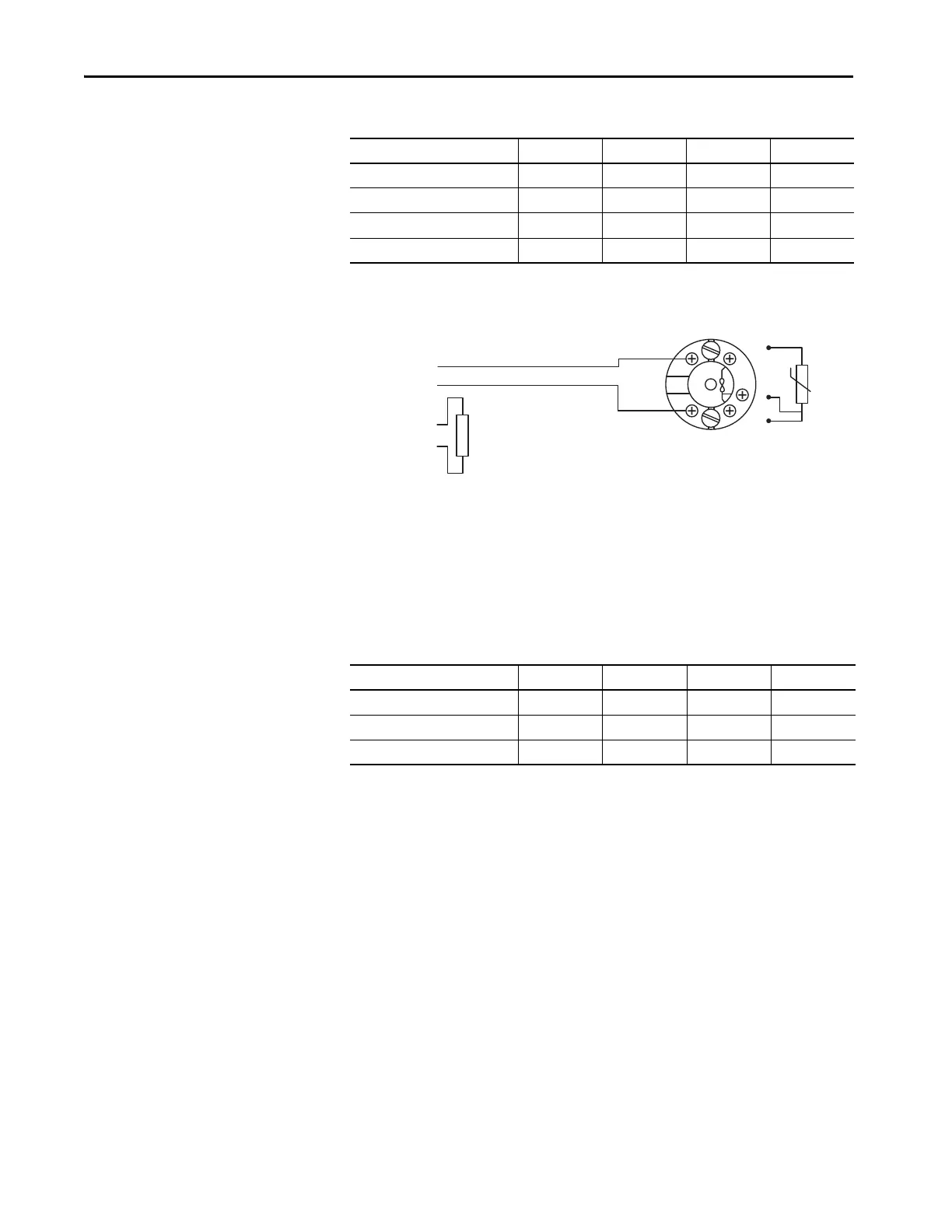

Temperature Transmitter
Configure the channel for a +24V supply. A load resistor is required at the
input terminals to provide the necessary current/voltage conversion. In
addition to resistance value and precision (functional requirements), consider
resistor power rating as it pertains to heating and maximum surface
temperature under normal and fault conditions.
A list of appropriate terminals for each channel follows.
Complete the configuration as follows:
• Configure the sensitivity as: Load R * 16/TX Range (millivolt/
degree)
(1)
• Set an appropriate offset so 4 mA = 0°
Typical Core Designation Channel 0 Channel 1 Channel 2 Channel 3
Acceleration SIG (+) 37- -
Return (-) 48--
Then link these terminals: 1 and 2 5 and 6 - -
Temperature SIG (+) - - 11 15
Typical Core Designation Channel 0 Channel 1 Channel 2 Channel 3
Power 15913
Return (-) 261014
Fit Load Resistor 3 and 4 7 and 8 11 and 12 15 and 16
(1) For slightly higher accuracy, include the effect of the channel input resistance.
