94 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018
Chapter 3 Configure the 1444 Dynamic Measurement Module
Module Configuration
Module configuration consists of all “normal configuration” pages that are
added to the tree below the standard General, Connections, and Module Info
pages.
For the Dynamix™ 1444 Series, much of what is enabled in these pages is
determined based on the selections in Module Definition.
Configuration attributes can be changed without concern for the physical
device definition (connected expansion modules and sensor types) such as
alarm limits, measurement definitions, and trend configuration. In many cases,
the available selections are limited by those attributes, within the available
selections for that type of device.
Expansion Device Definition Dialog
Part of defining a 1444 series module is specifying any connected expansion
modules. It can make sense to specify modules before working through the
other Module Definition dialogs because it defines the physical installation.
The expansion device definition dialog is used to add any expansion modules
that the selected 1444-DYN04-01RA module hosts.
The tool provides controls to select a device, with hardware series number, and
assign an address.

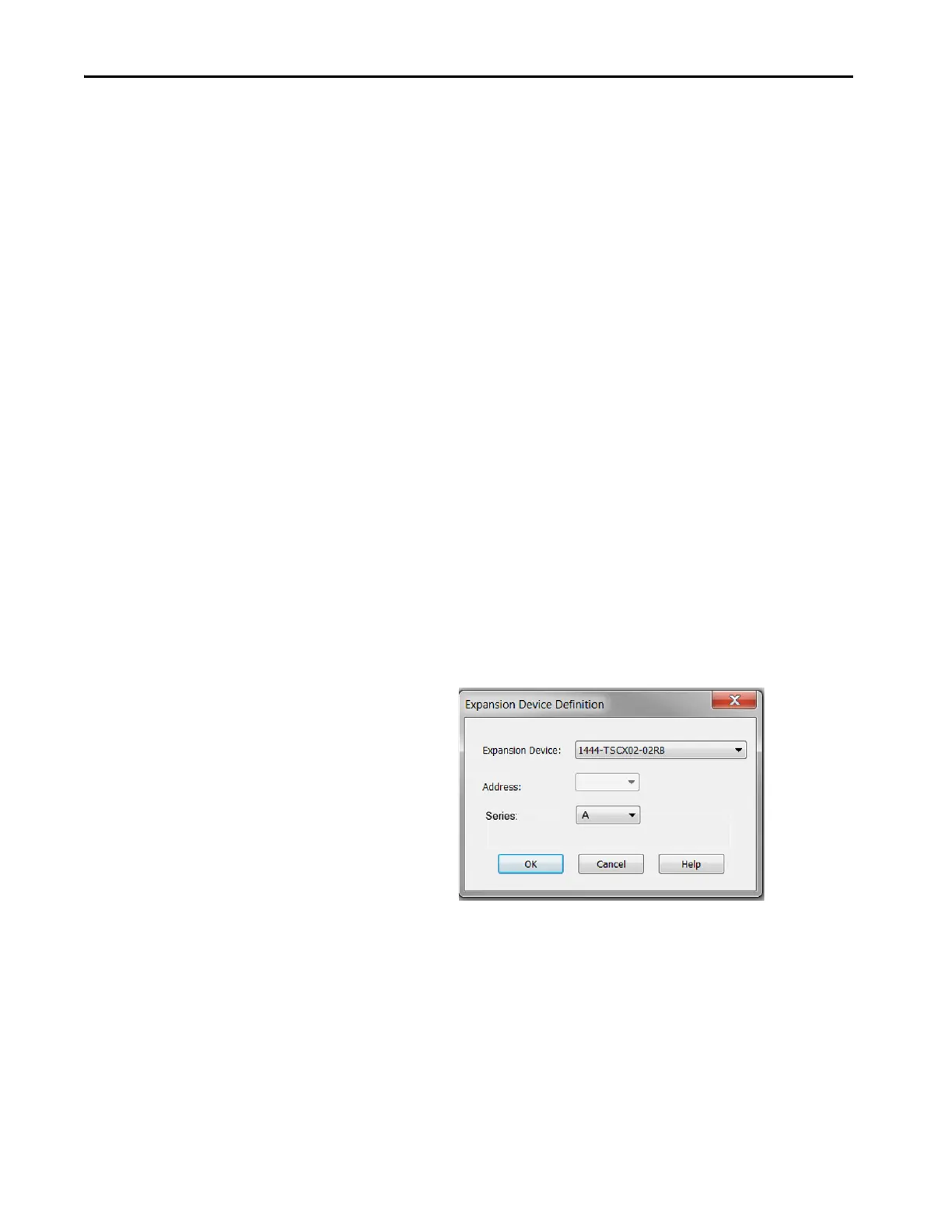

Figure 41 - Expansion Device Definition
From the Expansion Device pull-down menu, select the type of expansion
module to add to the tree, and connect to the selected dynamic measurement
module.
