Chapter 3 Configure the 1444 Dynamic Measurement Module
Time Slot Multiplier Page

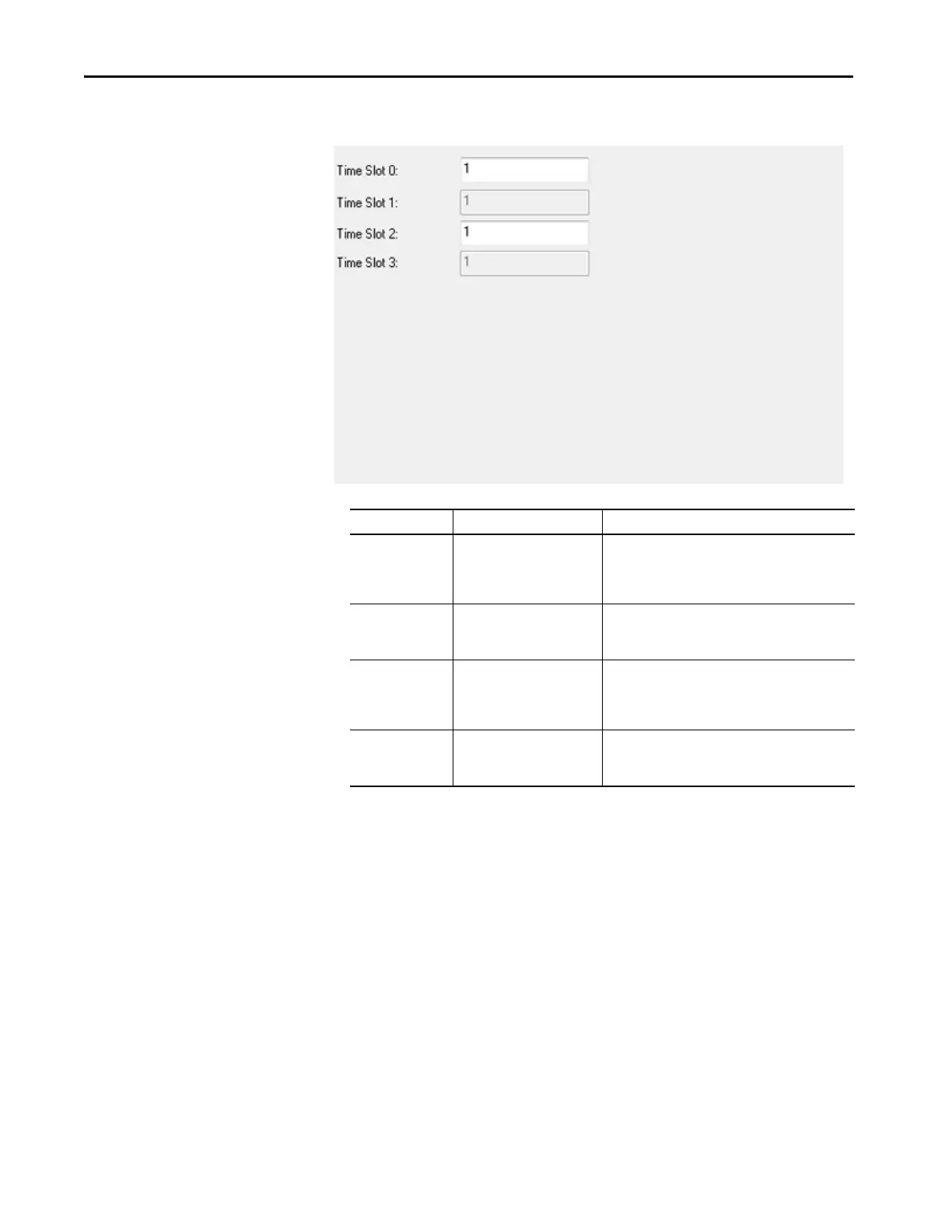

Figure 51 - Configuration for Data Acquisition Time Slot Multiplier
*Multiplexing is allowed only in channel pairs (0 and 1, 2 and 3). Time Slot 1
always equals Time Slot 0 and Time Slot 3 always equals Time Slot 2.
Parameter Values Comment
Time Slot 0 0…255 Enter the Time Slot Multiplier for channel 0 (or channel
pair 0,1).
See Page Overview for a discussion of the Time Slot
Multiplier and examples of how to use it.
Time Slot 1 * 0…255 Enter the Time Slot Multiplier for channel 1.
See Page Overview for a discussion of the Time Slot
Multiplier and examples of how to use it.
Time Slot 2 0…255 Enter the Time Slot Multiplier for channel 2 (or channel
pair 2,3).
See Page Overview for a discussion of the Time Slot
Multiplier and examples of how to use it.
Time Slot 3* 0…255 Enter the Time Slot Multiplier for channel 3.
See Page Overview for a discussion of the Time Slot
Multiplier and examples of how to use it.
