Configure the 1444 Dynamic Measurement Module Chapter 3
General Page
Use the Module Definition General page to specify the high-level application
of the module. This page is also where the general measurement definitions for
the module and each channel are made. The selections that are made here are
used throughout the tool, including on other Module Definition pages and the
configuration pages, to guide further selections.
In configuration the relays are numbered as follows:
• 1444-DYN04-01RA onboard Relay: relay #0
• 1444-RELX00-04RB at address 0: relays #1...4
• 1444-RELX00-04RB at address 1: relays #5...8
• 1444-RELX00-04RB at address 2: relays #9...12

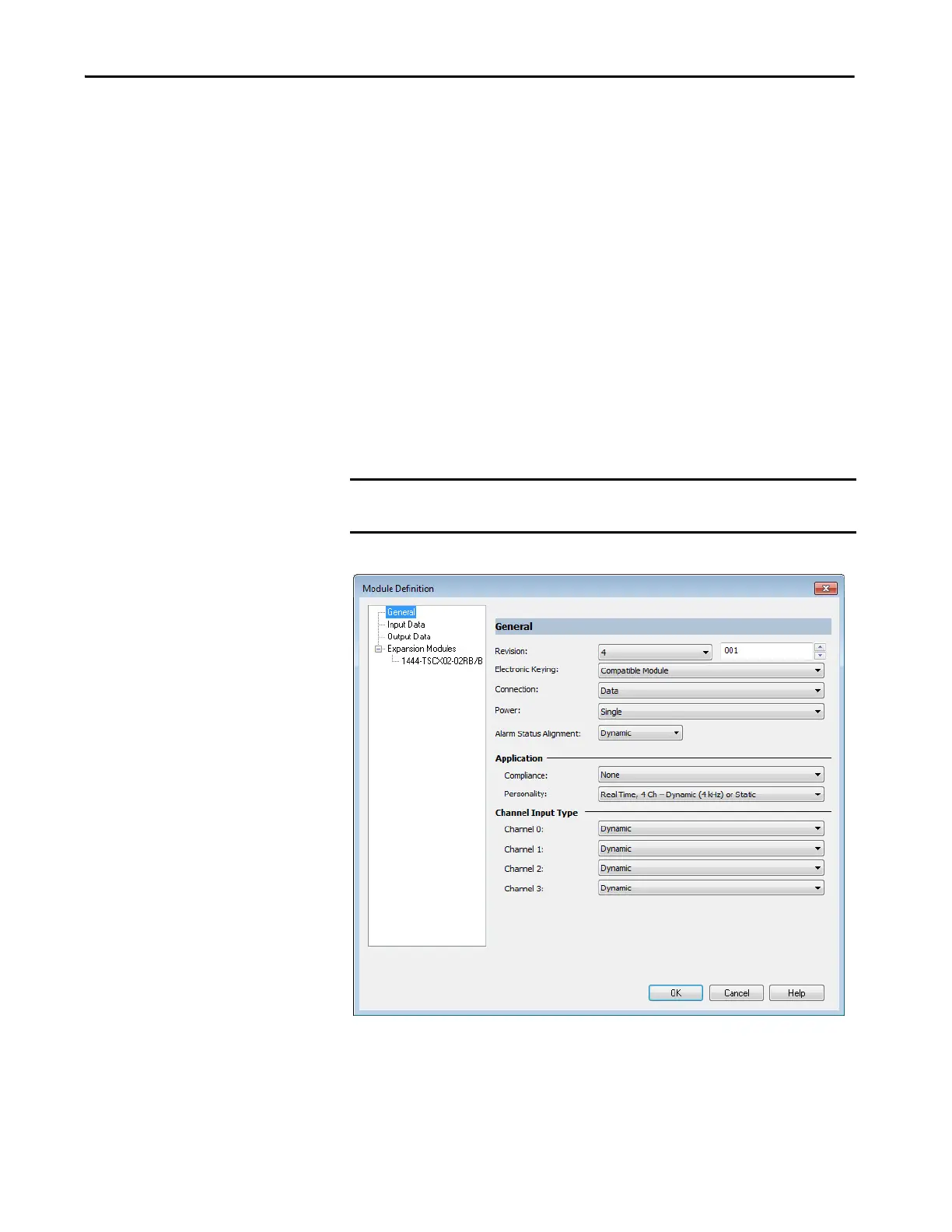

Figure 44 - The Module Definition General Page
IMPORTANT If edits are made to the module configuration, all other configurations are
reset to their default values.
