Chapter 10 Operate the Module

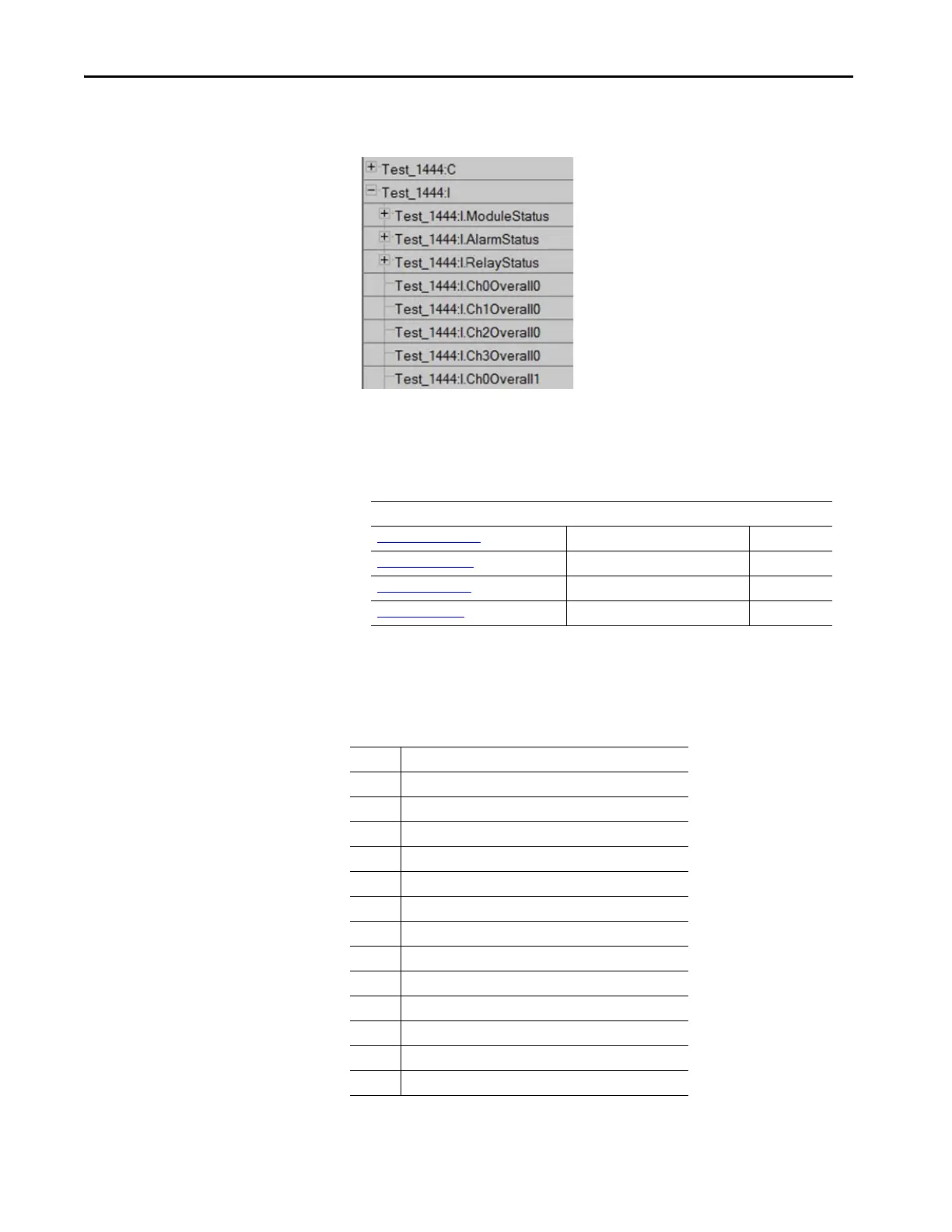

In the Studio 5000® Tag Monitor, the structures are presented similarly as
shown in the following graphic (replacing ‘Test’ with the module name).
Module Status
The structures are defined as follows:
Module Status Structure
The status structure consists of these parameters:
Input Assembly Structure
Module Status Structure ModuleStatus Fixed
Alarm Status Structure AlarmStatus[13] Fixed
Relay Status Structure
RelayStatus Fixed
Input Data Structure Input Data Parameters Variable
DINT AuxiliaryCommunicationProcessor
INT TrendBuffer
INT AlarmBuffer
INT Transient
DINT DSP
INT ChannelTransducer
SINT TachoSpeed
SINT AtoDStatus
INT RelayModule0
INT RelayModule1
INT RelayModule2
INT ExpModuleResponseCodes
INT AOFModule
INT TachoSignalConditionerModule
