Chapter 10 Operate the Module
Status Indicators
Main Module Status Indicators

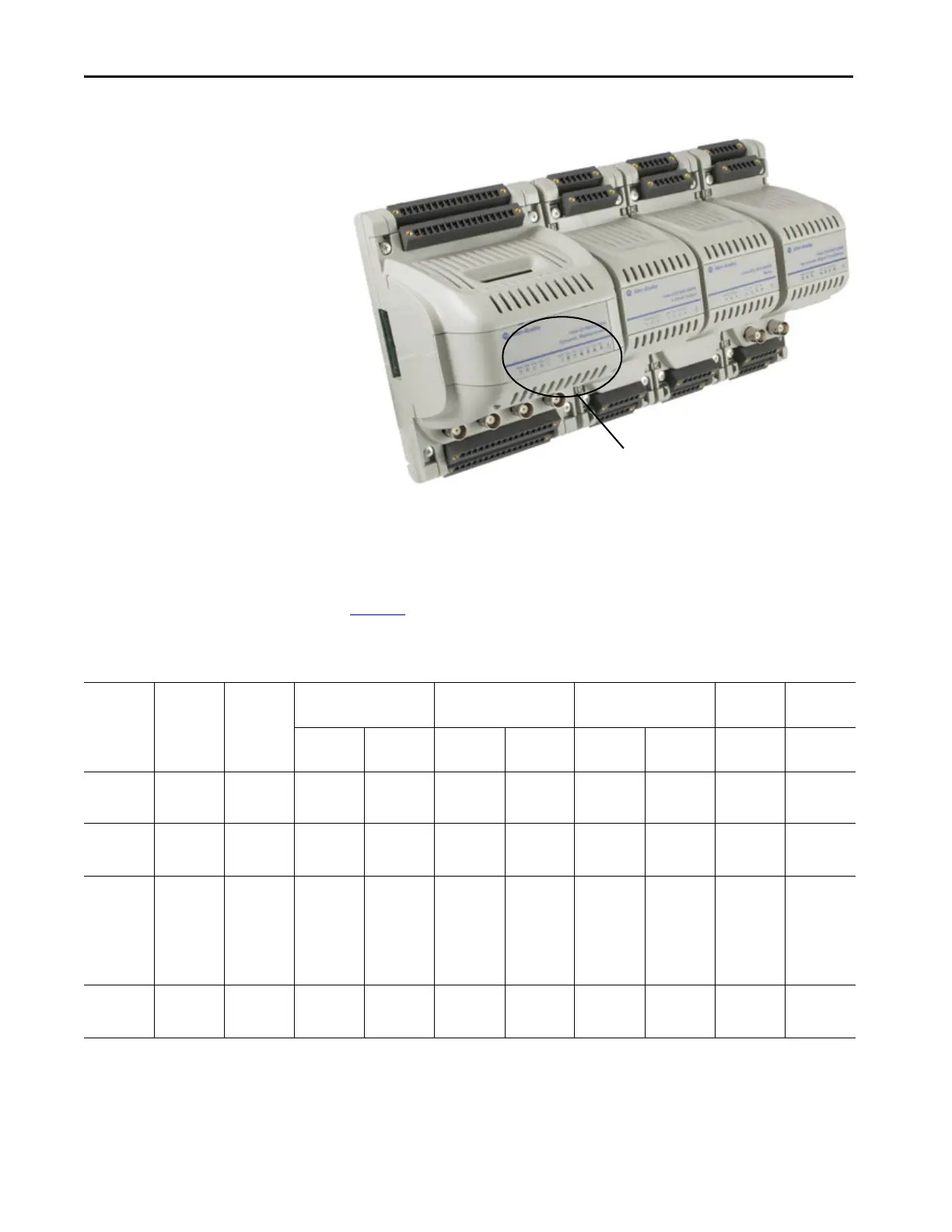

The dynamic measurement module (1444-DYN04-01RA) includes 14 status
indicators. Twelve indicators are on the top of the module and one additional
status indicator on each of the Ethernet connectors.
Tab le 79
provides descriptions of the meaning of the 12 status indicators on the
top of the main module.
Table 79 - DYN Module Status Indicators
Main Module Status Indicators
Status
Indicator
Description OFF Green Blue Red Red/Green Blue/Green
Solid Flashing
(off)
Solid Flashing
(off)
Solid Flashing
(off)
Flashing Flashing
PWR Power status 6.5V power
not OK
6.5V power
OK
———————
RUN Aux
processor run
status
Powered off
or not
running
—Application
running
O/S running Configuratio
n activity
————
MS Module
status
Powered off Operational No
configuration
—During FW,
update
indicates
that update
is being
written to
memory
major fault,
not
recoverable
Duplicate IP
address
Firmware
Update in
process
—
NS Network
status
No network
connection
Connected No
connections
— — Duplicate IP
address
Connection
timeout
Firmware
Update in
process
—
