Rockwell Automation Publication 1444-UM001D-EN-P - June 2018 45
Install the Dynamix 1444 Series Monitoring System Chapter 2
We recommend that you combine the installation of the ribbon interconnect
cables with the process of mounting the terminal bases. This way, the bases can
be clamped to the DIN rail and the interconnect cable can easily be fitted
without subjecting it to excessive mechanical stress.
1. Install and secure the first terminal base.
2. Install the interconnection cable to the first module (right side).
3. Install the second terminal base.
4. Connect the interconnection cable to the second module (left side).
5. Secure the second terminal base.
Verify that the ribbon cable interfaces are properly locked down in the headers.
Access to the connector interfaces is further protected once the main modules
are installed.
Configure the Terminal Bases
The following configuration settings must be made or validated on the
terminal bases before installation of the designated modules.
Configure the Main Terminal Base

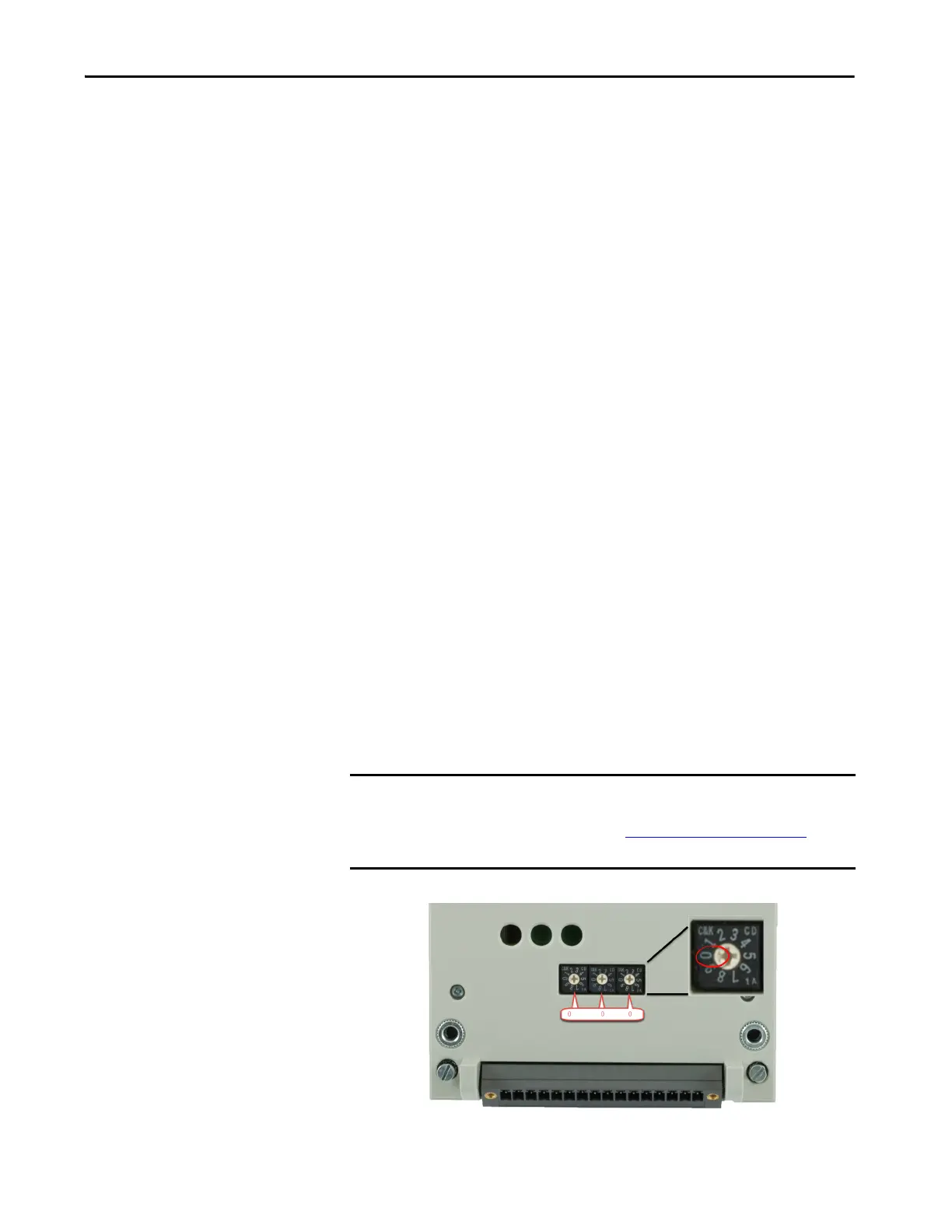

The module terminal base provides three decimal coded switches used to
define the last octet of the TCP/IP address of the module.
The IP address of the main module is composed of four suboctets that are
separated by dots to conform to the IPv4 structure. Each suboctet can be
configured with a number from 1 to 254. As shipped from the factory, the
default IP address of a module is 192.168.1.0.
IMPORTANT Only the final octet of the address can be set via the hardware switches.
When set in hardware, the address is 192.168.1.xx where “xx” is the number
set with the three switches. See Setting the IP Address
on page 253 for more
information.
