48 Rockwell Automation Publication 1444-UM001D-EN-P - June 2018
Chapter 2 Install the Dynamix 1444 Series Monitoring System
TSCX:
• The TSCX module applies a fixed (internal) address that requires the
terminal base switch to be set to 00.
• A DYN module can only host one TSCX module.
• Only one TSCX module can be connected to the same 1444 Series
Expansion bus.
Install the Module
Main and expansion modules are readily fitted to their respective bases, with
correct alignment, and connector engagement supported by the following
features:
• Module coding pin (main module only)
• Base module upper and lower connector guidance
• Module to base connector guidance and alignment
Before installing the module, check that there is no damage (bent pins) on the
main/Expansion module to base connector.

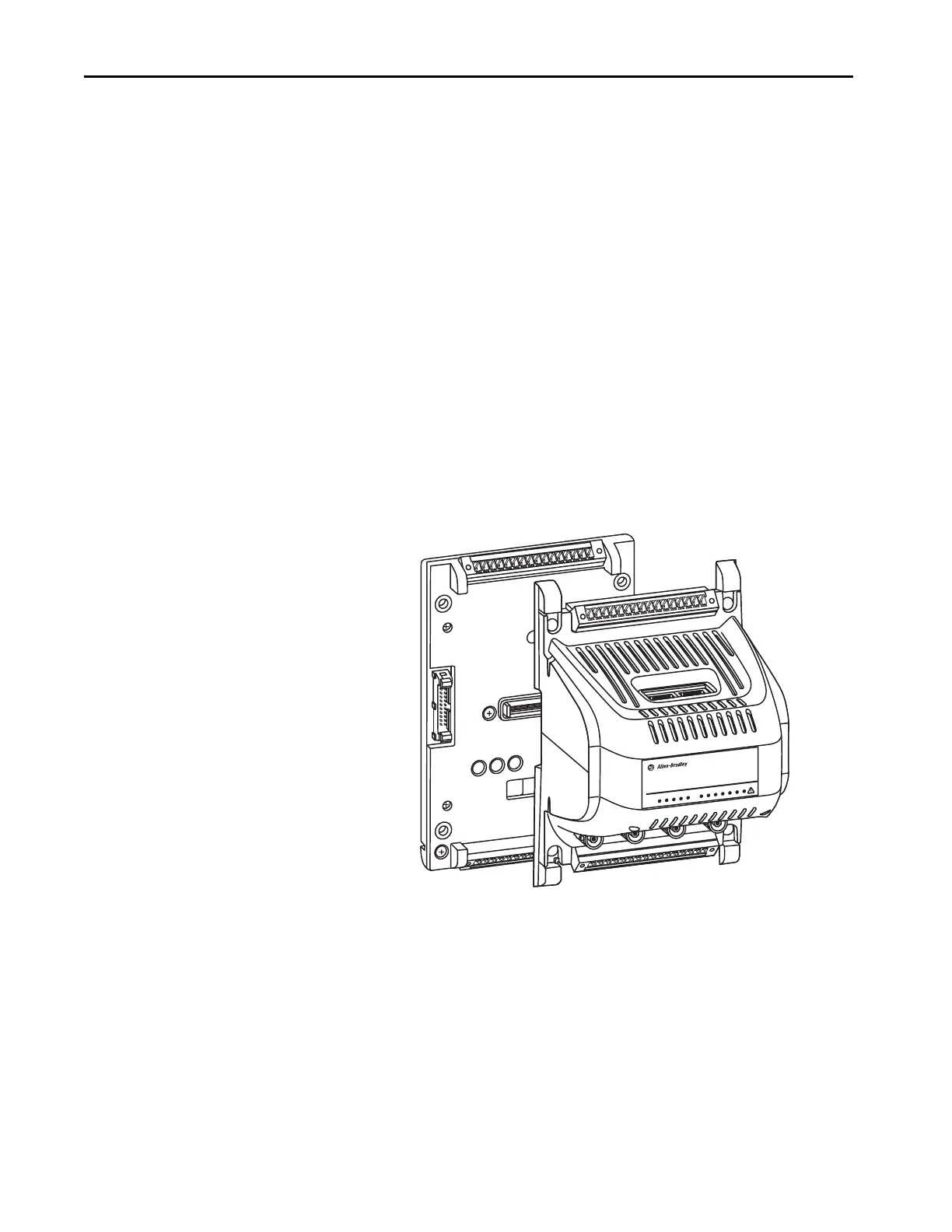

Figure 6 - Module-to-Base Position
Once the main module is fitted onto the base, use the four captive quarter-turn
screws, one at each corner, to secure the module to its base. Use a #1 Phillips
screwdriver to secure the screws.
1
4
4
4
-
DY
N
0
4
-
0
1
RA
R
U
N
PWR
Dy
n
a
m
i
c
M
e
a
s
u
r
e
me
n
t
32480-M
