Install the Dynamix 1444 Series Monitoring System Chapter 2
Installation Overview
Installation of the Dynamix 1444 Series system is based on one or more main
modules and associated expansion modules. The mounting arrangement, from
left to right, can be summarized as follows:
•Main module
–Expansion modules
•Main module
–Expansion modules

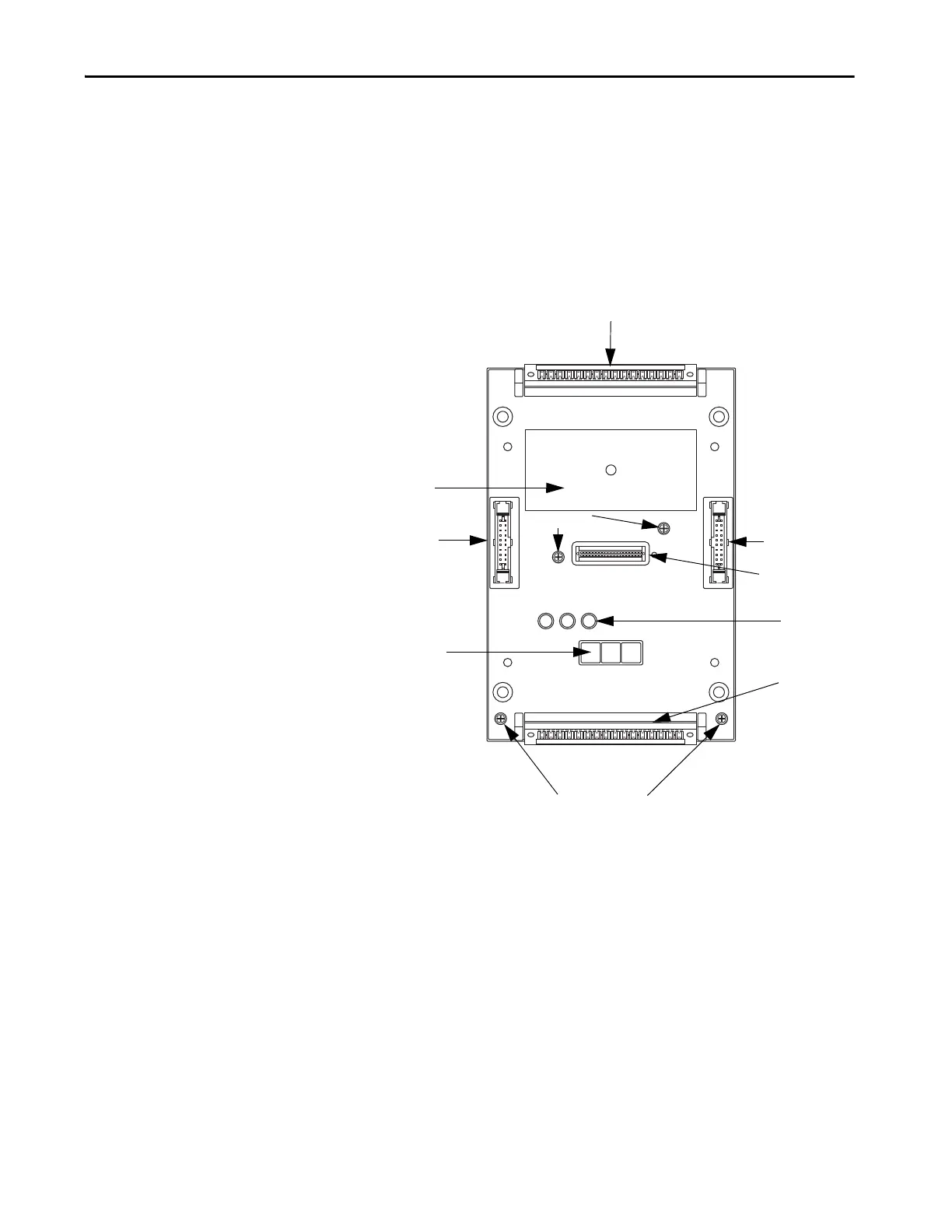

Figure 4 - Main Terminal Base – Overview
32478-M
PID label area
Left EXP bus
connector
MAC address
Bottom set screws
(two ea)
Upper base connector
Right EXP bus
Base-to-module
connector
Electronics
module coding
slots
Lower base
connector
DIN rail set screws
(two ea)
