Operate the Module Chapter 10

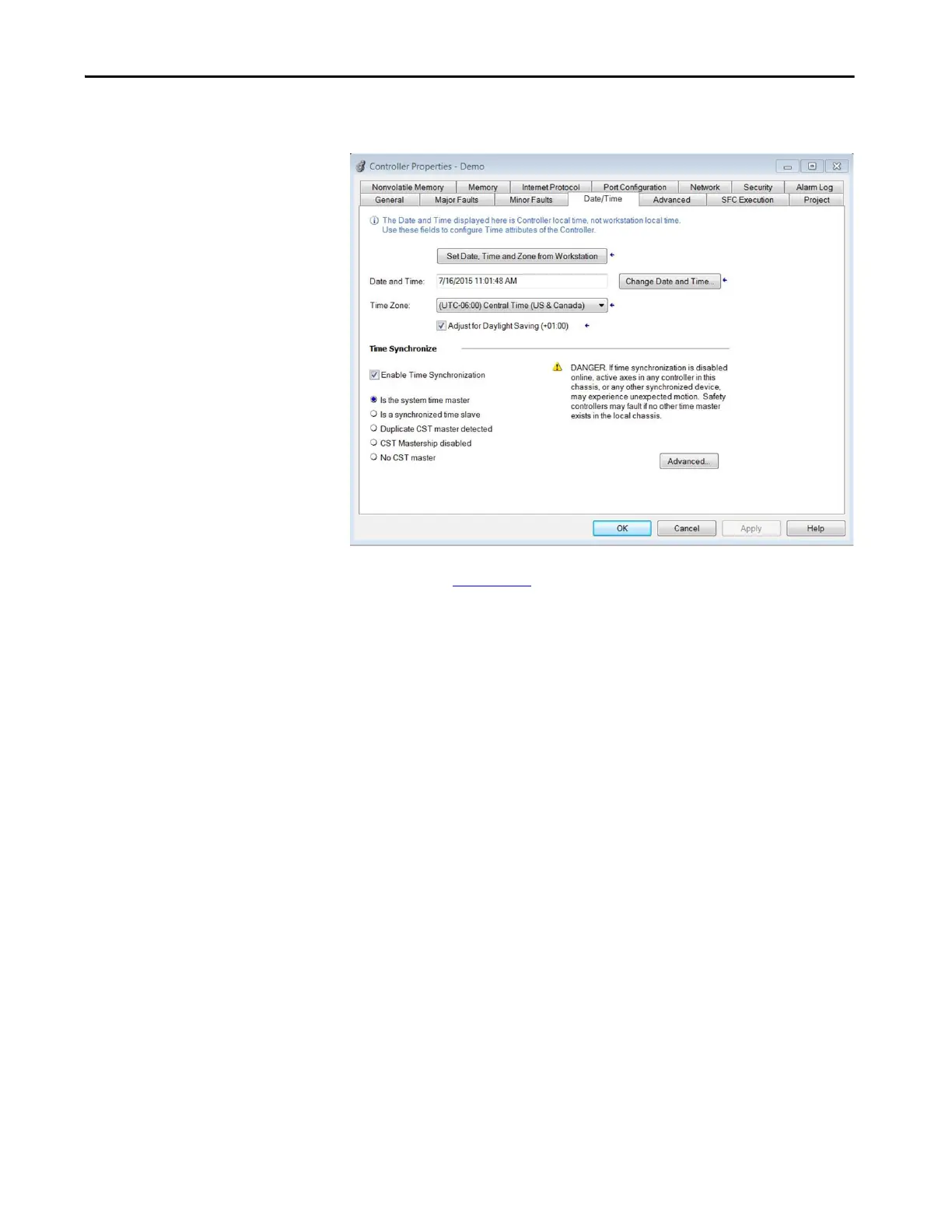

For module time management to operate correctly CIP Sync must be
configured in the host controller.
See publication IA-AT003B
, “Integrated Architecture® and CIP Sync
Configuration”, for further information on how to configure CIP Sync in your
controller.
Module Inputs
The Dynamix 1444 Series Monitor Systems accepts the following inputs.
1444-DYN04-01RA Dynamic Measurement Module
Eight inputs of three types are provided.
Channel Inputs
Four inputs are provided to connect common dynamic measurement sensors
such as eddy current probes, accelerometers, velocimeters, strain, pressure, and
other electrically compatible dynamic sensors.
Transducer Fault Detection
Transducer fault detection is based on bias voltage level, and current if the
sensors are powered eddy current probes.
