Rockwell Automation Publication 1444-UM001D-EN-P - June 2018 111
Configure the 1444 Dynamic Measurement Module Chapter 3
Hardware Configuration
Page

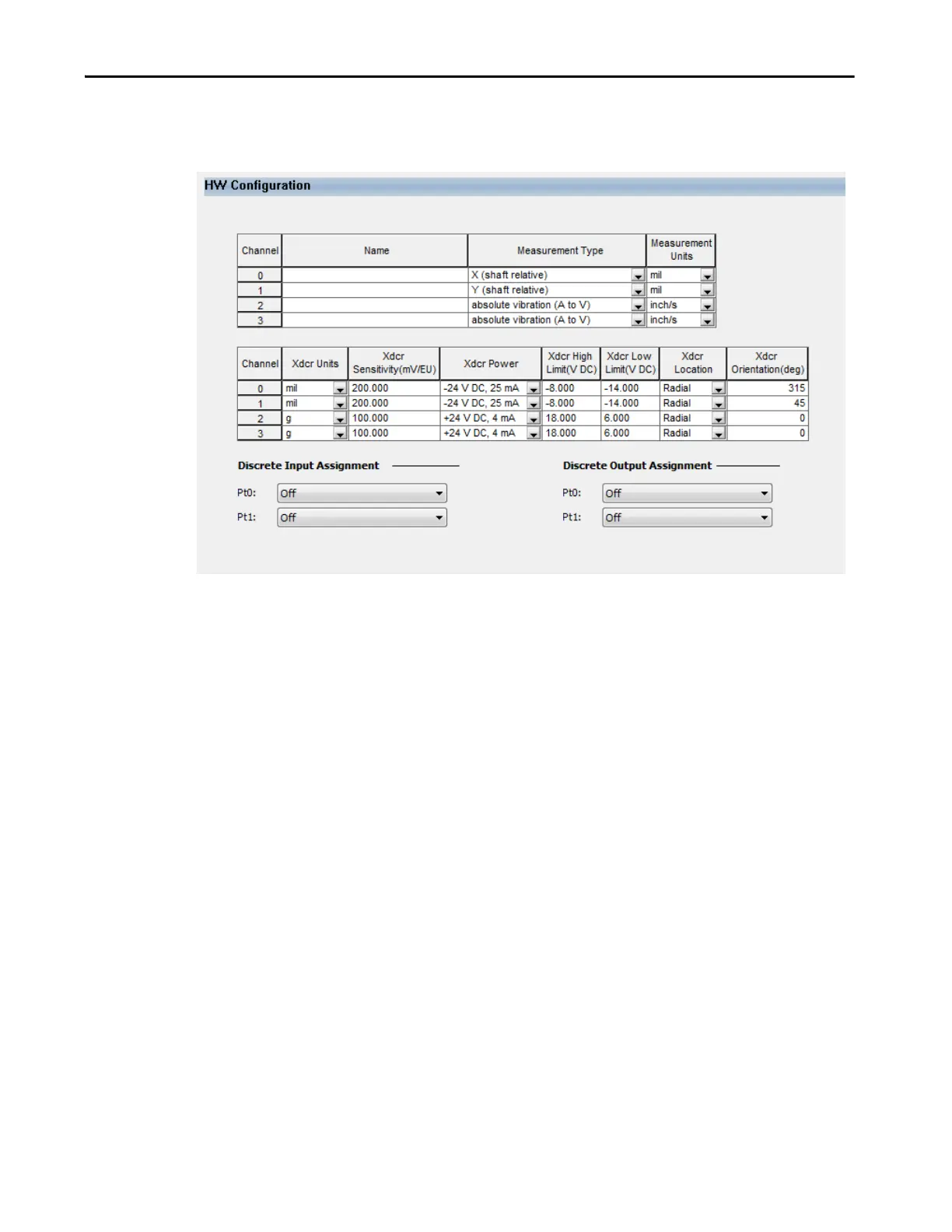

Figure 50 - Hardware Configuration Page
The Hardware Configuration page includes parameters that are associated
with the physical inputs and outputs of the module. The page is divided into
four general sections:
• Channel Definition: Parameters that define the integration and filtering
requirements for each channel.
• Sensor Definition: Parameters that define the sensor that is physically
connected to each channel of the module.
• Digital I/O Definition: Parameters that define how the discrete input
and output channels of the module are used.
TIP The measurement type selection sets appropriate defaults for many of the
parameters in the sensor definition group. So, in most cases, set the
measurement type before making other changes.
