Allen-Bradley E300 User Manual

Rockwell Automation Publication 193-UM015E-EN-P - October 2015 281
Operating Modes Chapter 5

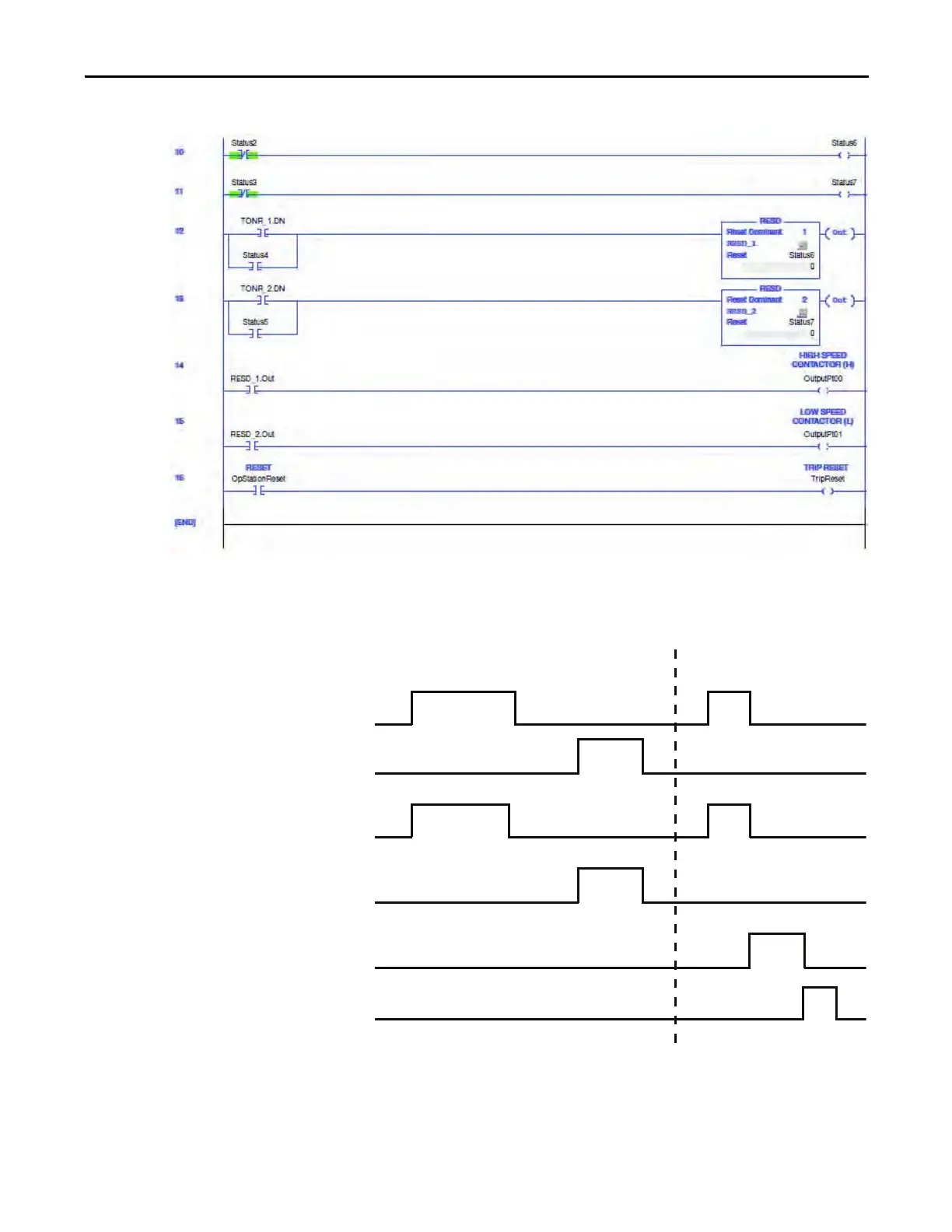

Figure 183 - Two-speed Starter (Local I/O) – Two-wire Control DeviceLogix Program, Part B
Timing Diagram
Figure 184 - Two-speed Starter (Local I/O) – Two-wire Control Timing Diagram
Trip Event
Trip Status
Trip Reset
Slow (Relay 1)
Fast (Relay 0)
Run Fast
Run Slow

Allen-Bradley E300 Specifications

General

Type	Electronic Overload Relay
Mounting	DIN Rail or Panel Mount
Protection Class	IP20
Voltage Range	24…690 V AC/DC
Communication Options	EtherNet/IP, DeviceNet
Protection	Overload, phase loss, ground fault
Operating Temperature	-20°C to 60°C
