Allen-Bradley E300 User Manual

36 Rockwell Automation Publication 193-UM015E-EN-P - October 2015
Chapter 2 Installation and Wiring
100-D115…-D180 Starter Assembly Installation
The starter assembly installation instructions are for use with E300 relay Sensing
Module catalog numbers 193-ESM-___-___-D180

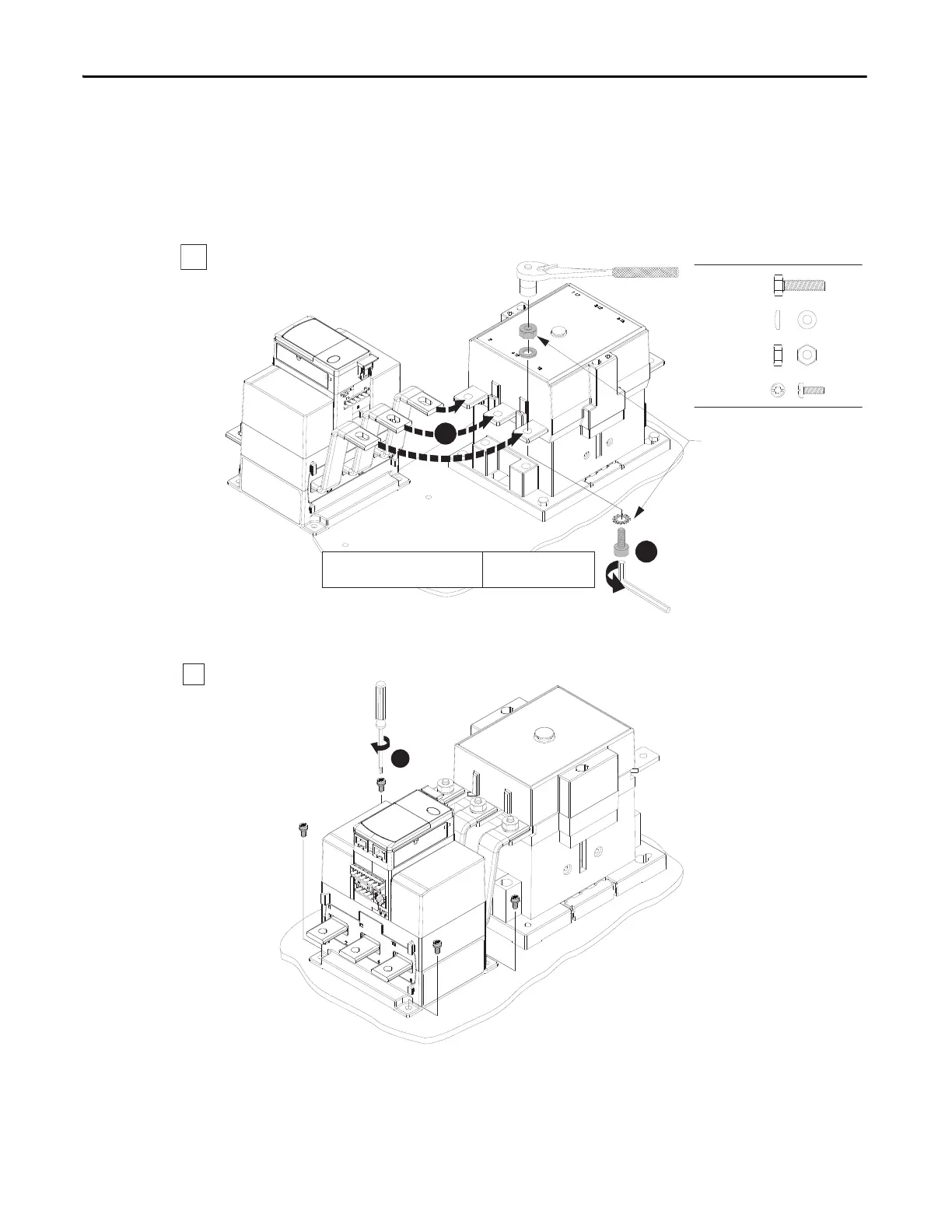

Figure 15 - 100-D115…-D180 Starter Assembly Installation
Supplied with Overload Relay
22 N·m (195 lb-in)
100-D115E, -D140E, -D180E
100-D115, -D140, -D180
1
x 3
x 3
x 3
1
2
Supplied with Contactor
x 4
M8 x 25
M8 Washer
M8 Nut
M5 x 12
3
2
2 N•m
(18 lb-in)
