Chapter 3 Diagnostic Station

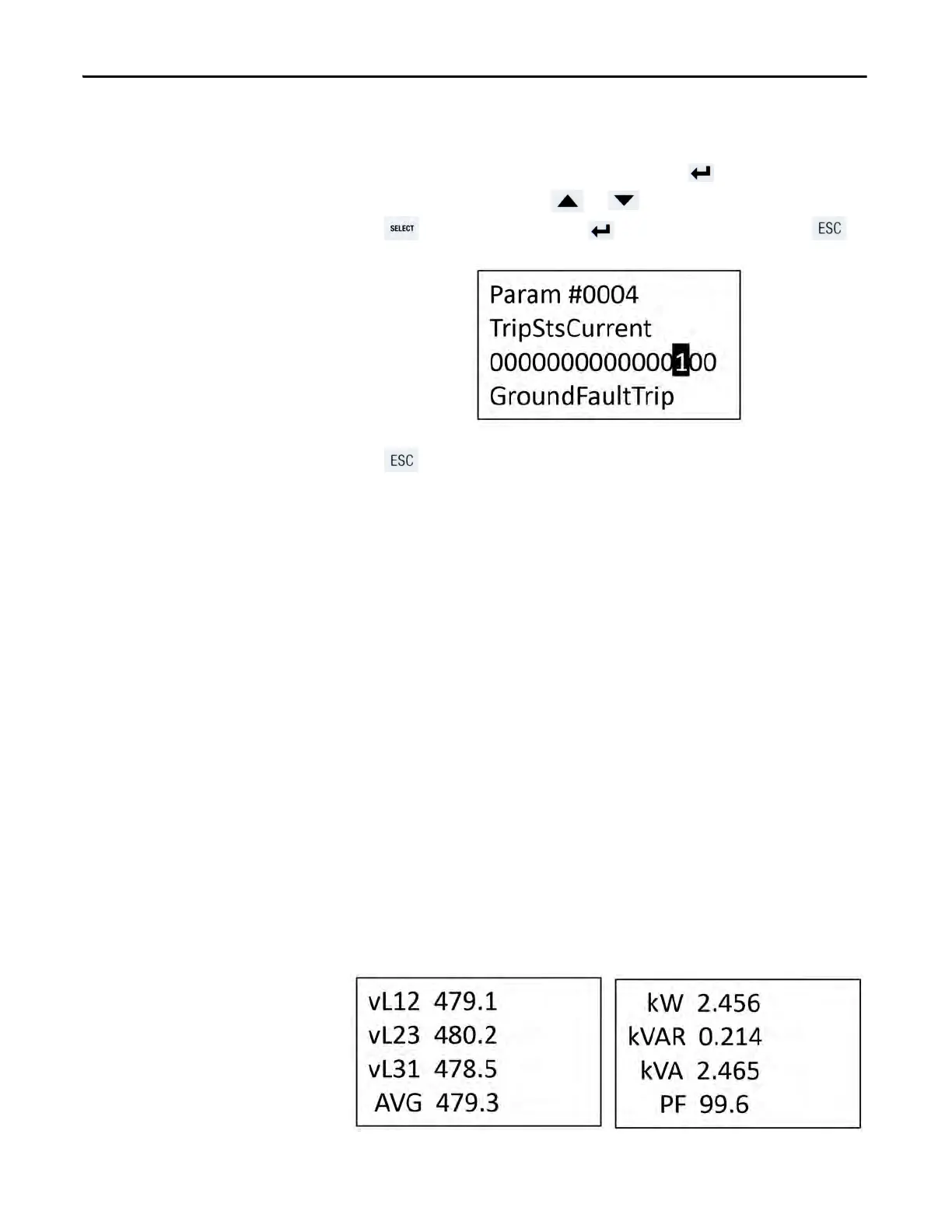

Editing a Bit Enumerated Parameter
When editing a bit enumerated parameter, press the key to view the
description of each bit. Use the or keys to select the new bit value.
Press to edit the next bit. Press to save the new value or press to
cancel the modification and restore the previous value.
Press to return to the navigation menu.
If you do not press any navigation keys for a period that Display Timeout
(Parameter 436) defines, the Diagnostic Station automatically cancels the
modification, restores the previous value, and returns to its programmable display
sequence.
Programmable Display
Sequence
Display Sequence
The Diagnostic Station of the E300 relay sequentially displays up to seven screens
every 5 seconds.
• Three-phase current
• Three-phase voltage
• To ta l p ow er
• User-defined screen 1
• User-defined screen 2
• User-defined screen 3
• User-defined screen 4
The three-phase voltage and total power screens are only included in the
sequence when the E300 relay has a voltage, current, and ground fault current
(VIG)-based Sensing Module.
