Rockwell Automation Publication 193-UM015E-EN-P - October 2015 283
Operating Modes Chapter 5

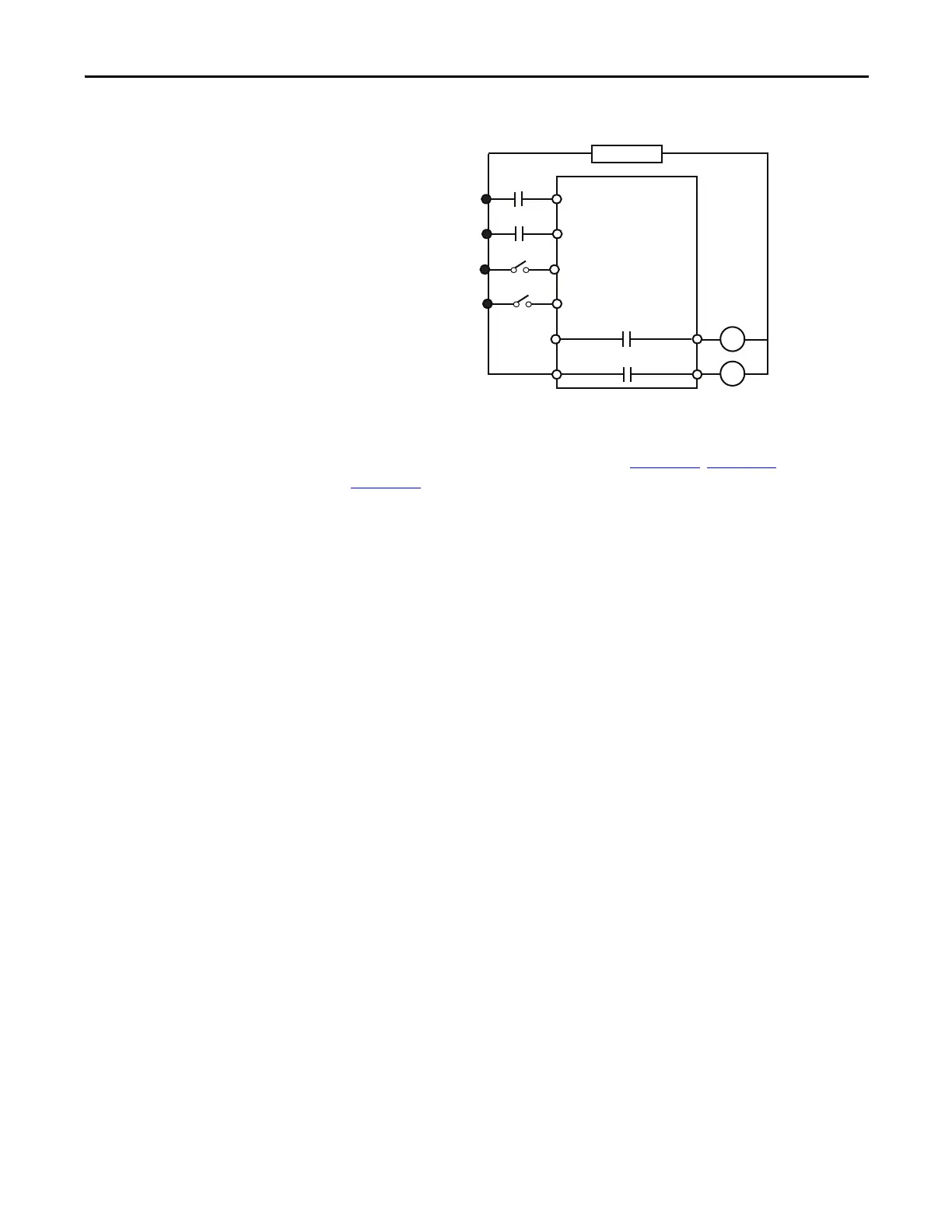

Figure 185 - Two-speed Starter (Local I/O) – Two-wire Control with Feedback Wiring Diagram
DeviceLogix Program
The DeviceLogix program that is shown in Figure 186, Figure 187, and
Figure 188
is automatically loaded and enabled in the E300 on power-up or when
Operating Mode (Parameter 195) is set to a value of 47.
R13 R14
Relay 0
Run Slow
E300
Control Power
R03 R04
Relay 0
Run Fast
Run Fast Aux
IN 0
Run Slow Aux
IN 1
IN 2
Run Fast/Stop
IN 3
Run Slow/Stop
To Next Page
