Rockwell Automation Publication 193-UM015E-EN-P - October 2015 305
Operating Modes Chapter 5

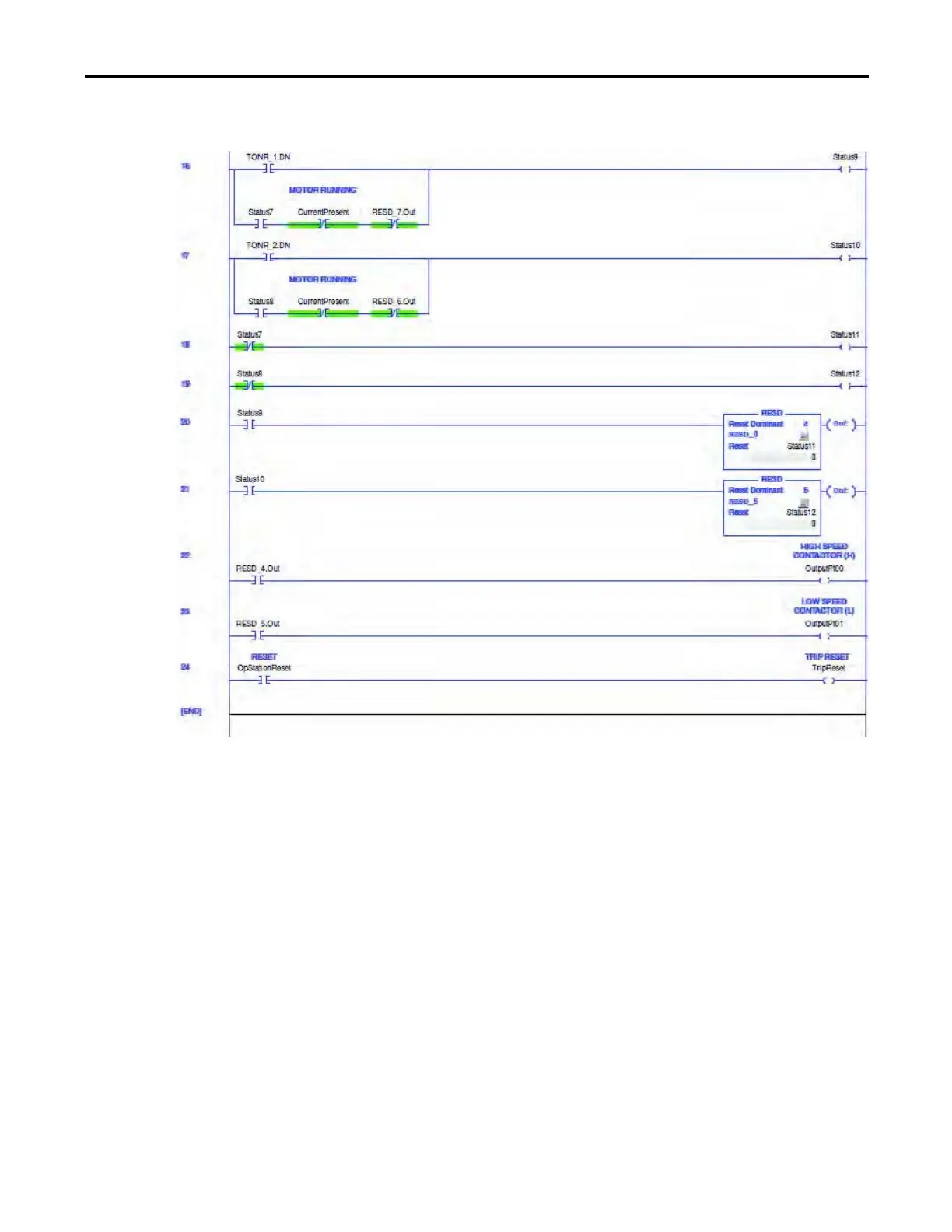

Figure 207 - Two-speed Starter (Network & Local I/O) – Three-wire Control DeviceLogix Program,
Part C
Two-Speed Starter (Custom)
The E300 relay’s Operating Mode Two Speed Starter (Custom) (Parameter 195 =
53) operates as a two-speed starter with two output relays that are assigned as
normally open control relays. The Two-speed Starter (Custom) operating mode
is used for applications that want customized DeviceLogix programs. This
operating mode requires minimal configuration rules.
Rules
1. Available for Control Module firmware v5.000 and higher.
2. Set two of the Output Ptxx Assignments (Parameters 202…204) to
Contr
ol Relay.
3. Overload Trip must be enabled in TripEnableI (Parameter 183).
